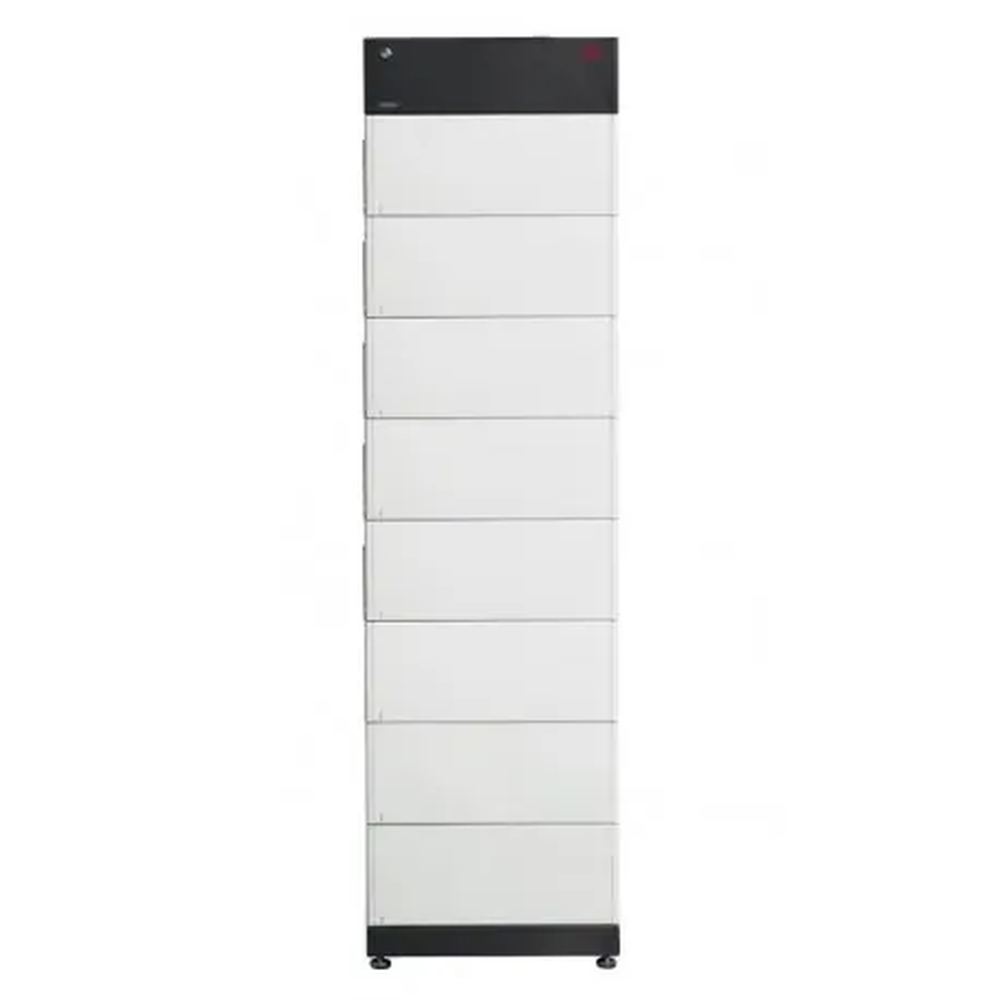

BYD Battery Box Premium HVM 22.1

BYD Battery Box Premium HVM 22.1 kWh Lithium Battery Tower - CEC Approved

$15,299.00
 More payment options

Notify me when back in stock

Warranty

Click Here To View BYD Battery-Box Premium HVM Lithium Battery WARRANTY

Manual

Click Here To View BYD Battery-Box Premium HVM Lithium Battery MANUAL

Specifications

Click Here To View BYD Battery-Box Premium HVM Lithium Battery DATASHEET

Click Here To View COMPATIBLE INVERTERS

The BYD Battery-Box Premium HVM 22.1 is a modular IP55 rated battery system that can be scaled up to meet your energy needs.
This package includes 8 battery modules and a battery control unit (BCU) with a base.
Save $$$ on component pricing!

Note: HVM model batteries should be specified for Fronius Gen 24 Inverters requiring single tower battery capacity over 10.2 kWh (max compatible storage capacity for HVS model).

This is a very heavy item, free shipping to the nearest freight depot or unloading facilities is required, otherwise, tailgate fees may apply. Please contact us for more information.

Clean Energy Council (CEC) approved battery (what is this?)

Each Battery-Box Premium HVM is composed of 3 to 8 HVM battery modules that are connected in series to achieve a usable capacity of 8.3 to 22.1 kWh. By directly connecting up to three identical Battery-Box Premium HVMs in parallel, you can achieve a maximum capacity of 66.2 kWh. And if you need even more storage capacity, you can easily scale up by adding more HVM modules or parallel HVM stacks later.

When combined with the Fronius GEN24 Plus hybrid inverter, the BYD Battery-Box Premium delivers high charging and discharging power, allowing you to optimally use and store the energy produced by your own PV system. This power remains available even when the sun is no longer shining, ensuring an increased rate of self-consumption and greater independence from the public grid.

The BYD HVM battery system is ideal for smaller commercial plants that require high storage capacities. You can implement up to three battery storage systems in parallel operation for even greater storage capacity. With Fronius Solar.web, you can easily monitor both Fronius inverters and BYD battery storage systems (HVS/HVM) at any time for an overview of all the relevant data.

BYD HVM is also compatible with other hybrid inverter brands to suit varying capacities including Selectronic, Goodwe, Victron, Sungrow and more.

BYD HVM Main Features:

  • Capable of High-Powered Emergency-Backup and Off-Grid Functionality
  • Highest Efficiency Thanks to a Real High-Voltage Series Connection
  • The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use
  • Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle and Power
  • Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters
  • Two Distinct Modules to Cover the Complete Range of System Sizes
  • Highest Safety Standards like VDE 2510-50
  • 10 Year Warranty
