ZJBENY 3-1 Solar PV Combiner Box - AS/NZS 5033:2021 compliant

$408.00

Customers please Note:

Shipping is free on most orders within Australia; however, some heavy or bulky items may require specialised freight at additional cost. While we aim to keep shipping free wherever possible, regional and remote areas may attract additional charges depending on location and freight requirements.

For tailored quotes or to confirm shipping costs, please get in touch.
For more details on shipping and delivery, please click here.

Notify me when back in stock

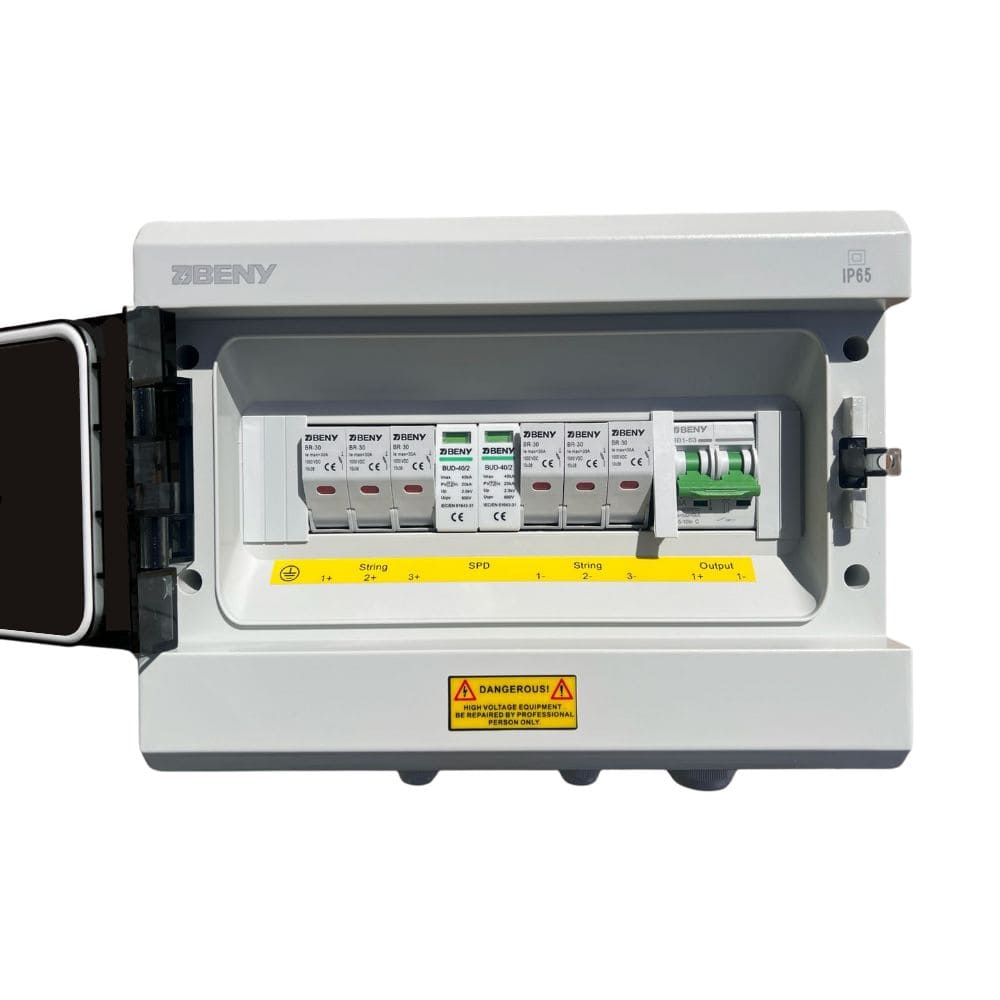

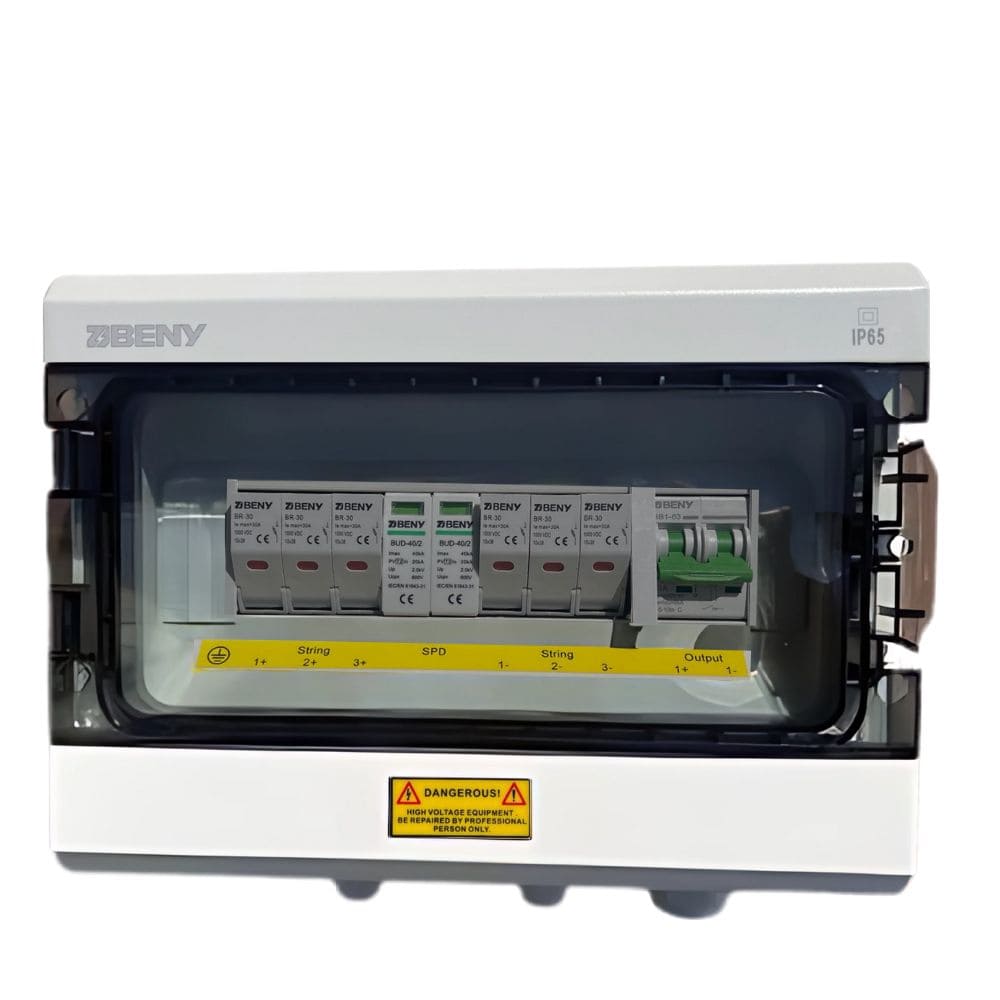

The ZJ Beny PV combiner box protects solar equipment against overcurrent, surge events and electrical faults- helping extend the lifespan of your solar system and improve overall reliability whilst ensuring compliance with AS/NZS 5033:2021

With 3 string PV handling at up to 1000V DC, IP65 rated enclosure with 2 pole input fuses, SPD arrestor & 63A output circuit breaker, The ZJ Beny 3-1 PV combiner ensures safety and convenient isolation of PV solar arrays.

Don't get caught out installing cheap, non-compliant combiner boxes from other online sellers.

Main Features

String Protection: Built-in BR-30 fuse holders with included 20A, 1000V DC fuses, safeguard each pole of the PV strings from overcurrent.
Surge Protection: Integrated BUD-40/2 Type 2 SPD provides up to 40 kA discharge capacity, protecting downstream equipment of solar arrays from lightning and transient surges.
Safe Isolation: Equipped with a BDB1-63 DC breaker (63A, 2-pole) for quick and secure system shutdown during maintenance or emergencies.
Weatherproof Build: IP65-rated enclosure ensures long-lasting performance in outdoor conditions, resisting dust, moisture, and environmental stress.
Easy Installation: Compact DIN-rail design with pre-configured connections simplifies setup, reduces wiring complexity and saves time on-site.
Versatile Use: Suitable for residential, commercial, and off-grid PV systems, supporting stable and safe solar power distribution.

Quick Specs

  • Strings: 3 PV inputs
  • Max Voltage: 1000V DC
  • Fuse Protection: BR-30, 30A / 1000V DC (IEC 60269)
  • Surge Protection: BUD-40/2, 40kA, Type 2 (AS/NZS 1768 (Lightning Protection) and IEC 61643 (Surge protective devices)
  • Breaker: BDB1-63, 63A / 2P DC (AS/NZS 60947.2)
  • Enclosure: 12 pole IP65, weatherproof polycarbonate
  • Mounting: DIN-rail internal components
  • Dimensions: 310 × 210 × 110 mm
  • Certifications: CE, RoHS.
  • Weight: 3 kg
