BLUETTI EP760 7.6kW Single Phase All in One Residential Energy Storage System (ESS)
- Description
- Specifications
- Manual
- Warranty
- Find my kit
- Why Buy from Buzz?
- Shipping
- Disclaimer
The BLUETTI EP760 7.6kW Single Phase All in One Residential Energy Storage System (ESS) is a modular CEC approved home energy storage solution designed to deliver reliable power while lowering electricity costs. With a 7,600W output and support for up to 9,000W of photovoltaic (PV) input, it is capable of powering a variety of household appliances.
Note: This is a very heavy item, free shipping to the nearest freight depot or unloading facilities required, otherwise tailgate fees may apply. Please Contact us for more information.

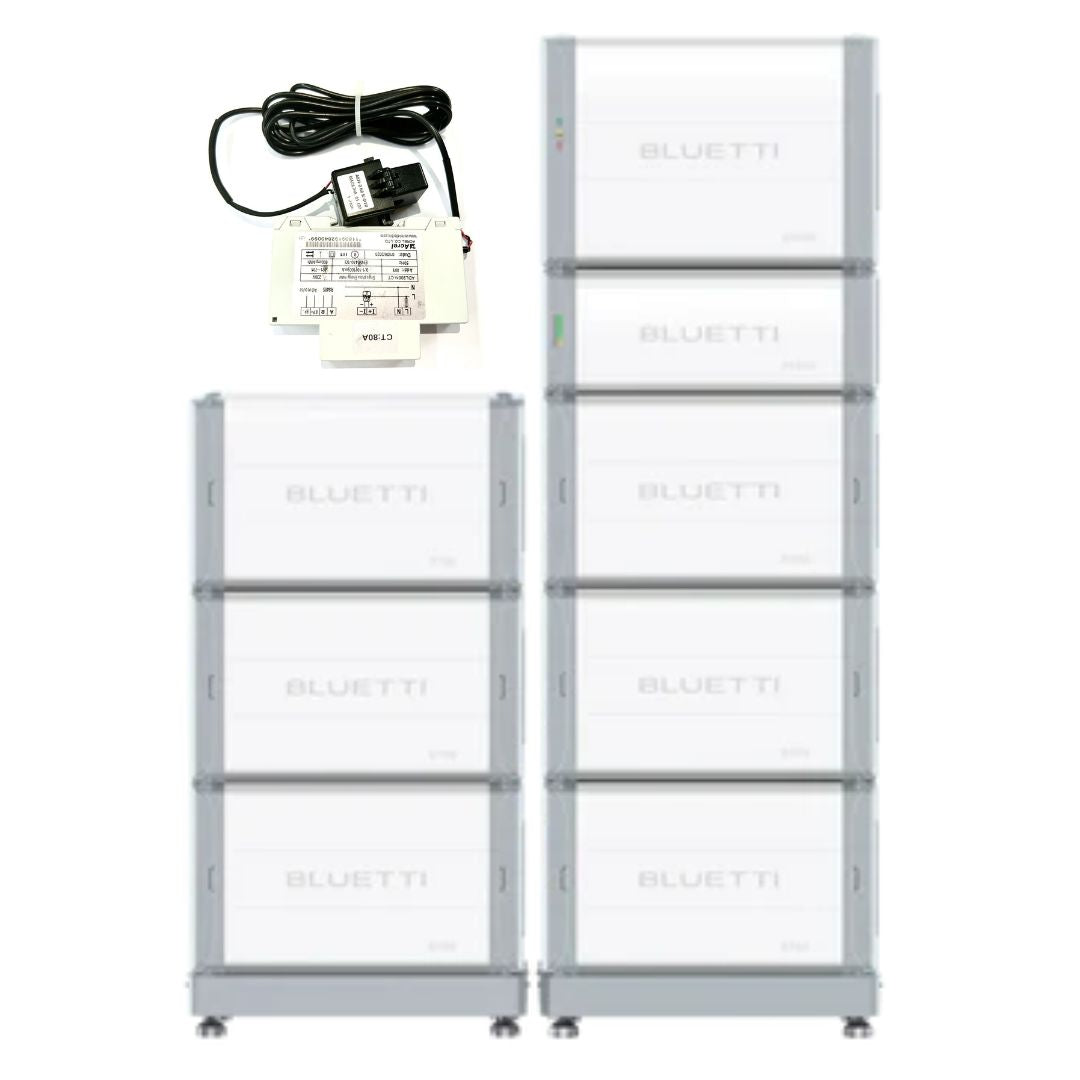

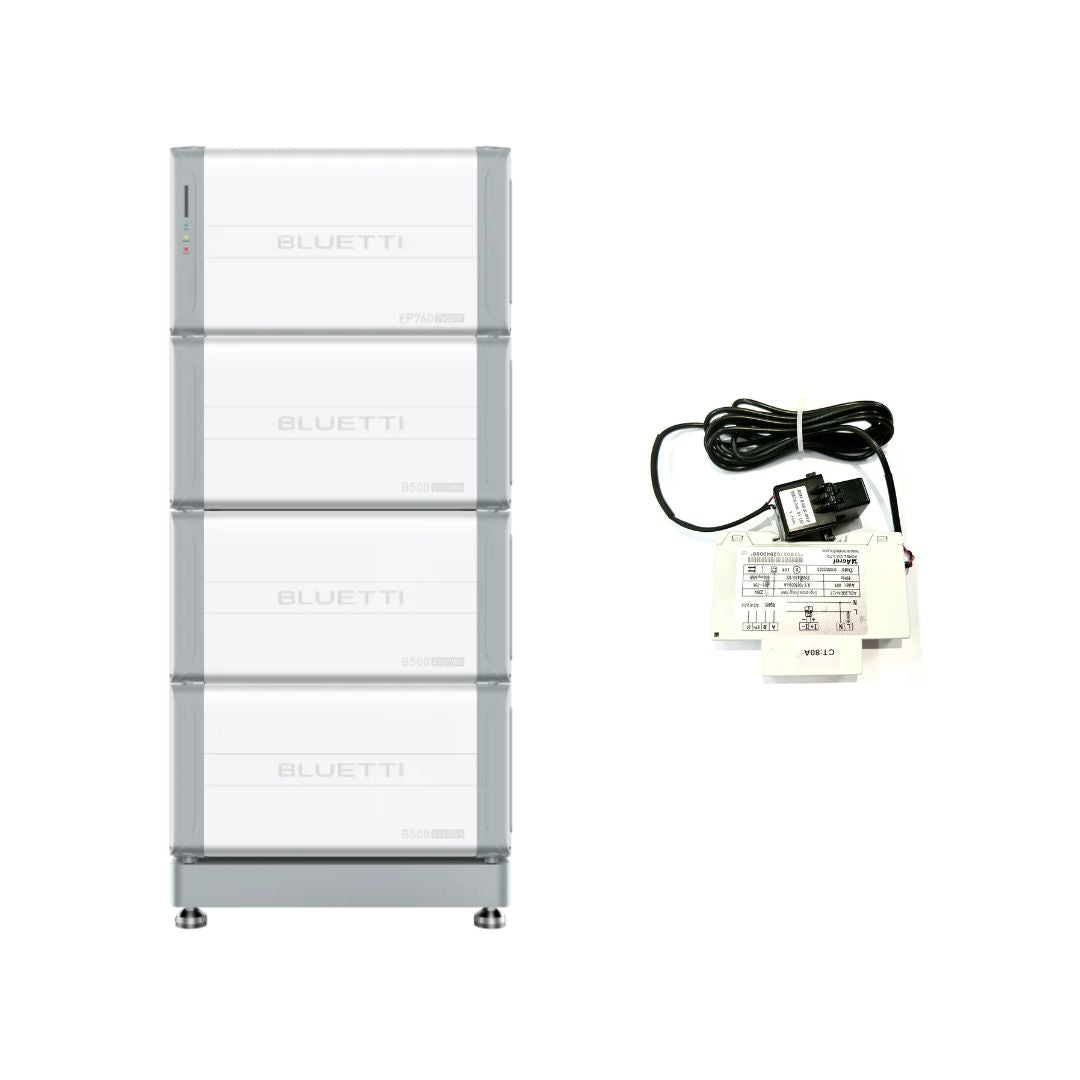

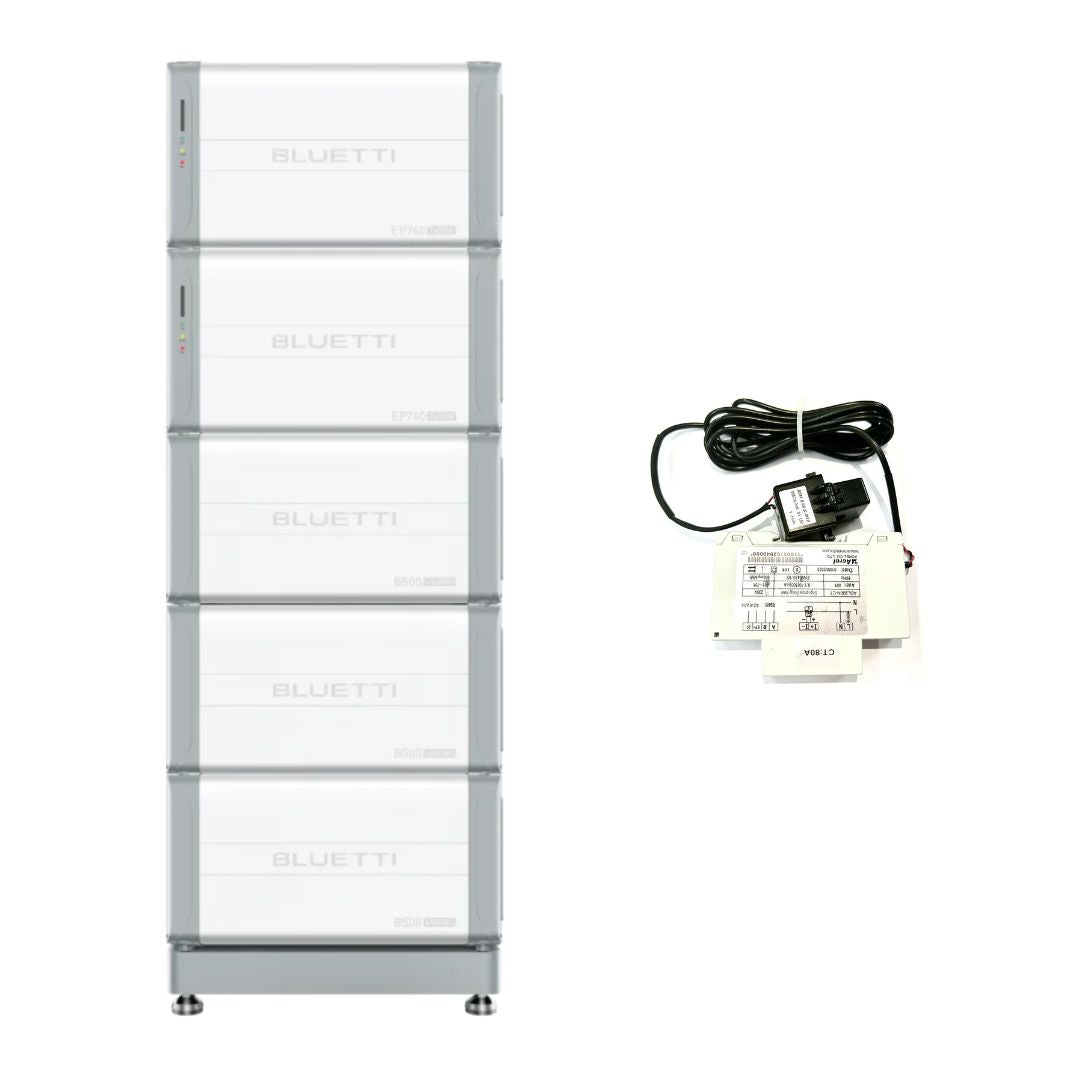

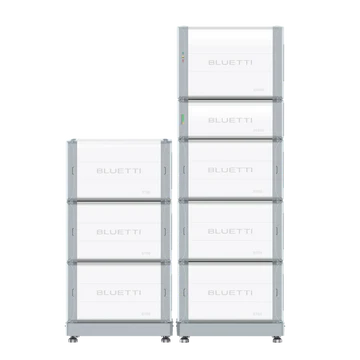

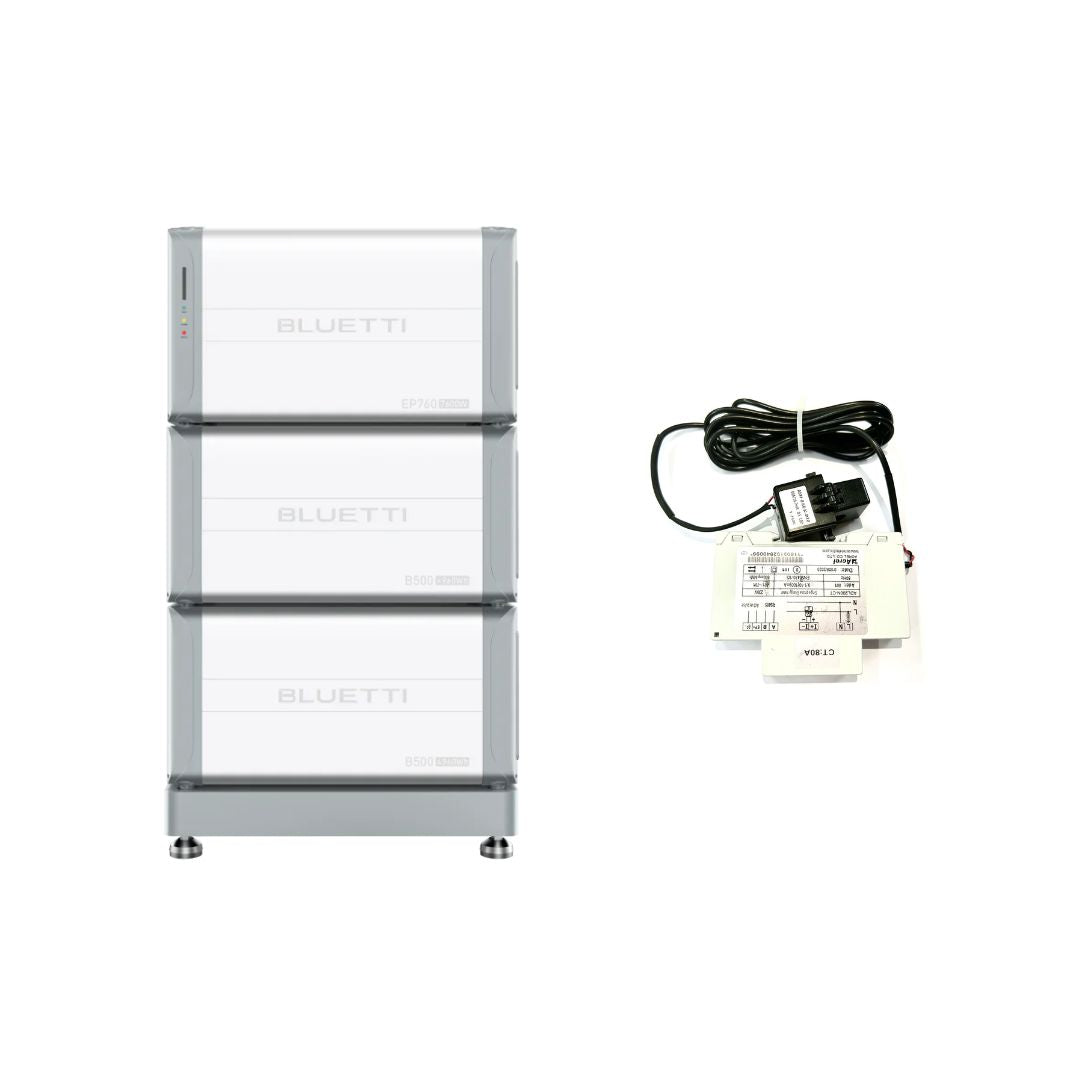

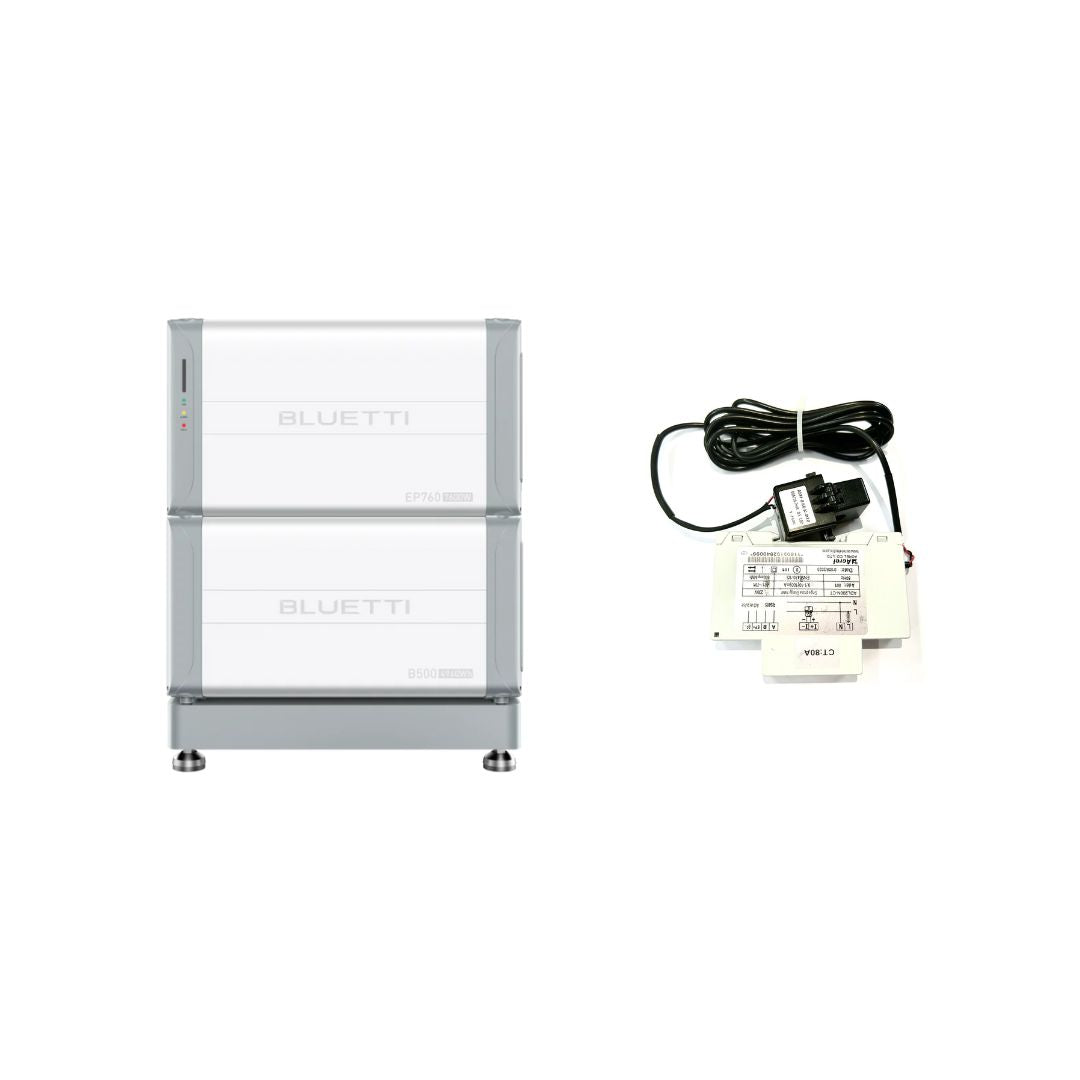

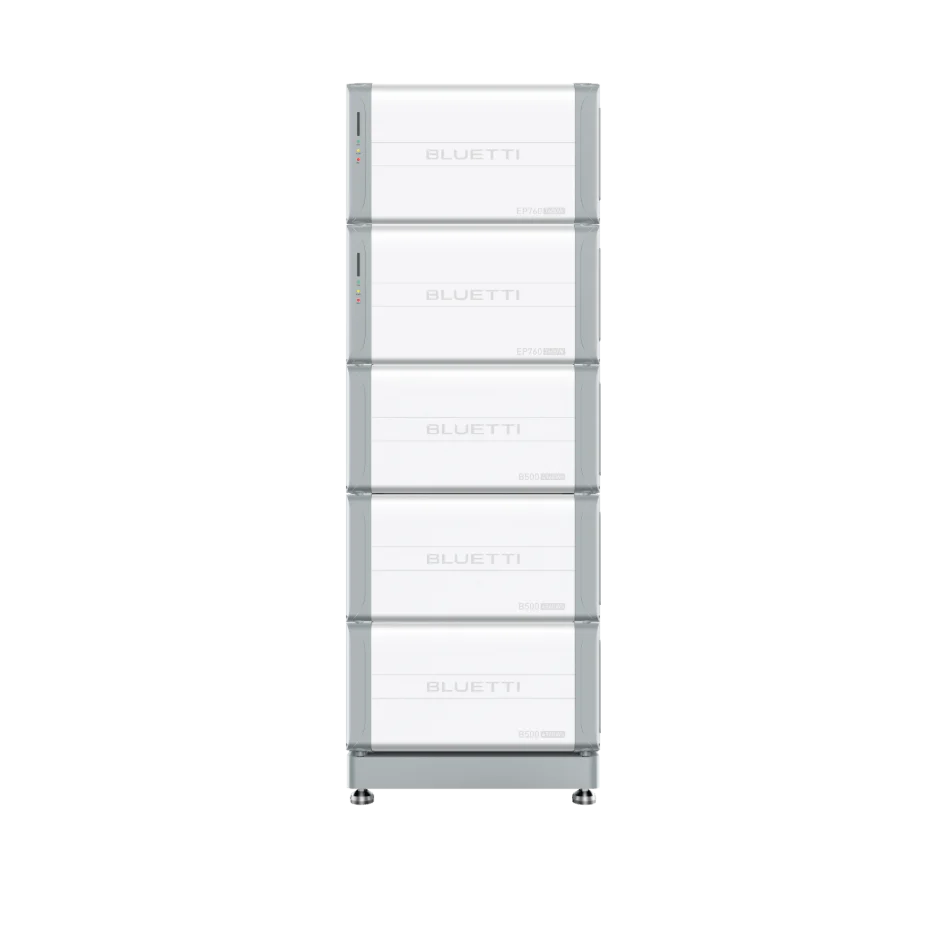

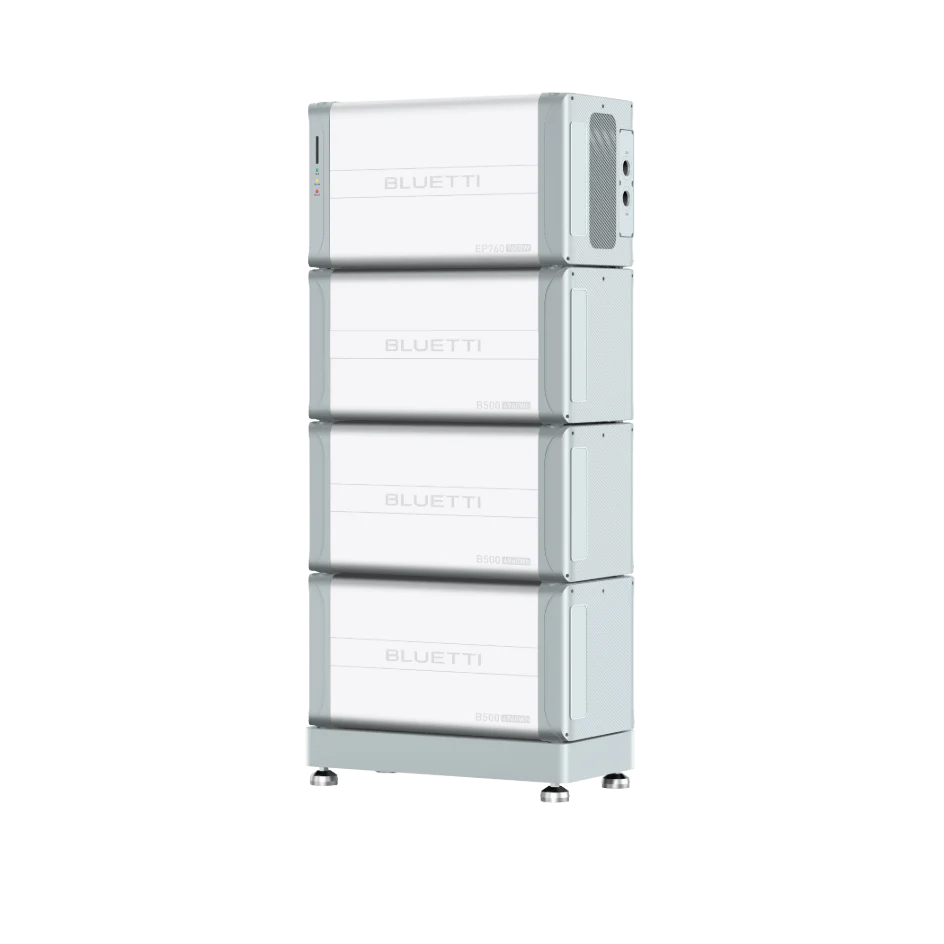

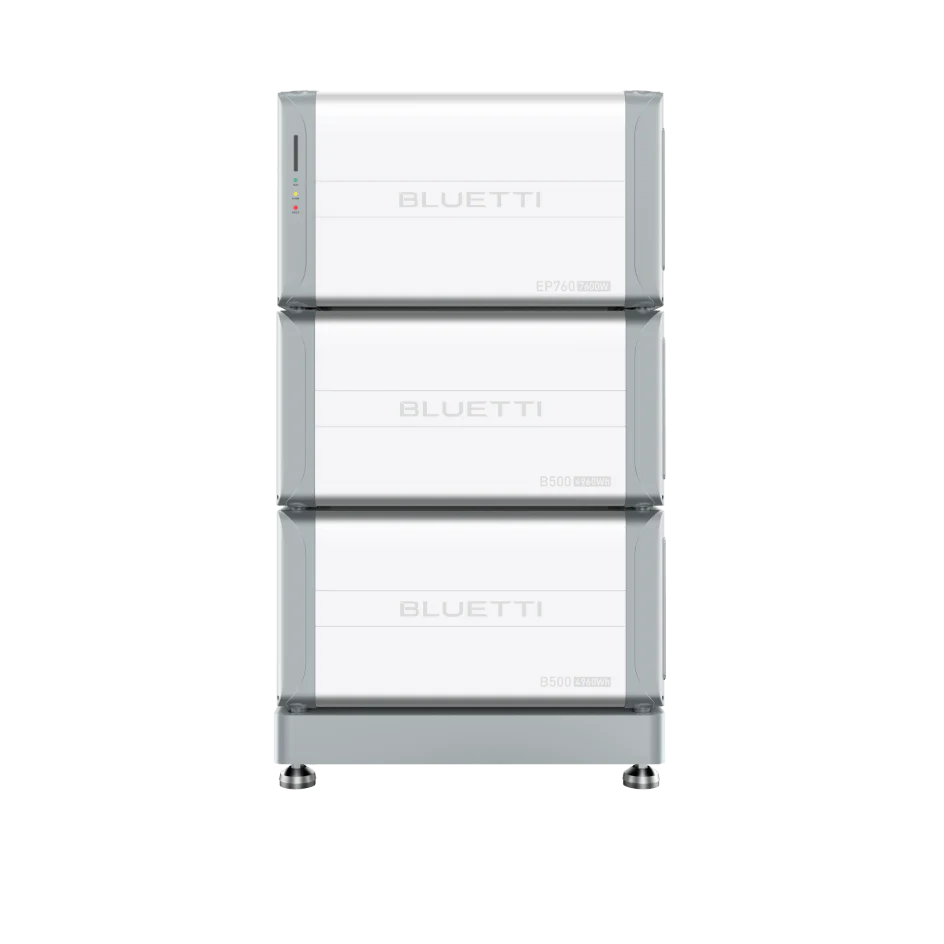

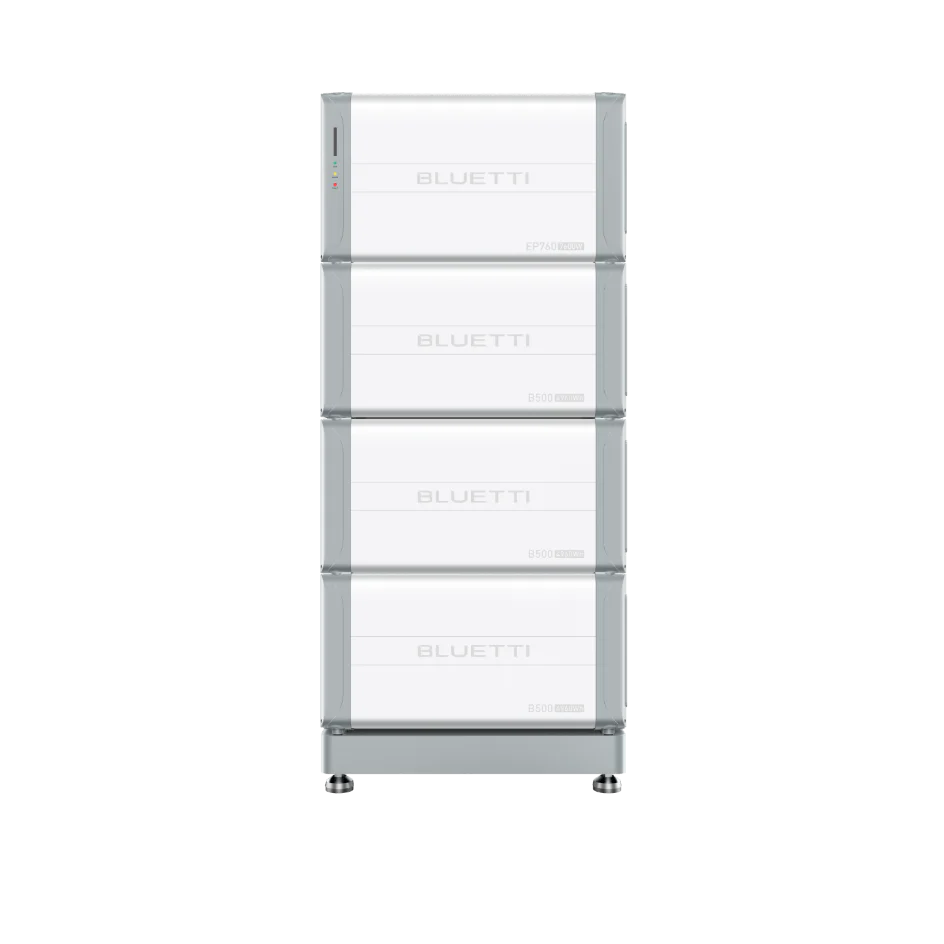

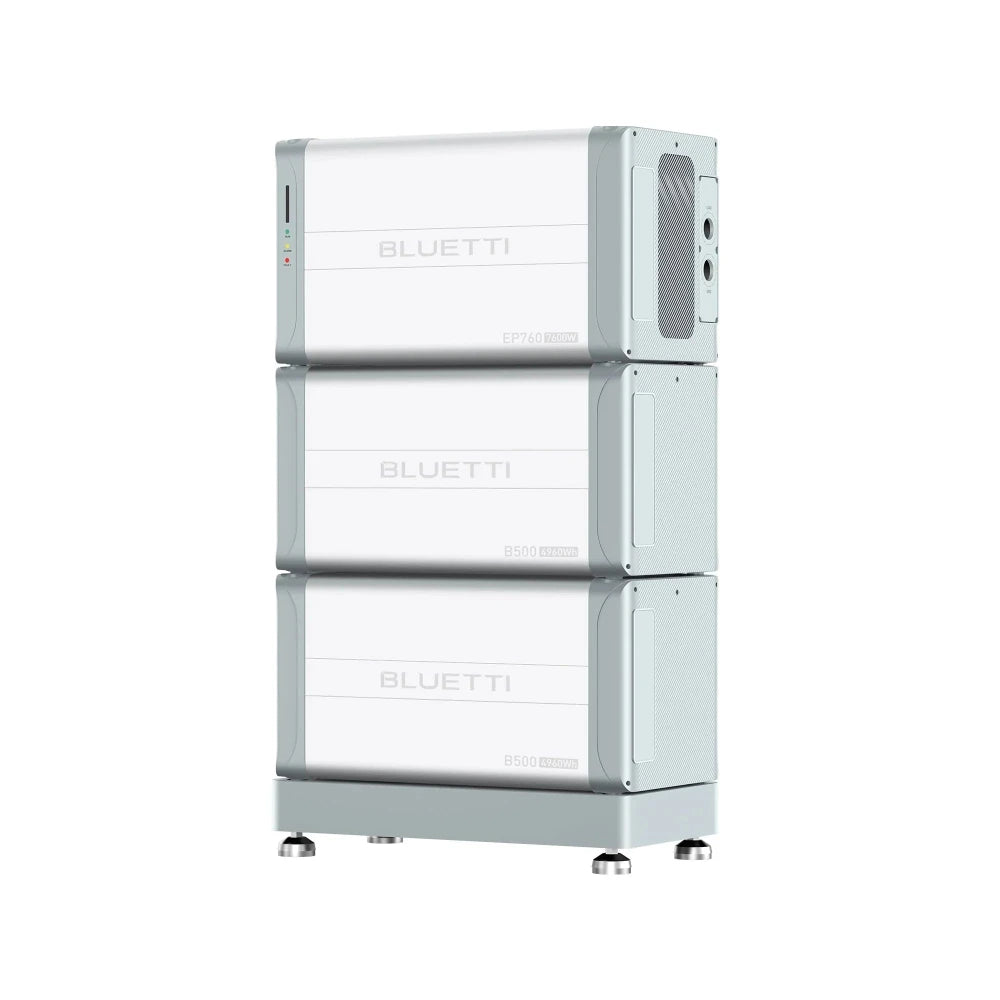

The system's storage capacity can be expanded from 4.96kWh to 19.8kWh by connecting up to four B500 battery packs, offering flexibility to meet different energy demands.
Engineered for seamless integration with existing rooftop solar systems, the EP760 efficiently captures solar energy during sunny periods and provides backup power during the night or on cloudy days. This reduces reliance on the grid and can significantly cut electricity expenses.
Operating at noise levels under 50 decibels, the EP760 is ideal for homes, cabins and sheds, ensuring quiet operation without disruptions. Its space-saving, stackable design further enhances convenience and adaptability for various installation settings.
Additionally, the EP760 features a smart energy management system that allows users to schedule charging and discharging times through the BLUETTI App. This capability helps optimise solar energy usage and further reduce electricity costs.
Being CEC approved, financial incentives are available for installing the EP760 ESS through the federal STC program: See Details Here
Why Choose BLUETTI EP760?
All-in-One System - No Additional Components Required

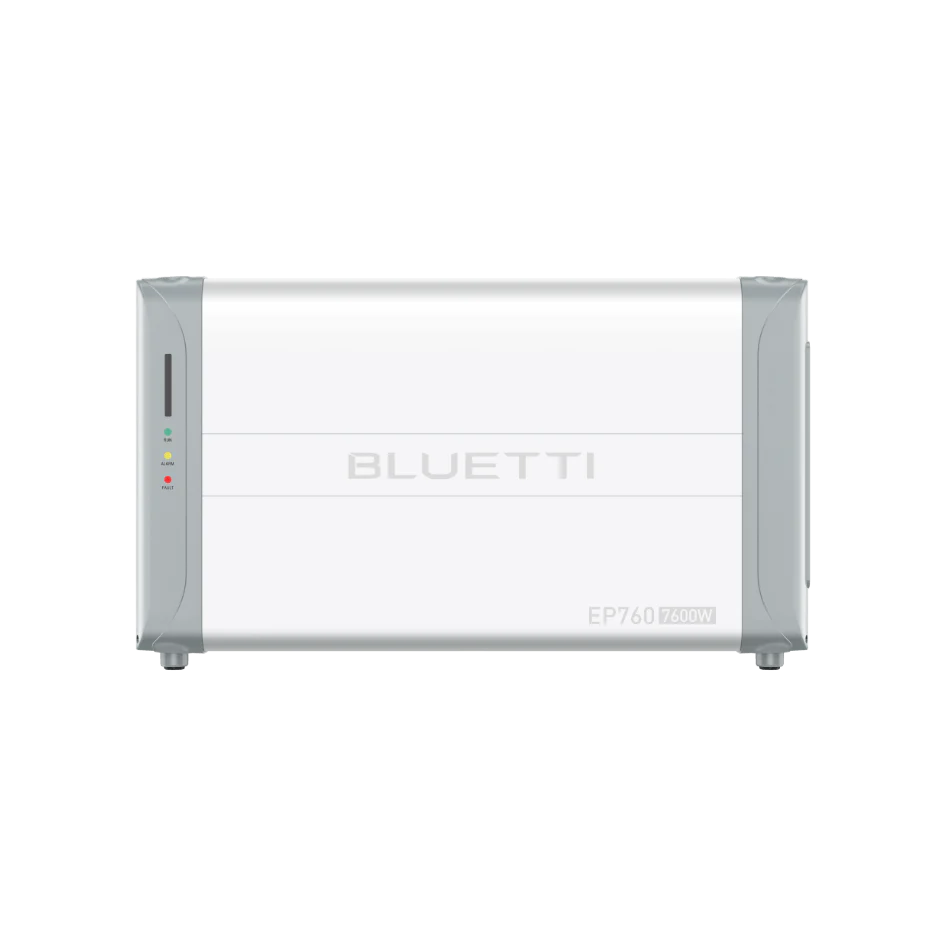

EP760 - Hybrid Solar Inverter. Able to power devices up to 7,600W, meeting more than 95% of standard household energy requirements.

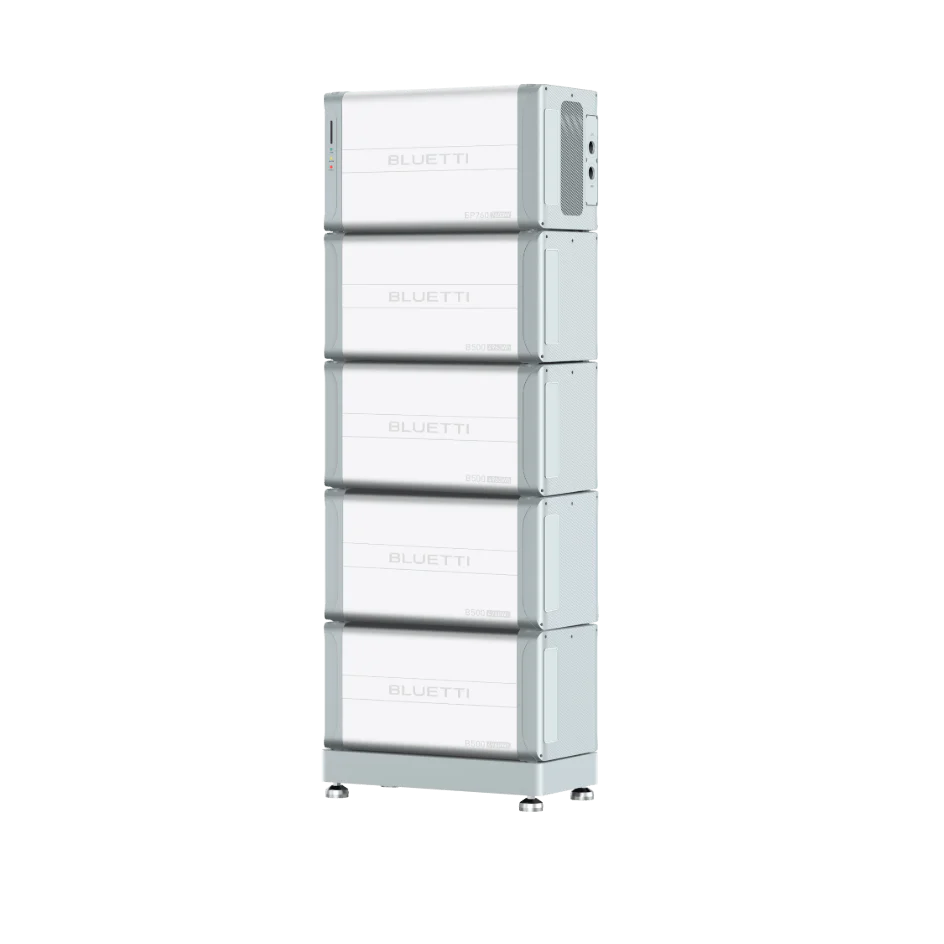

B500 - Battery Packs. Each battery pack offers a capacity of 4.96kWh, allowing you to customize the system with 1 to 4 packs for a total capacity ranging from 4.96kWh to 19.84kWh.
App Control. Connect via WiFi or Bluetooth to access the user-friendly interface, monitor energy status and remotely choose operating modes.
Engineered for Excellence
Elegant Design. Seamlessly integrates with your home decor.
Streamlined for Longevity. Removes screens and buttons to minimise maintenance and extend lifespan.
Robust Aluminum-Alloy Casing. Enhanced protection and optimized heat dissipation.
IP65 Weather-Resistant. Protects from dust and water in challenging environments.
Rounded Edges. Enhance durability and are friendly to your kids and pets.
Redefining Home Energy Intelligence
Advanced BMS. Ensures safe operation while enhancing battery performance and extending its lifespan.
LiFePO₄ Battery Cells. Deliver enhanced safety, stable charging, and long-lasting energy storage.
Self-Heating Function. Springs to life quickly, working actively and smoothly in temperatures as low as -4°F (-20°C).
Whisper-Quiet Operation. Operates under 50dB. So you can sleep soundly at night without disruptive hums.
Versatile Solution for Every Home
Recommended MAX PV Array Power 13,500 Wp
With Existing Solar Roofs. Integrate with your current solar setup via AC coupling without affecting your existing solar certification. Or expand your solar production by adding new solar panels via DC coupling.
With New Solar Installations. Pairs perfectly with the new solar system via DC coupling, offering high conversion efficiency and energy production.
Standalone Installations. Simply install the EP760 ESS without solar, potentially reducing your electricity costs by peak-load shifting.
With Complex Roofs. With 3 built-in MPPT channels operating independently, the EP760 adapts to roofs with varying angles and orientations.
With Generators. During extended power outages, charge the EP760 during the day using a generator, then power your home with stored energy at night.
Technical Specifications:
EP760 Hybrid Inverter
General
-
Operating Temperature: -20°C to 50°C
-
Noise: ≤50dB(A)
-
Net Weight: 46kg
-
Connectivity: Wi-Fi/Bluetooth
-
Protection Grade: IP65
-
Input Frequency" 50Hz
-
Switchover Time to Backup Power" <10ms
- Phase: L/N/PE
PV Input
-
Recommended MAX. PV Module Input Power: 13,500 Wp
-
Maximum Input Power: 9,000W
-
Single MPPT Maximum Input Current: 12.5A
- Number of Independent MPPT Inputs: 3(3,000W per MPPT)
AC Output (On-Grid)
-
Rated Output Power: 7,600W (5,000W for EP760 + 1 × B500 without solar system)
-
Rated Voltage: 230V
-
Frequency: 50Hz
- AC Output (Backup): Rated Output Power 7,600W (3,680W for EP760 + 1 × B500 without solar system)
Compliances
-
Grid Connections EN 50549−1, UTE C 15−712−1, DIN V VDE V 0126−1−1, Enedis-PRO-RES_10E version 5, VFR, G99/NI Issue 1, G99 Issue 1 Amendment 9, VDE-AR-N 4105, DIN VDE V 0124−100 (VDE V 0124−100), RD647, UNE 217002, RD 1699, RD 413 BOE-A, CEI 0−21−03 + V1, AS/NZS 4777, C10/11, G100 Issue 2 Amendment 2
- Safety: IEC 62109−1, IEC 62109−2, EN 62109−1, EN 62109−2
- Emissions: EN IEC 61000−6−3, EN IEC 61000−6−1
- Certificates: CEC, CE, CB

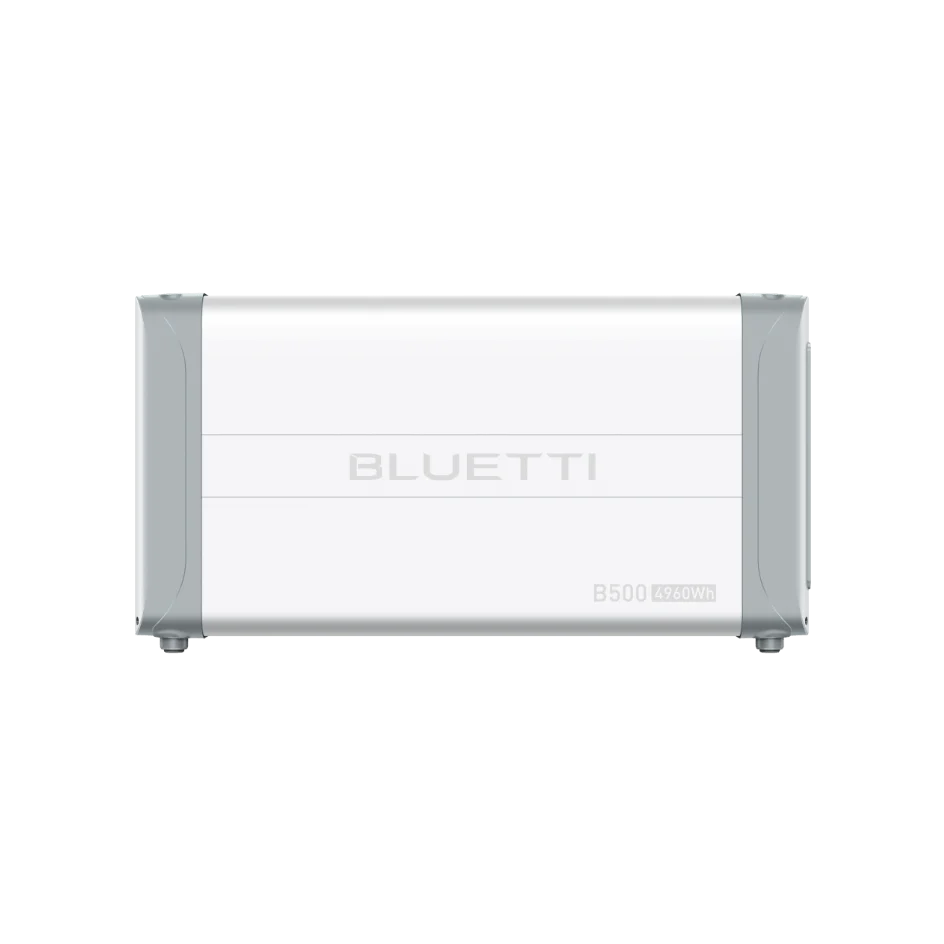

B500 Modular Battery
General
-
Battery Chemistry: LiFePO₄
-
Capacity: 4,960Wh
-
Net Weight: 127.8 lbs / 58 kg
-
Protection Grade: IP65
- Dimensions: 636 x325 x 338mm / 25.0 x 12.8 x 13.3 in
Compliances
-
Safety: JIS C8715-2, EN IEC 62619, UL 1973, UL 9540A, UL 9540
-
Emissions: EN IEC 61000-6-3,EN IEC 61000-6-1
-
Shipping: UN 38.3 RoHS 2011/65/EU and (EU)2015/863
- Certificates: CEC, CE, CB, CETLUS, FCC, IC, RCM
About The Brand:
As a technology pioneer in clean energy, BLUETTI is committed to a sustainable future by providing green energy storage solutions for both indoor and outdoor use. For over a decade, BLUETTI has delivered diverse energy solutions for homes, off-grid living, and businesses, inspiring a green lifestyle and empowering a brighter future.
