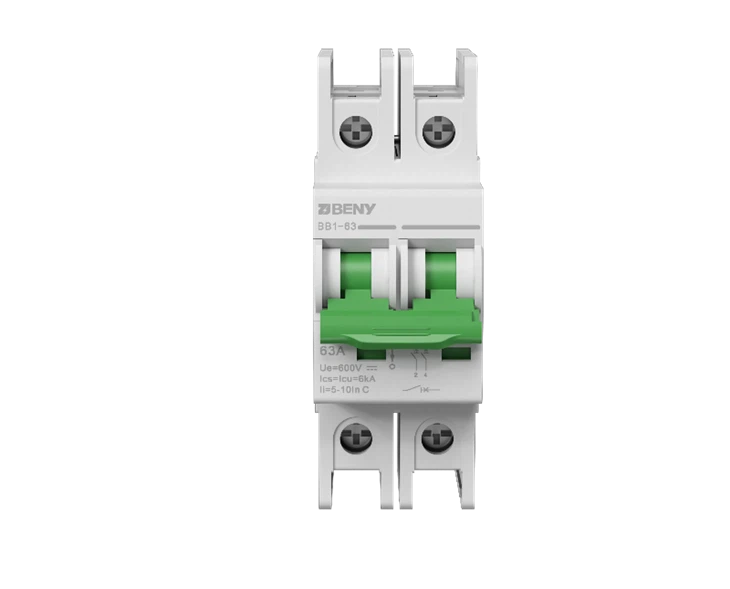

The ZJ BENY BB1-63 2P is a 600 V DC miniature circuit breaker (MCB) built for overload and short circuit protection in solar PV and battery systems.
This is the 2 pole version, rated 600 V DC and available in 10 A, 16 A, 20 A, 40 A and 63 A. It clips onto standard 35 mm DIN rail, and because it is non polarised it works whichever way round you wire it.
Certified to IEC 60947-2 with a 6 kA breaking capacity, the BB1-63 gives you dependable DC isolation and fault protection in solar combiner boxes, battery circuits and DC distribution boards.
Main Features
600 V DC Rated: Purpose built for DC, suitable for solar strings, battery banks and DC distribution.

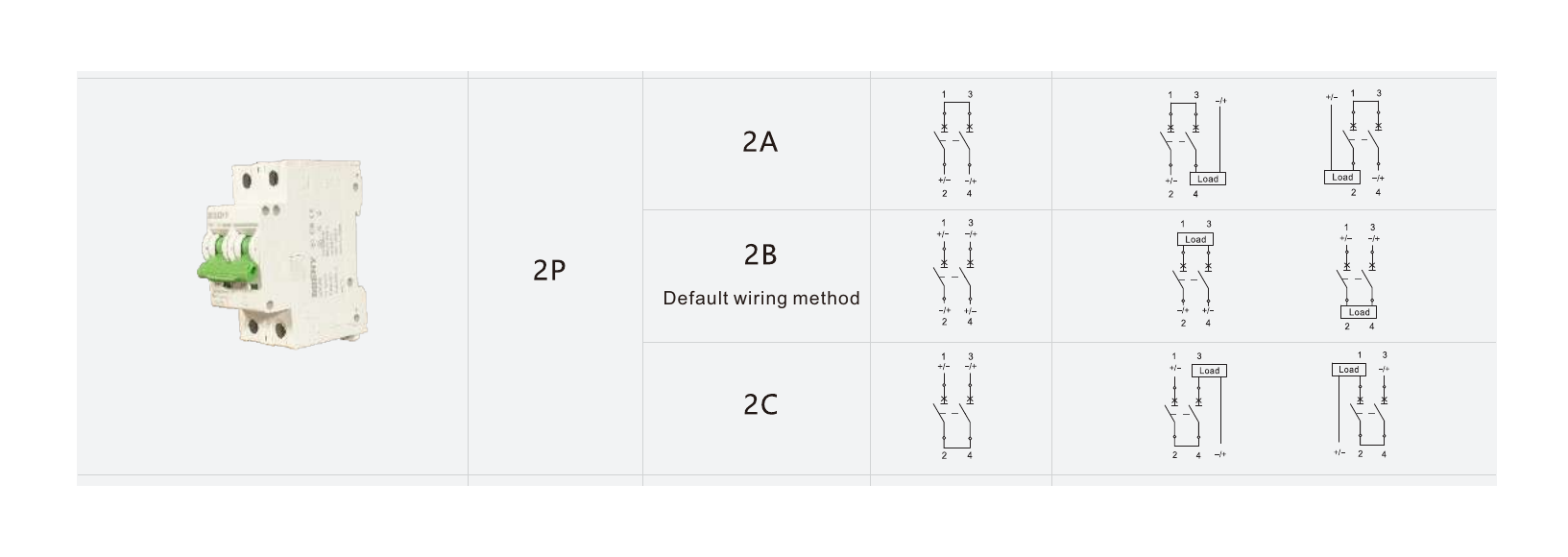

Non Polarised: Wire it either way round. There is no input or output side to get right, which removes a common wiring mistake on site.
6 kA Breaking Capacity: It can safely cut a fault of up to 6,000 amps, and it keeps that full rating afterwards rather than dropping to a lower one.
Thermal Magnetic Tripping: C curve as standard, giving overload and short circuit protection plus reverse current protection.
Wide Temperature Range: Rated for continuous operation from minus 40 to plus 80 degrees C.
Quick Specs
- Model: BB1-63 PV Miniature Circuit Breaker, 2 Pole
- Rated Working Voltage (Ue): 600 V DC
- Rated Current (In): 10 A, 16 A, 20 A, 40 A, 63 A
- Breaking Capacity (Icu / Ics): 6 kA / 6 kA
- Rated Impulse Voltage (Uimp): 6 kV
- Tripping Type: Thermal magnetic, C curve (other curves on request)
- Standards: IEC 60947-2 / GB/T 14048.2
- Certifications: CCC, CB, CE, TUV (026660-EA)
- Ingress Protection: IP40 all sides, IP20 at connection terminals
- Terminal Cross Section: 2.5 to 25 mm sq
- Terminal Torque (M5): 2.0 to 2.5 Nm
- Working Temperature: Minus 40 to plus 80 degrees C
- Storage Temperature: Minus 40 to plus 85 degrees C
- Service Life: 10,000 mechanical operations, 1,500 electrical operations

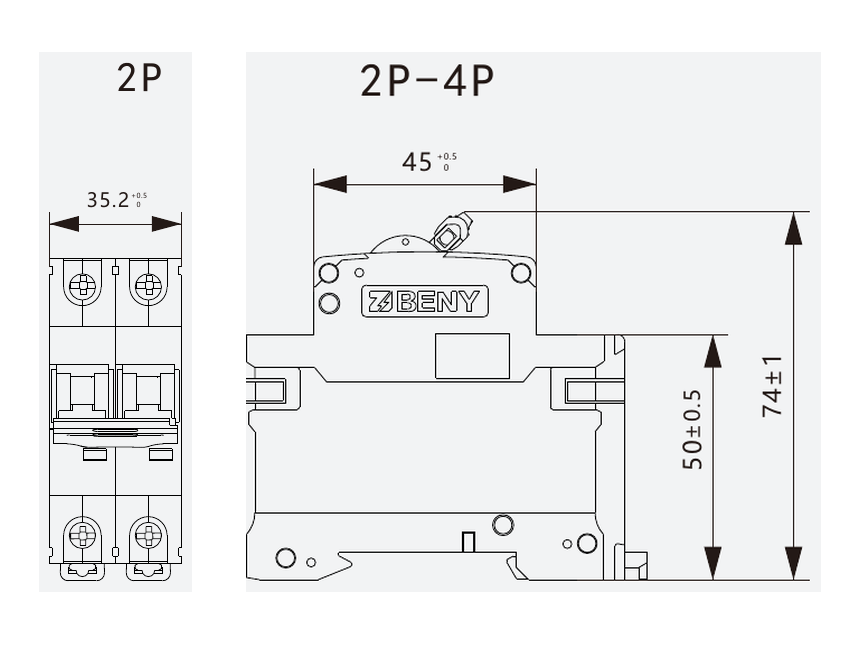

- Dimensions (W x H x D): 35.2 x 81.5 x 74 mm
- Mounting: 35 mm DIN rail
- Optional Accessories: BY-OF, BY-MX, BY-MF modules, arc shield, waterproof box (72 mm maximum installation width)
Current Ratings and Recommended Cable
| Model | Rated Current (In) | Rated Working Voltage (Ue) | Breaking Capacity | Recommended Cable Section |
|---|---|---|---|---|
| BB1-63 2P 10A | 10 A | 600 V DC | 6 kA | 1.5 mm sq |
| BB1-63 2P 16A | 16 A | 600 V DC | 6 kA | 2.5 mm sq |
| BB1-63 2P 20A | 20 A | 600 V DC | 6 kA | 2.5 mm sq |
| BB1-63 2P 40A | 40 A | 600 V DC | 6 kA | 10 mm sq |
| BB1-63 2P 63A | 63 A | 600 V DC | 6 kA | 16 mm sq |

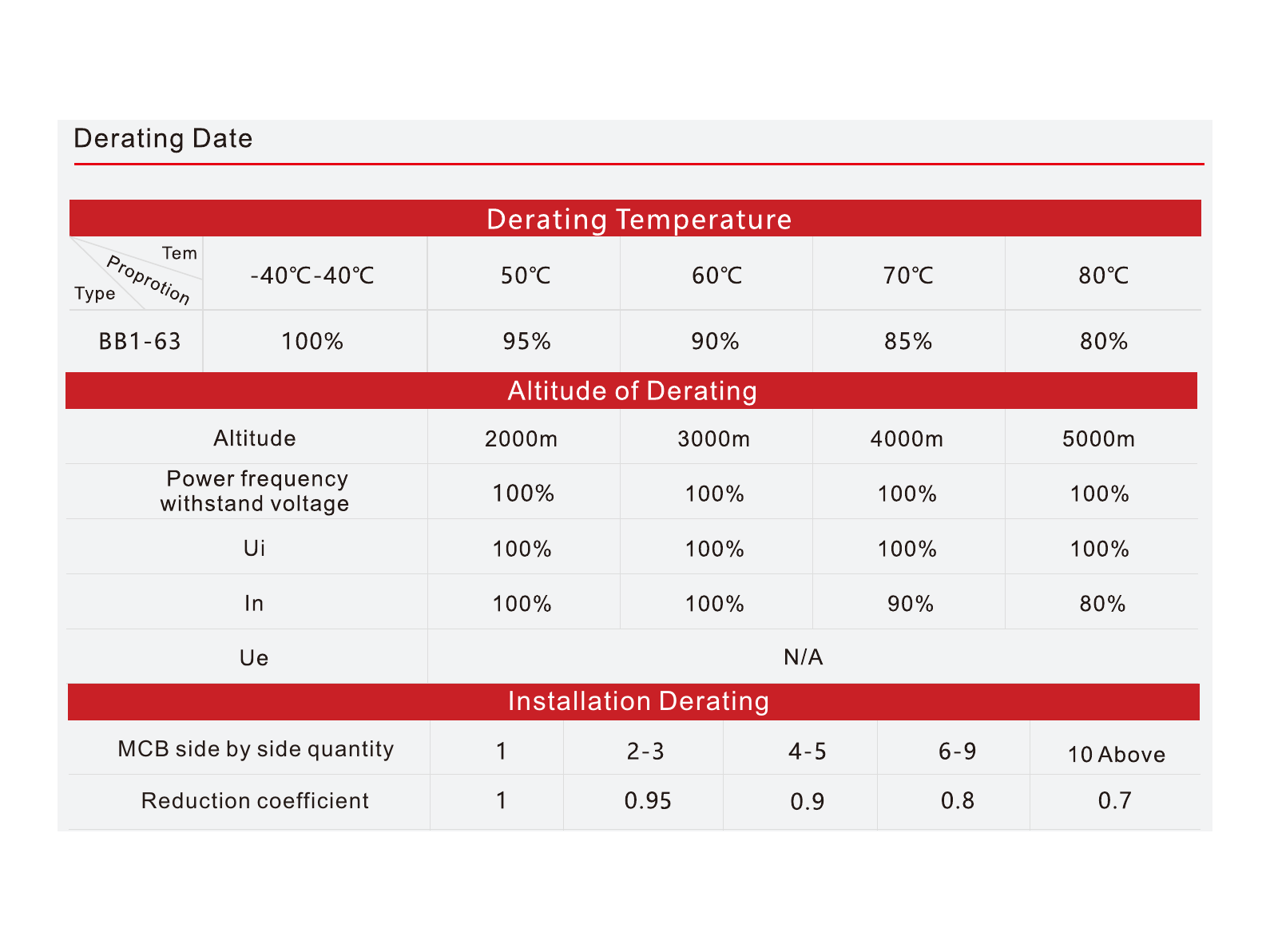

Temperature Derating
| Ambient Temperature | Minus 40 to 40 C | 50 C | 60 C | 70 C | 80 C |
|---|---|---|---|---|---|
| Rated Current Held | 100% | 95% | 90% | 85% | 80% |
About The Brand
BENY New Energy is a trusted manufacturer of protective components for photovoltaic systems across the globe. Our experience of working in the electrical industry for more than 30 years allows us to create solar DC components that comply with the latest DC standards. Through our focus on solar DC protection design, production, and marketing, we can bring brand-building PV protection solutions.
With the inheritance of 30+ years of experience in the research and production of DC protection products, we are continuously dedicated to the EV charging field. In recent years, BENY has attentively invested resources in research on EV-related products, successively manufacturing other types of products, thus reaping wide market popularity across the world.
