Sungrow AC22E-01 22kW AC EV Charger with iHome Manager | Mounting Stand

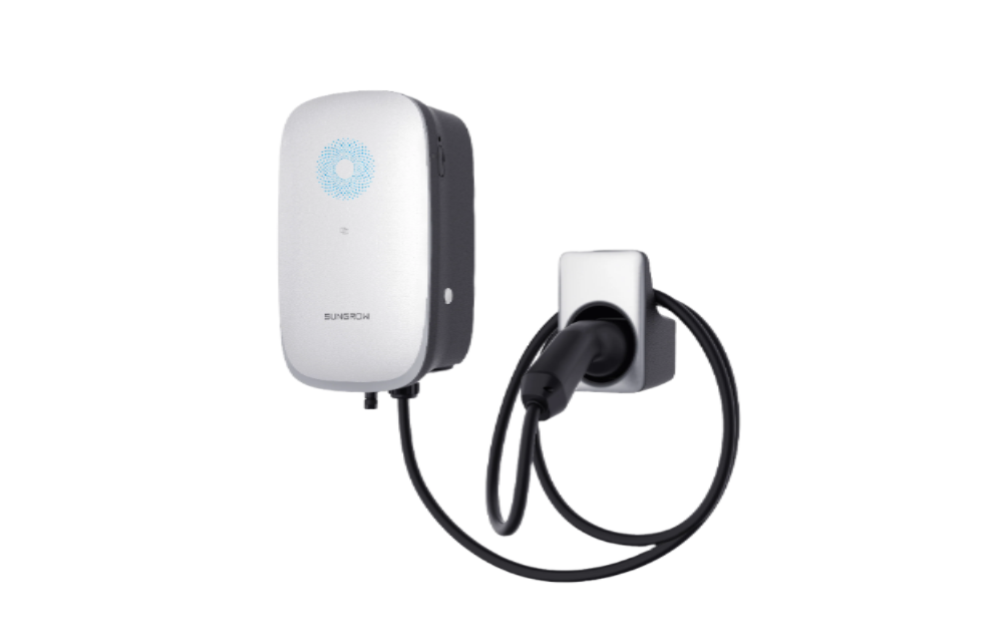

The Brand New Sungrow AC22E-01 is a high-performance 22 kW AC electric vehicle charger designed for residential, commercial and fleet applications.

With support for both single-phase and three-phase configurations, it offers flexible power delivery of up to 22kW and integrates seamlessly with Sungrow’s solar and energy systems for enhanced efficiency. Whether wall-mounted or installed on a stand column, the AC22E-01 offers a simple and space-saving charging solution.

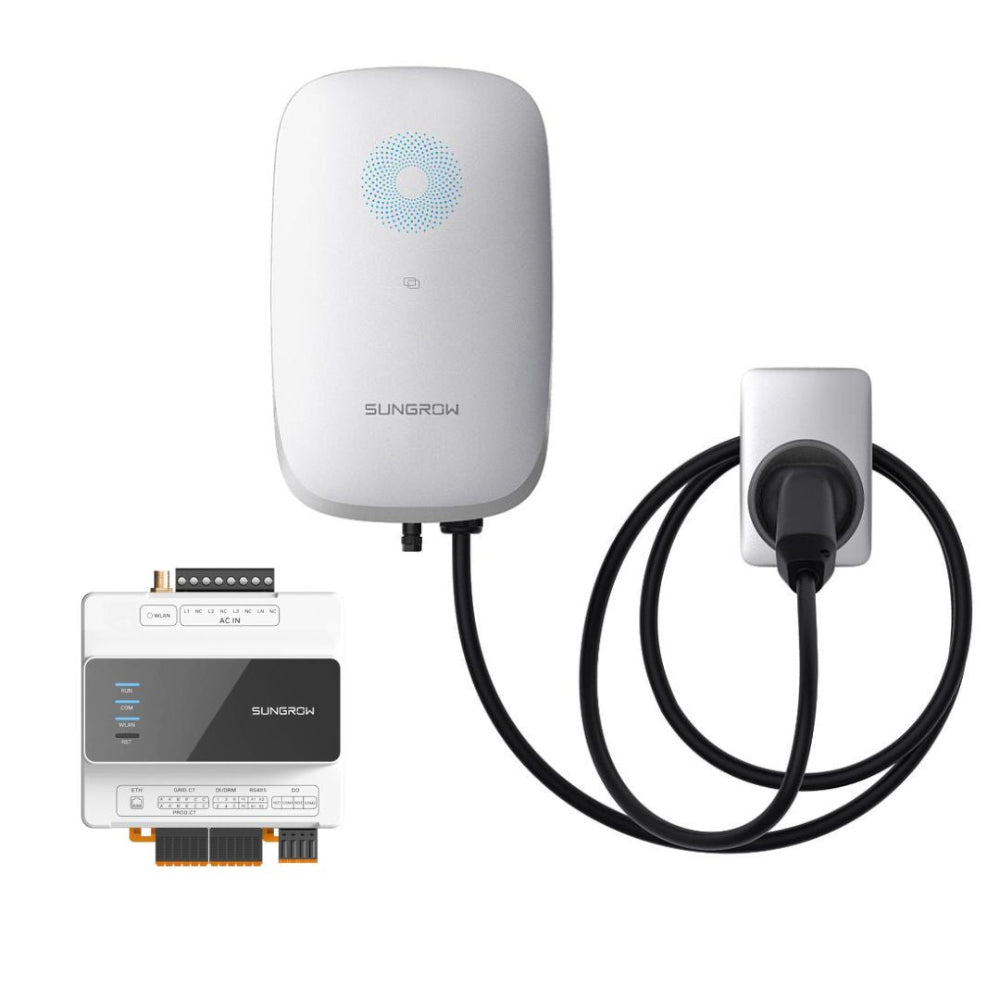

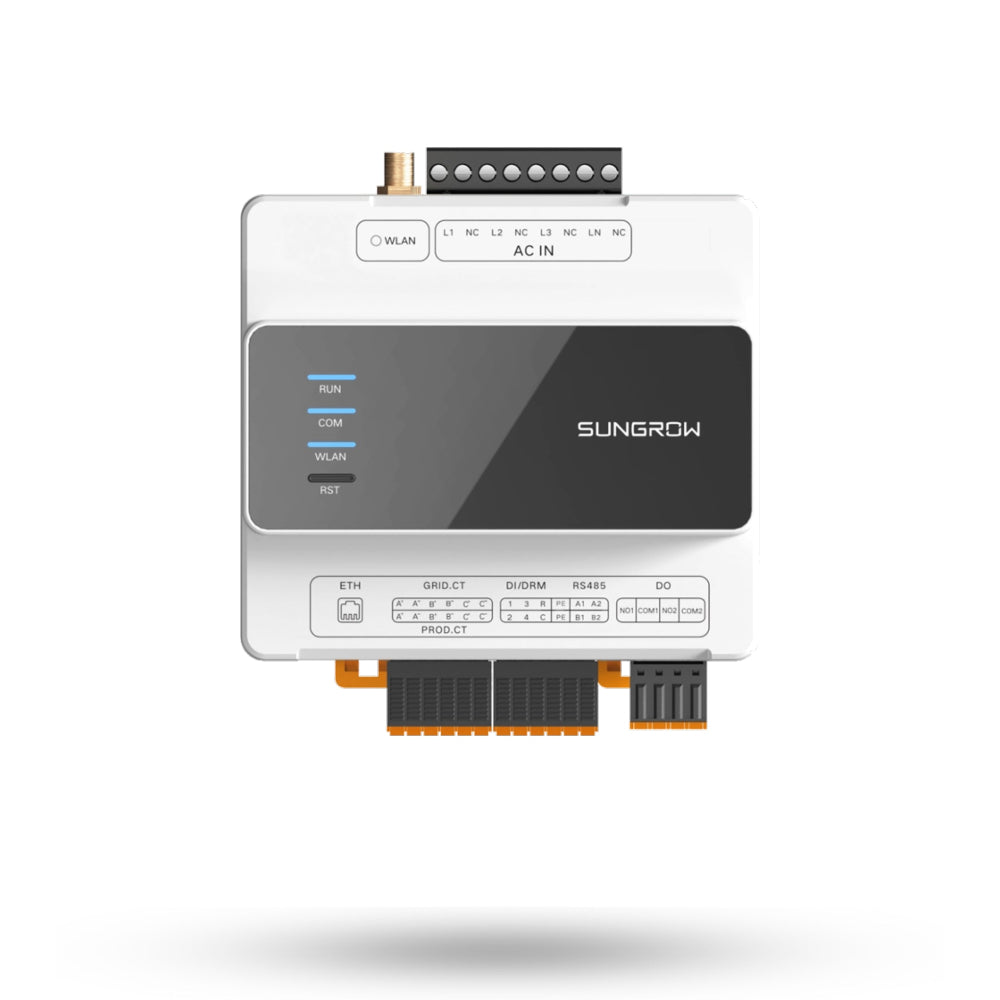

Package Includes the Sungrow iHomeManager

The iHomeManager maximises green energy use, improves self-consumption, and reduces electricity costs, empowering customers to centralise and optimise their energy management seamlessly.

Equipped with smart features and built-in safety systems, the charger supports DC fault current detection, adaptive load management, and app-based control via Wi-Fi, Ethernet, or 4G. It’s also OCPP 1.6J compliant, enabling smooth integration with back-end platforms and load balancing systems. With a durable IP65 and IK10-rated enclosure, it's suitable for both indoor and outdoor use.

Main Features

22kW Output (Configurable to 11kW or 7.4kW): Flexible power settings to match household or commercial needs.
Smart Charging Modes: Eco, fast, scheduled, and customised charging via the iSolarCloud app.
Robust Safety Protections: Integrated DC fault detection, surge, and over-temperature protection.
Connectivity & Control: OCPP 1.6J communication, OTA updates, and RFID or app authentication.
Weather-Resistant Design: IP65-rated housing with IK10 impact protection for reliable outdoor use.

 Quick Specs

• Max Charging current 32A / 16A

• 5m cable with type 2 plug and cable holder included

• Communication Interfaces include: LAN / WiFi / 4G (to cloud) and RS485 (to inverter/meter)

• Dimensions: 346mm H x 214mm W x 125mm D / <6.65kg (including type 2 cable)

• Installation: Wall-mount (default), stand column (optional)

• Environmental Rating: IP65, -30°C to 50°C operating temp

• 3-year warranty

Optional Add-On
Sungrow  Single or Dual  AC EV Charger Pedestal / Mounting Post

Create a sleek, durable, and professional EV charging setup with Sungrow’s purpose-built post mounts for AC chargers.

Designed for locations without suitable wall space, these pedestals provide solid support and a premium finish, making them ideal for home driveways, workplace carparks and public charging stations.

Main Features

• Perfect Fit – Engineered for Sungrow AC chargers, ensuring seamless integration and a modern look.

• Durable Construction – Built with heavy-duty, corrosion-resistant materials for long-term reliability.

• Stable & Secure – Offers a strong freestanding base for safe EV charging in any environment.

• Flexible Installation – Suitable for residential, commercial, and fleet applications where wall mounting isn’t possible.

• Professional Appearance – Delivers a clean, organised finish that enhances any charging space.

When combined with the Sungrow AC22E-01 EV Charger, these pedestals uphold the same level of quality, reliability, and design excellence that define Sungrow’s energy solutions.

Quick Specs

• A single-sided floor-mounted pedestal/post mount to suit one Sungrow AC EV charger

• A dual-sided floor-mounted pedestal/post mount to suit two Sungrow AC EV chargers

• Pole dimensions: 1350mm H x 170mm W x 130mm D

• Pedestal dimensions: 5mm H x 170mm W x 130mm D

• Weight: 5.2kg

• Colour: RAL 7015

• Material: Carbon Steel

Untethered EV Charger – Common Issues / Challenges

Convenience / Hassle - You have to carry the cable and plug it in every time. That’s an extra step vs a tethered charger. After charging, you need to disconnect and store the cable. This can be more tedious, especially in adverse weather (rain, mud) or low light.

Cable Management / Storage - Need somewhere to store the cable safely when not in use—garage, boot of car, etc.—to protect it from damage or theft. Cables can be bulky, heavy, or awkward to coil/carry. If poorly stored, risk of tangling, kinking, or damage.

Risk of Loss / Theft / Damage - Because the cable is detachable and portable, there is a higher risk of misplacing it or having it stolen when the cable is left unattended or stored in insecure areas. Also, greater exposure to damage (e.g. weather, stepping on it, moisture, rodents) when transporting/storing frequently.

Compatibility / Cable Quality Concerns - You must get the correct cable for your EV model (connector type, current rating, etc.). Using an incorrect cable can reduce safety, reduce charging speed, or risk damage. Quality of cable matters; a cheaper or thinner cable may lead to voltage drop, heat, or reduced performance. If you need a longer cable, the cable’s gauge has to be sufficient.

Cost Considerations - The Initial cost might be higher in some cases, because you need to buy the cable separately. Replacement/upgrading of cables adds cost over time. A cable may need replacement if damaged or if you upgrade to a higher power or a different connector.

User Error / Forgetfulness - If you forget the cable, or it’s not with the car when needed, you can’t charge even if the charger is available. Plugging/unplugging frequently may lead to wear and tear on connectors (both on the vehicle side and cable/charger side).

Weather / Environment Exposure - If the cable is carried or stored outside (even temporarily), it can suffer from environmental conditions: water ingress, humidity, UV exposure, dust, etc. Using in rain or wet conditions might be more inconvenient since the user must handle the cable. If inverter/outlet/cable connections are exposed, safety risk if the sealing isn’t good.

Space / Parking Layout Constraints - The charger socket must be close enough that the separate cable can reach comfortably, given the car parking position. If the car is parked a bit off the ideal position, the cable might not reach or might need to stretch awkwardly. If many users share the same charger (e.g. at an apartment or workplace), different parking spots can mean needing different cable lengths; untethered helps, but if the cable is left behind, it's a problem.

Safety / Electrical Risks - Frequent plugging/unplugging may cause connector wear, loose contacts, etc which might increase the risk of sparking or overheating. Poorly maintained cables or connectors could degrade.

Aesthetic / Clutter - Visible cables when plugged in may look untidy. If there is no good place to hang or store the cable, clutter may result.

About The Brand

Sungrow is a global leader in renewable energy inverter solutions, with over 49 GW installed worldwide by June 2017. Founded in 1997 by Professor Renxian Cao, the company is known for its strong focus on R&D, holding numerous patents and offering a wide range of solar inverters and energy storage systems for residential, commercial, and utility-scale use. With over two decades of innovation, Sungrow’s products are available in more than 50 countries, holding around 25% market share in Germany and over 15% globally.

Sungrow Australia has operated out of Sydney since 2012, establishing one of the largest local teams for solar inverter manufacturing in the country. The sales and technical support teams are based in North Sydney, with warehousing in Pendle Hills. With over six years of local service experience, Sungrow has built a national support network to assist installers and customers with warranty and technical enquiries.

Sungrow AC22E-01 22kW AC EV Charger DATASHEET

Sungrow iHomeManager DATASHEET

Sungrow iHomeManager INSTALLATION GUIDE

Sungrow iHomeManager MANUAL

Sungrow AC22E EV Charger USER MANUAL
