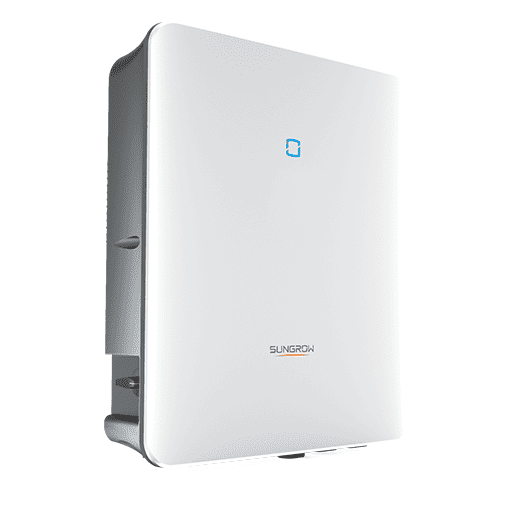

Sungrow 10kW Three Phase Hybrid inverter (2 MPPT) - SH10RT-ADA
- Description
- Specifications
- Manual
- Warranty
- Find my kit
- Why Buy from Buzz?
- Shipping
- Disclaimer
The Sungrow 10kW Three Phase Hybrid inverter (2 MPPT) - SH10RT-ADA offers efficient, flexible energy management for residential needs. With a wide battery voltage range of 150-600V, they adapt smoothly to varying power demands, providing reliable energy backup and high self-consumption optimisation.
Main Features:
Enhanced Energy Flexibility. Wide battery voltage range (150-600V) to handle different energy demands. Supports unbalanced loads in backup mode, ensuring stable energy flow.
Reliable Backup Power. Seamless transition to backup during outages, so power remains uninterrupted. High-speed charging and discharging to meet increased energy consumption.
Optimized Self-Consumption. Built-in energy management system (EMS) enhances self-consumption, reducing grid reliance.
Smart Monitoring and Management. Free online monitoring for users, installers, and retailers to manage energy effectively. Remote firmware updates and custom settings make ongoing management simple.
Effortless Installation. Lightweight design with push-in connectors and smartphone commissioning for easy setup. Compact, wall-mountable design for space-saving installation.
Built for Modern Homes. Transformerless design and IP65 protection ensure durability and efficiency in varied environments.
Quick Specs:
-
Max PV Input Power: 15,000 Wp
-
MPPT Operating Voltage Range: 200 V - 950 V
-
Battery Voltage Range: 150 V - 600 V
-
Max Efficiency: 98.4%
-
AC Output Power: 10,000 W (Rated) / 12,000 W (5 min peak)
-
Backup Power: 10,000 W (Rated)
-
Dimensions: 460 mm x 540 mm x 170 mm
-
Weight: 27 kg
-
Protection Rating: IP65
-
Communication: RS485, WLAN, Ethernet, CAN
-
Installation: Wall-mountable with push-in connectors
-
Cannot be daisy chained with the SH15/20/25T products
- Combine with HV lithium batteries for a complete home solar + energy
-
storage solution
-
DTSU666-20 energy meter included (plus 6 x 100A 0.333V CT's)
-
10-year standard warranty
About The Brand:
Sungrow, a global leader in renewable energy technology, has pioneered sustainable power solutions for over 27 years. As of June 2024, Sungrow has installed 605 GW of power electronic converters worldwide. Sungrow Australia office has been established in Sydney since 2012. With this rapid development, Sungrow Australia has built one of the largest solar inverter manufacturer teams in Australia covering sales, technical support, projects and after-sales service. The Sales team and technical support team are based in North Sydney and Sungrow warehouse is located in Pendle Hills. With over 6 years of local support experience, we have built national service networks and our service contractors are ready to help installers or customers with warranty enquiries.
