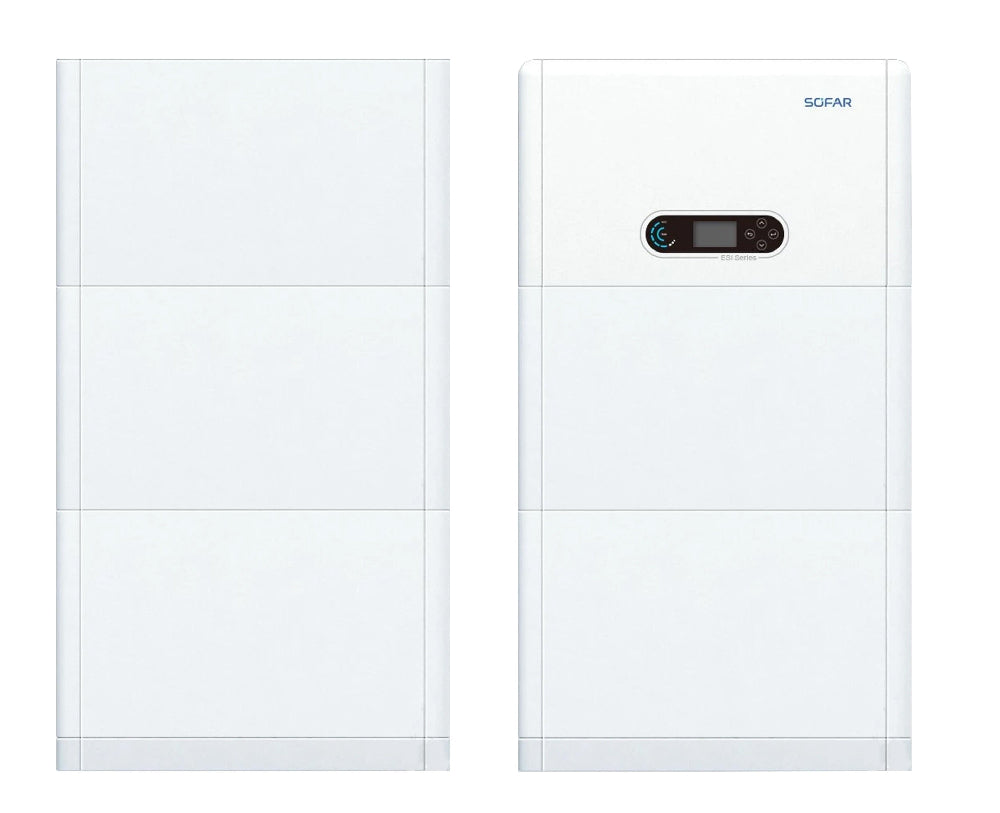

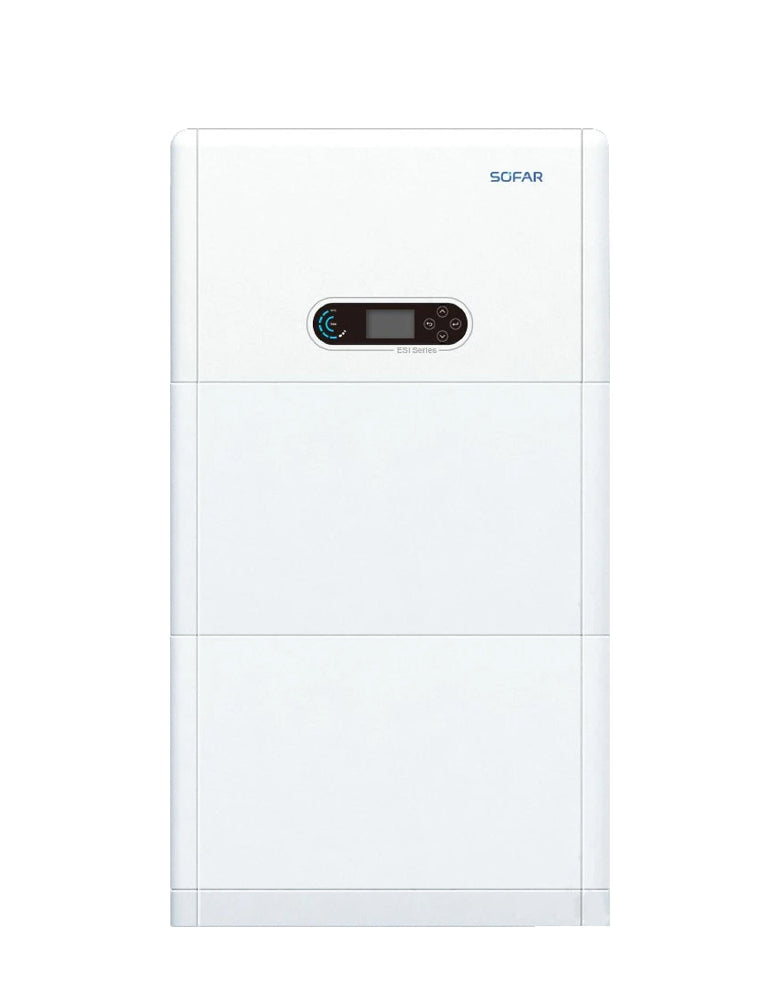

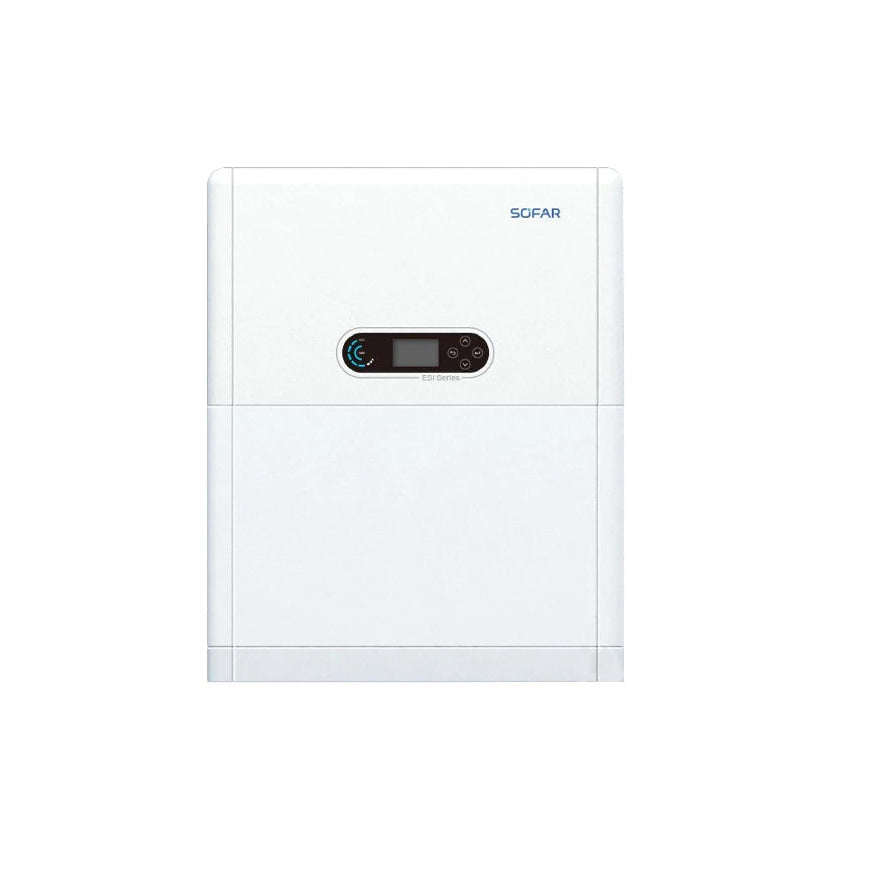

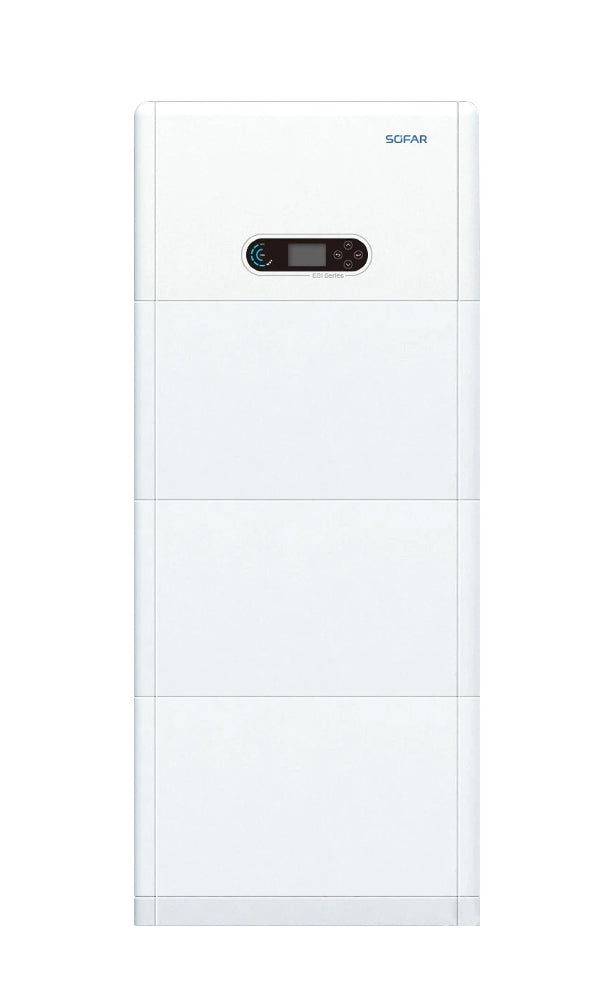

The SOFAR PowerAll Residential ESS Solution - Hybrid Inverter & HV Battery is a fully integrated, CEC approved home energy storage solution, combining a single-phase 5 or 6kW ESI hybrid inverter with high-voltage BTS 5K battery modules.
The system supports up to six battery modules per unit, and up to six systems can be connected in parallel, allowing configurations with a maximum output of 36 kW and a storage capacity of up to 180 kWh.
This all-in-one solar battery solution features an integrated Power Control Unit (PCU) to maximise available battery capacity and enhance overall system efficiency. Its modular stacking design allows for fast, space-saving installation, while dual electrical and isolation ensures maximum safety and system reliability.
This Bundle Includes:
- 1 x SOFAR ESI 5 or 6K-S1 Single-phase, Dual MPPT Hybrid Inverter
- 1 x SOFAR BTS 5K Battery Module
- 1 x SOFAR BTS 5K Extension Base
- Additional 1 x SOFAR BTS 5K Extension Base for E20-E30 (4 - 6 Battery Modules)
Main Features
-
CEC approved - Eligible for the Cheaper Home Battery Rebate
-
Smart Energy Management - Each battery module includes a built-in Battery Management System (BMS) and Power Control Unit (PCU). The system intelligently manages the battery’s output voltage and current based on its State of Charge (SOC), effectively increasing the amount of usable energy for greater efficiency.
-
Modular and Scalable - With a stackable, modular design, the SOFAR PowerALL allows for effortless expansion of storage capacity. The plug-and-play, click-to-connect cabling makes installation quick, safe, and user-friendly—ideal for residential applications.
- Advanced Safety - Equipped with CATL LiFePO₄ battery cells, the system ensures long-lasting stability and safety. Multiple active and passive protection mechanisms are built into the BMS, PCU, and inverter, including battery-side fuses, offering comprehensive protection for your home energy system.

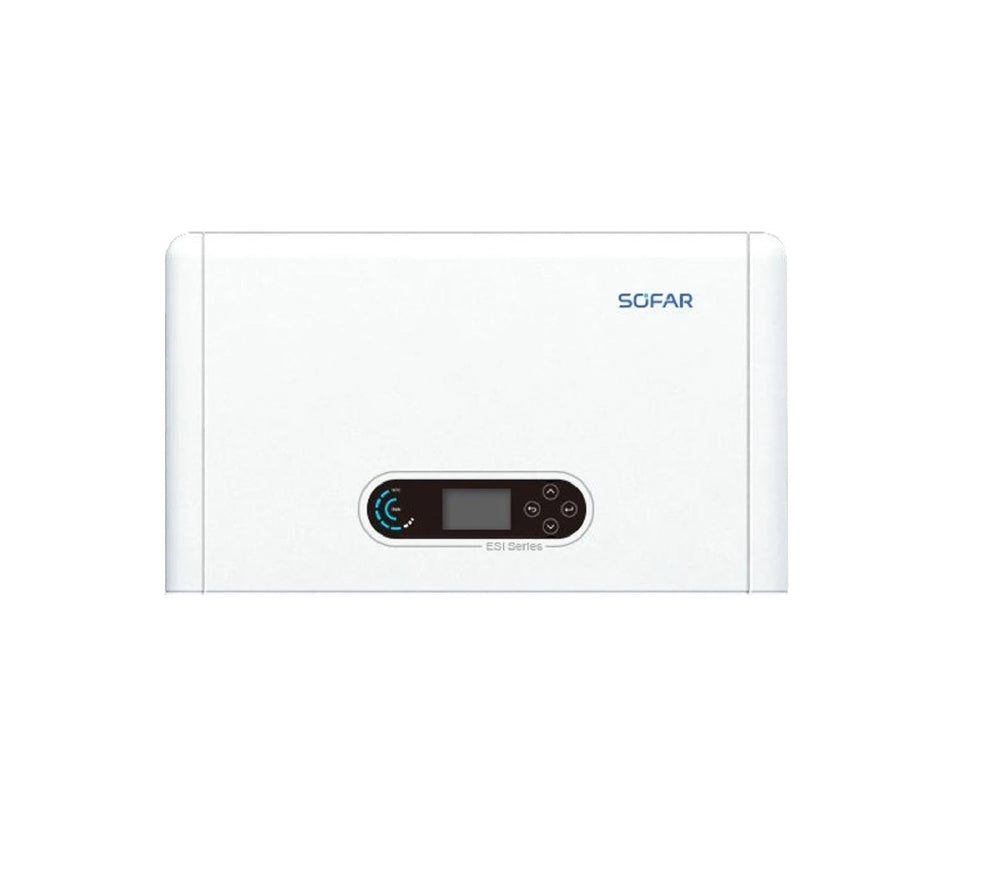

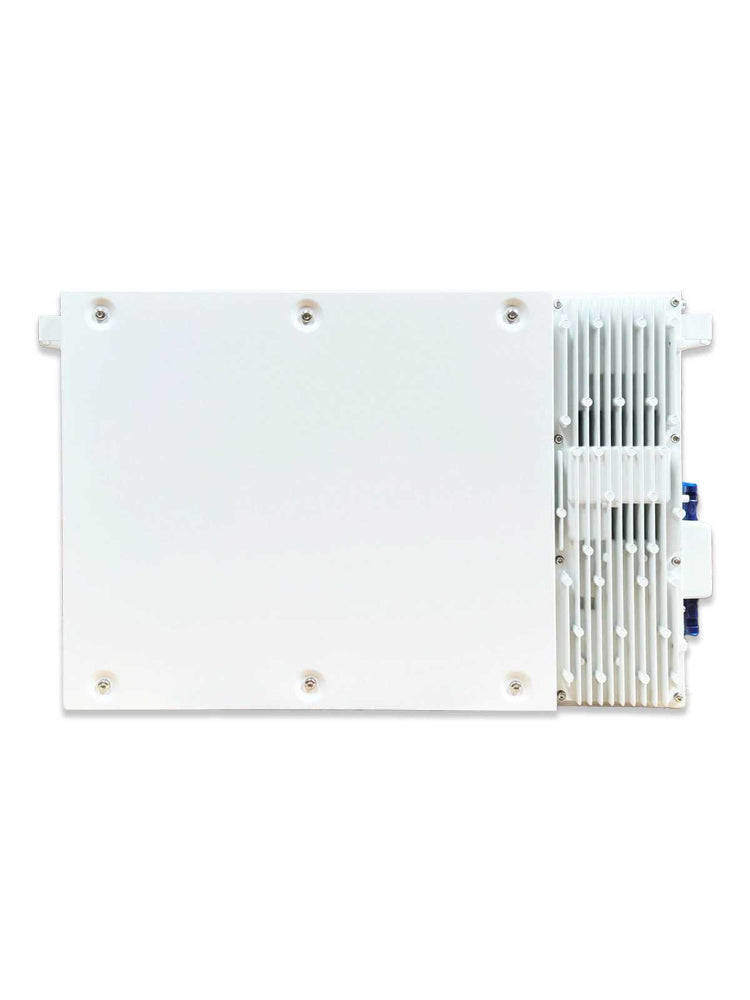

The ESI 5-6K-S1 Single-phase, Dual MPPT Hybrid Inverter is a high-performance solution designed for modern residential solar systems. Featuring a stacked, integrated design, it offers quick and hassle-free installation, making it ideal for streamlined solar setups.
Built with a Power Control Unit (PCU), the inverter enhances overall system efficiency by increasing usable battery energy by up to 6%, making maintenance more convenient and cost-effective.
Engineered for compatibility with today’s advanced solar panels, it supports up to 16A PV input current, making it ideal for high-current and bifacial modules. With dual electrical and physical isolation, this inverter prioritises safety and reliability in every application.
Quick Specs - ESI 5-6K-S1 Single-phase, Dual MPPT Hybrid Inverter
-
Rated Output Power: 5,000W (ESI 5K) / 6,000W (ESI 6K)
-
Max. PV Input Power: 7,500Wp (5K) / 9,000Wp (6K)
-
Max. PV Input Current: 16A per MPPT
-
MPPT Trackers: 2
-
Max. Efficiency: 97.8%
-
Rated Grid Voltage: 230V, 50/60Hz
-
Max. Off-Grid Output Power: 7,500VA / 9,000VA for 10 seconds
-
Switchover Time: <10 ms
-
Topology: Transformerless
-
Dimensions (W×H×D): 708 × 410 × 170 mm
-
Weight: 22.5 kg
-
Protection Rating: IP65
-
Communication: RS485 / CAN / WiFi; Optional: Ethernet / 4G
- Display: LCD + Bluetooth APP

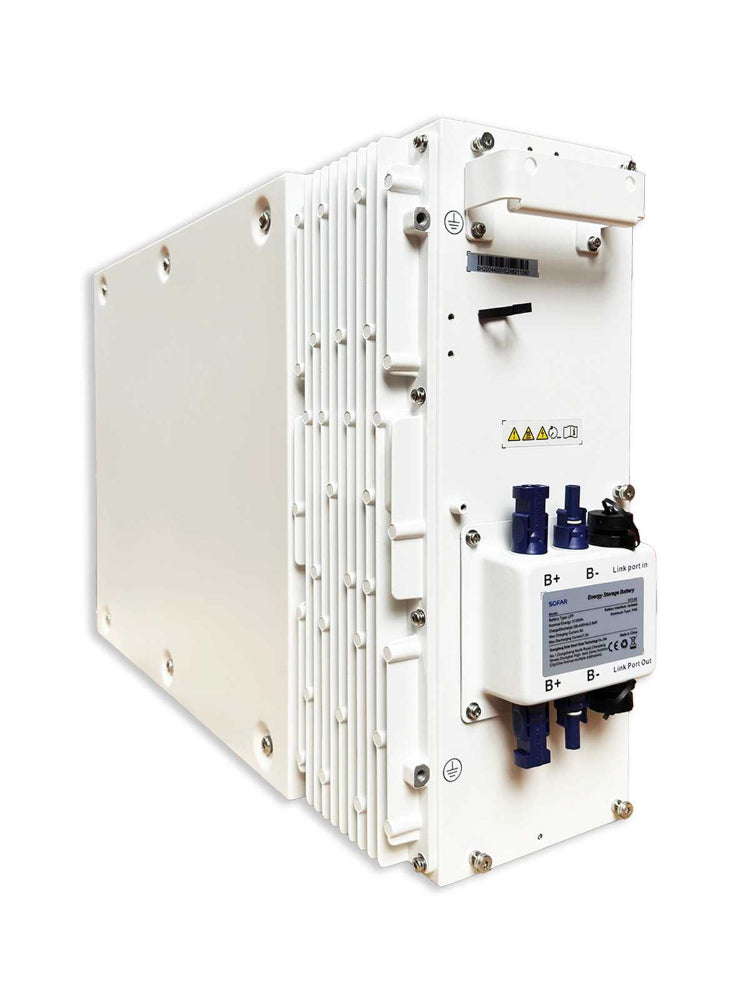

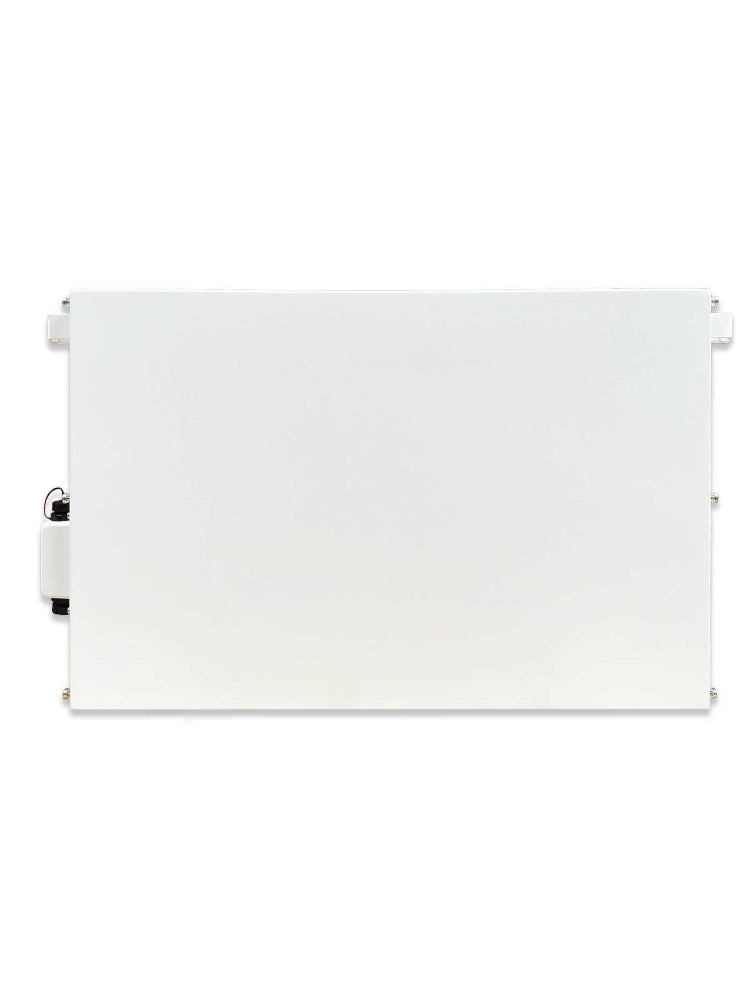

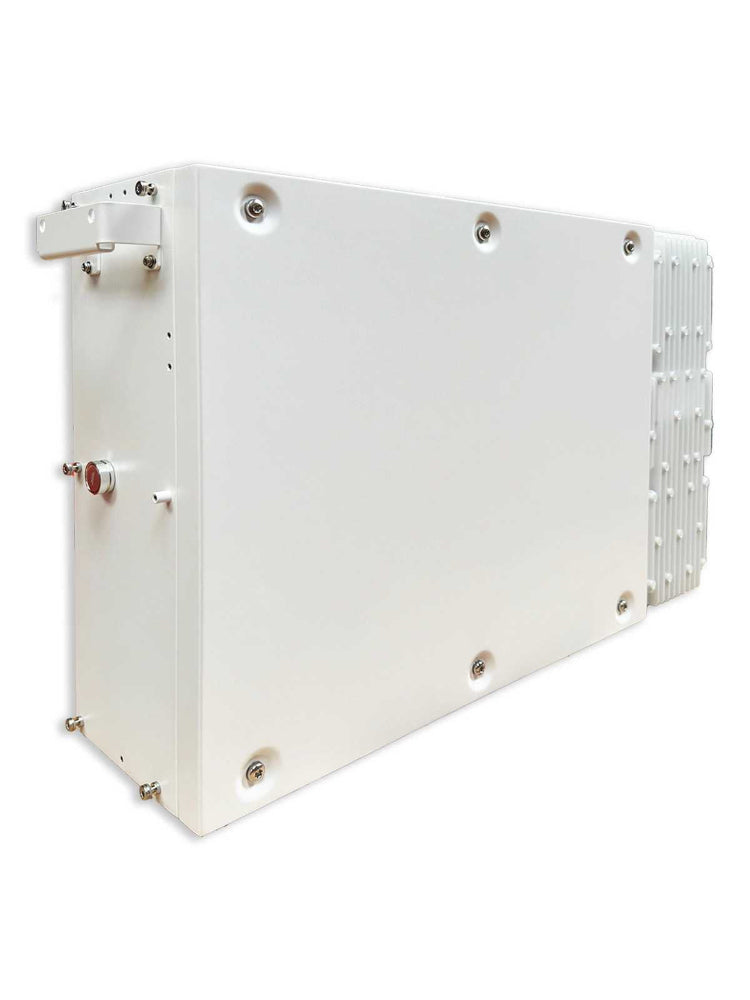

The BTS 5K Battery Module is equipped with an advanced power management system, supporting up to 24 months of storage time—ideal for both immediate and delayed installations. Its plug-and-play design ensures fast, hassle-free installation and simplified maintenance, delivering a smooth experience for installers.
Built with a pack-level energy optimiser, the BTS 5K enables the mixing of new and old batteries, significantly improving usable energy capacity while minimising maintenance risks often found in conventional systems. This results in enhanced backup power reliability for end users.
Safety is a top priority, with multi-layer protection mechanisms in place—from individual cell and module protection to isolation and full system safeguards—ensuring dependable and safe power for residential applications.
Quick Specs - BTS 5K Battery Module
-
Battery Type: LiFePO₄ (CATL cells)
-
Nominal Energy: 5.12 kWh
-
Usable Energy: 4.75 kWh
-
Rated Voltage: 400V
-
Max Charge/Discharge Power: 2,500W
-
Depth of Discharge (DoD): 0–90% adjustable
-
Design: Modular & Stackable
-
Dimensions (W×H×D): 708 × 420 × 170 mm
-
Weight: 50 kg
-
Safety: Transformer Isolation, Multi-layer Protection
-
Storage Time: Up to 24 months
- Scalability: Up to 6 units (30.72 kWh total)

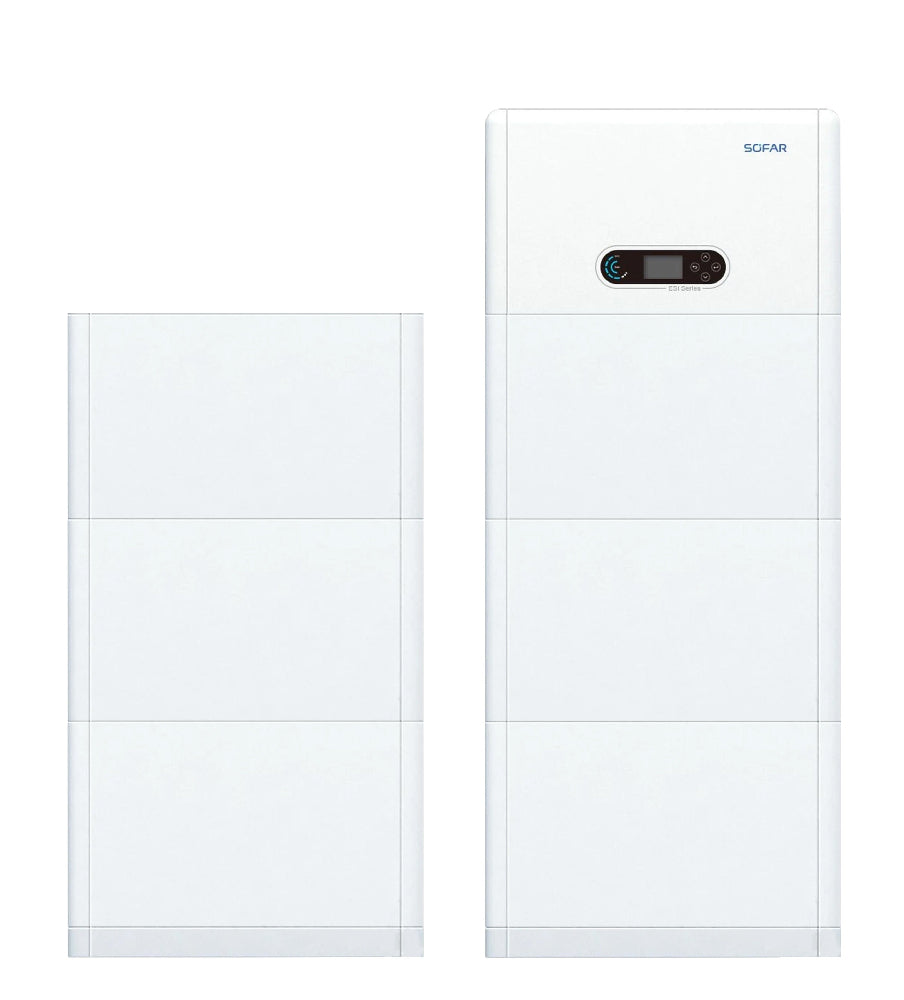

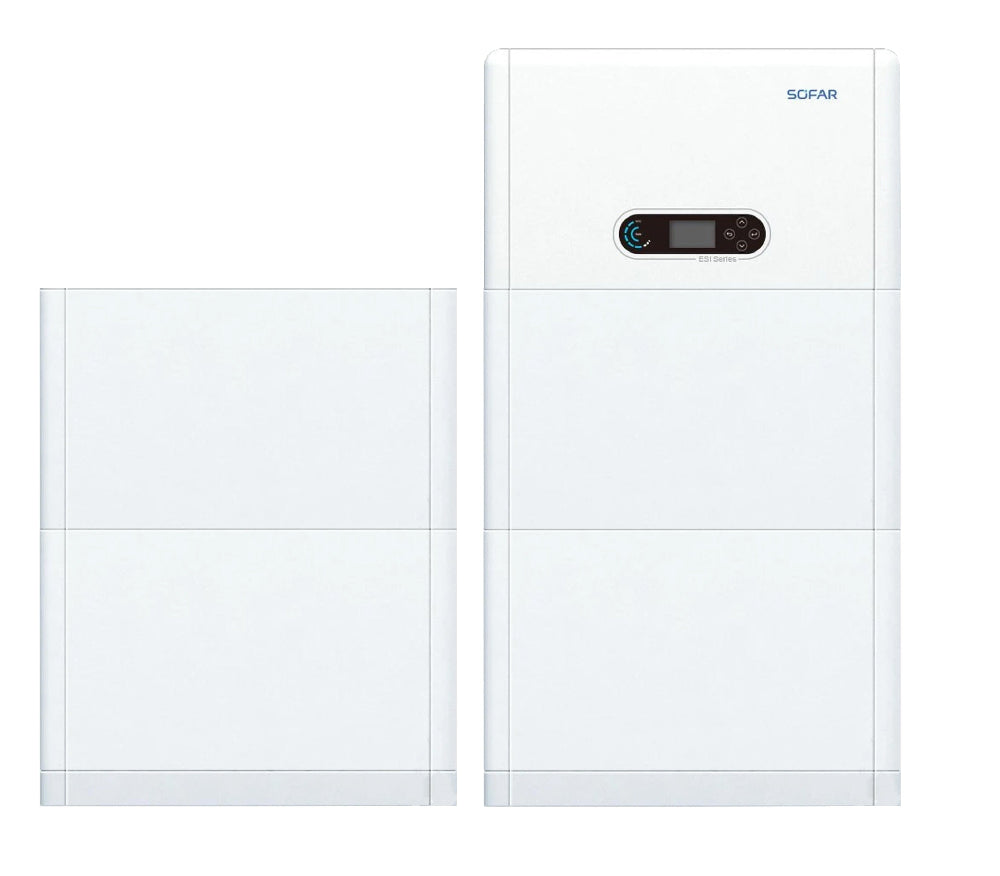

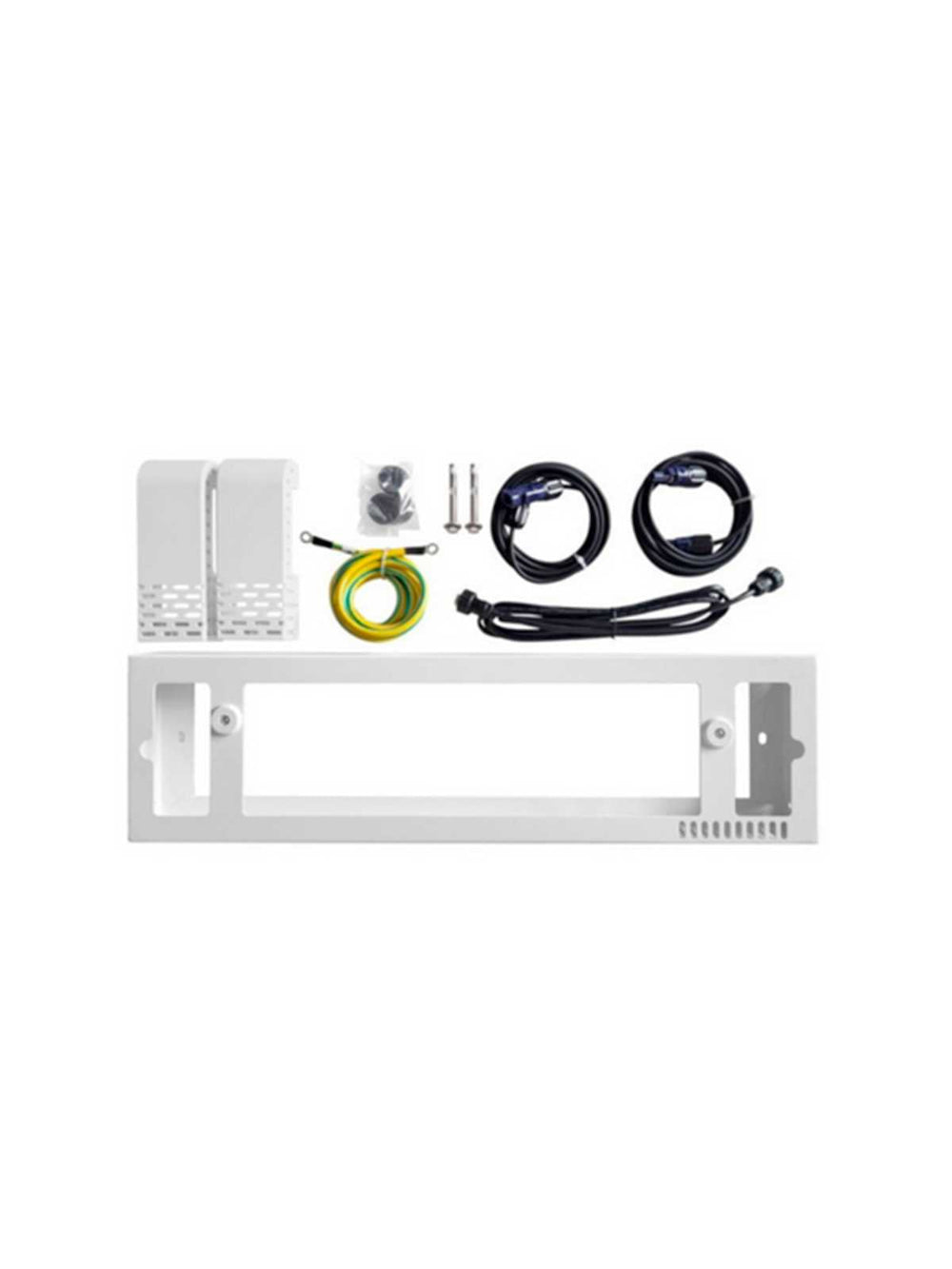

The BTS 5K Extension Base is an essential component for expanding the Sofar BTS energy storage system. For configurations involving four battery modules—such as the 20 kW E20 setup—the system should be divided into two separate stacks. Installing all four modules on a single base is not recommended. Instead, the proper arrangement requires two modules on one base with the BDU and two modules on a second base, ensuring safe and compliant installation.
SOFAR PowerAll - An All-In-One Solution
Residential PV System Solution
Engineered for rooftop and backyard solar installations, this system supports various operating modes, including full grid export, surplus power feed-in, and self-consumption, offering flexibility and efficiency for household energy needs.
