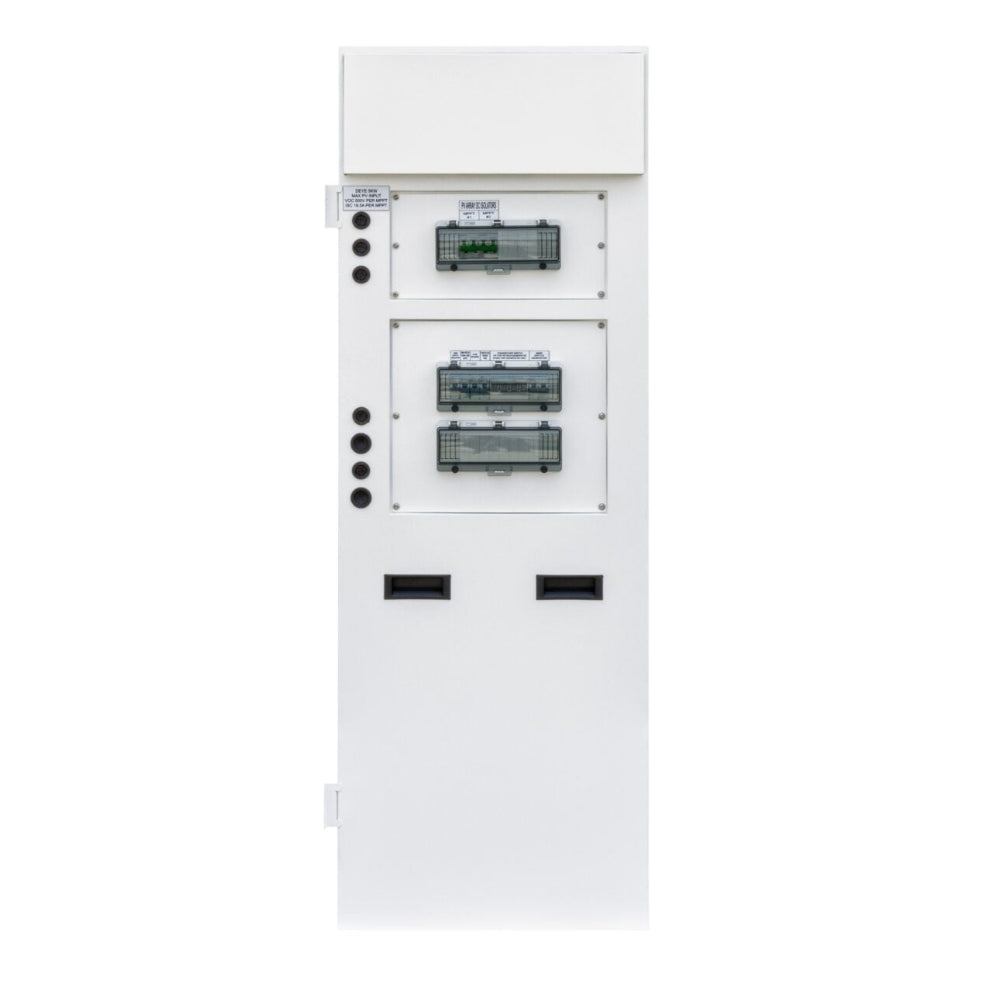

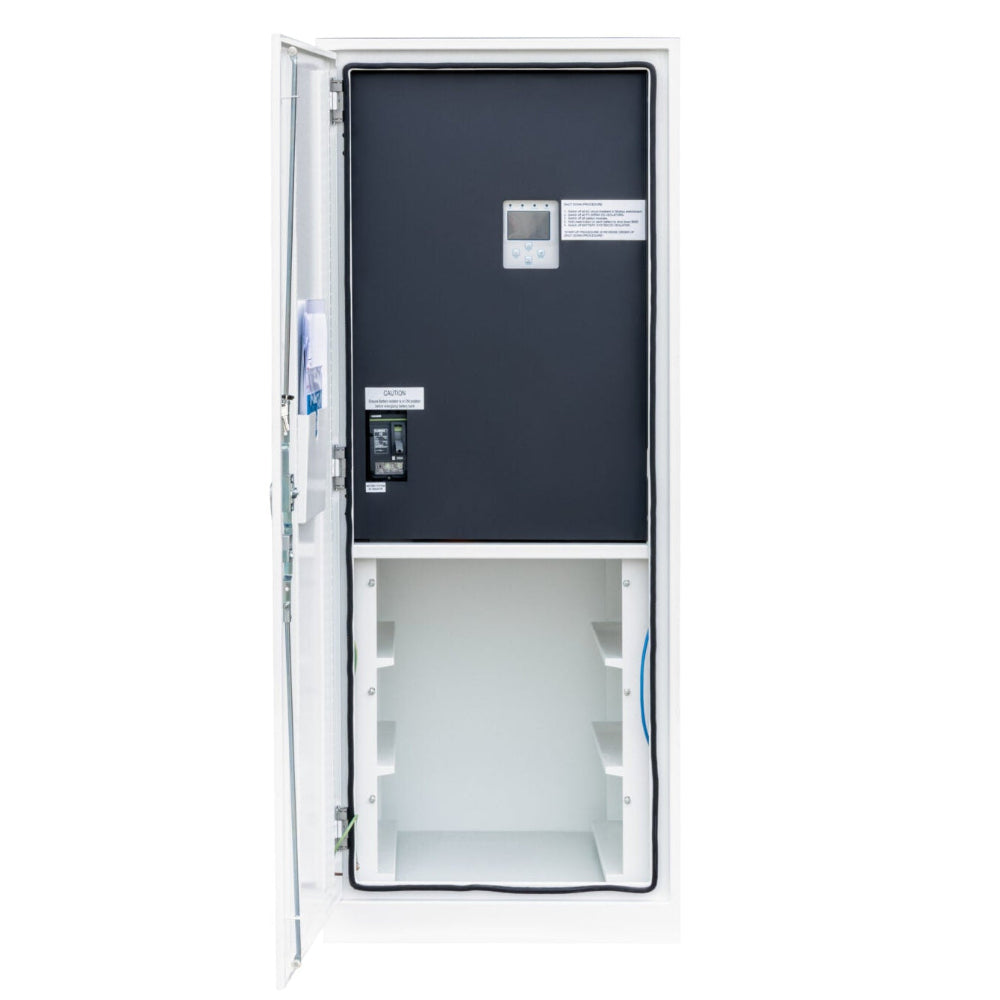

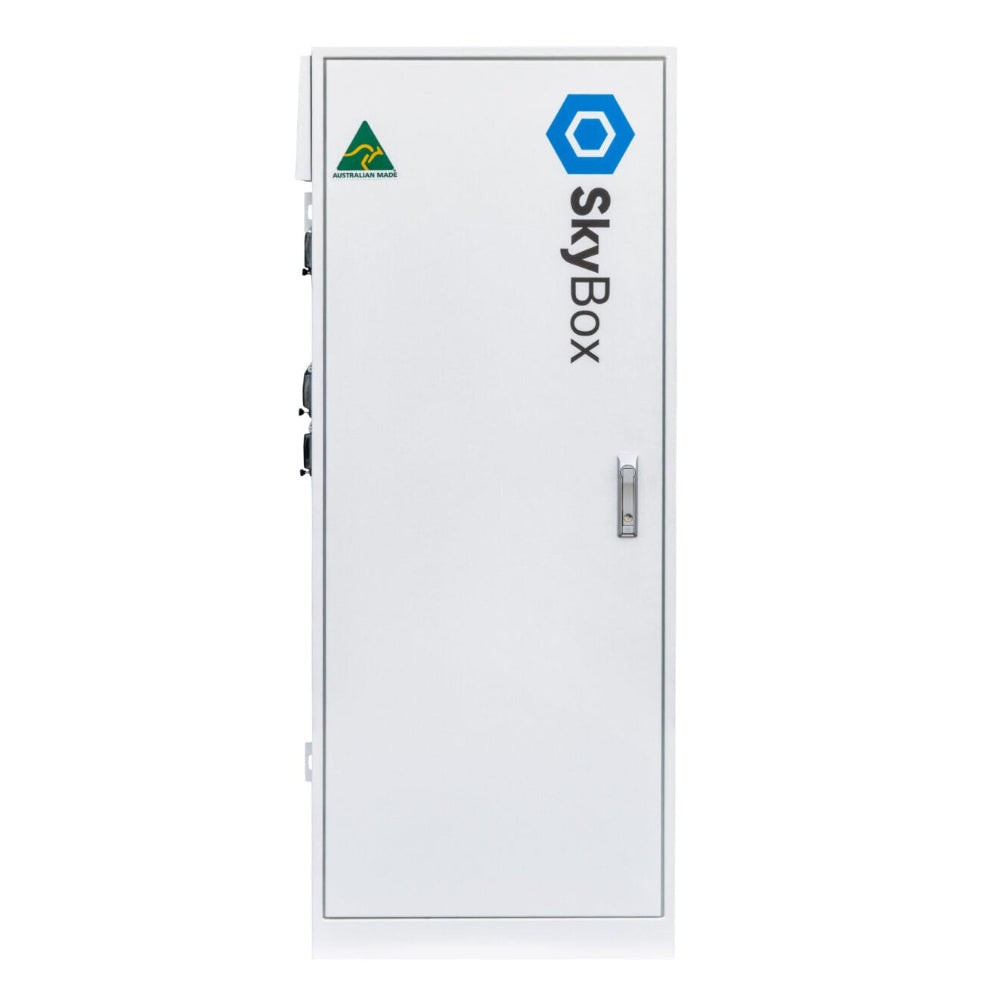

The Sky Energy SkyBox Mini is a compact all-in-one hybrid energy storage system designed for tiny homes, cabins, studios, sheds and remote properties.
Its flexibility can also supplement grid connected homes.
Primarily designed for off grid applications, combining a hybrid inverter, lithium battery storage and smart energy management in a single weather-protected cabinet. Delivering dependable power while minimising installation space.
With support for solar, wind and hydro energy sources, the SkyBox Mini provides a versatile and practical solution for both standalone and grid connected energy systems.
Available in 5kW and 8kW single phase models, the SkyBox Mini offers high performance in a compact size. Each system accommodates up to 15.36kWh of integrated BSLBATT lithium battery storage, delivering reliable power day and night, with a long design life and a durable IP54-rated enclosure for Australian conditions.
Main Features
All-in-One Design – Inverter, battery storage and energy management are integrated into a single cabinet, simplifying installation and reducing footprint.
Hybrid & Off-Grid Ready – Works with solar PV and can also manage energy from wind or hydro sources for greater energy independence.

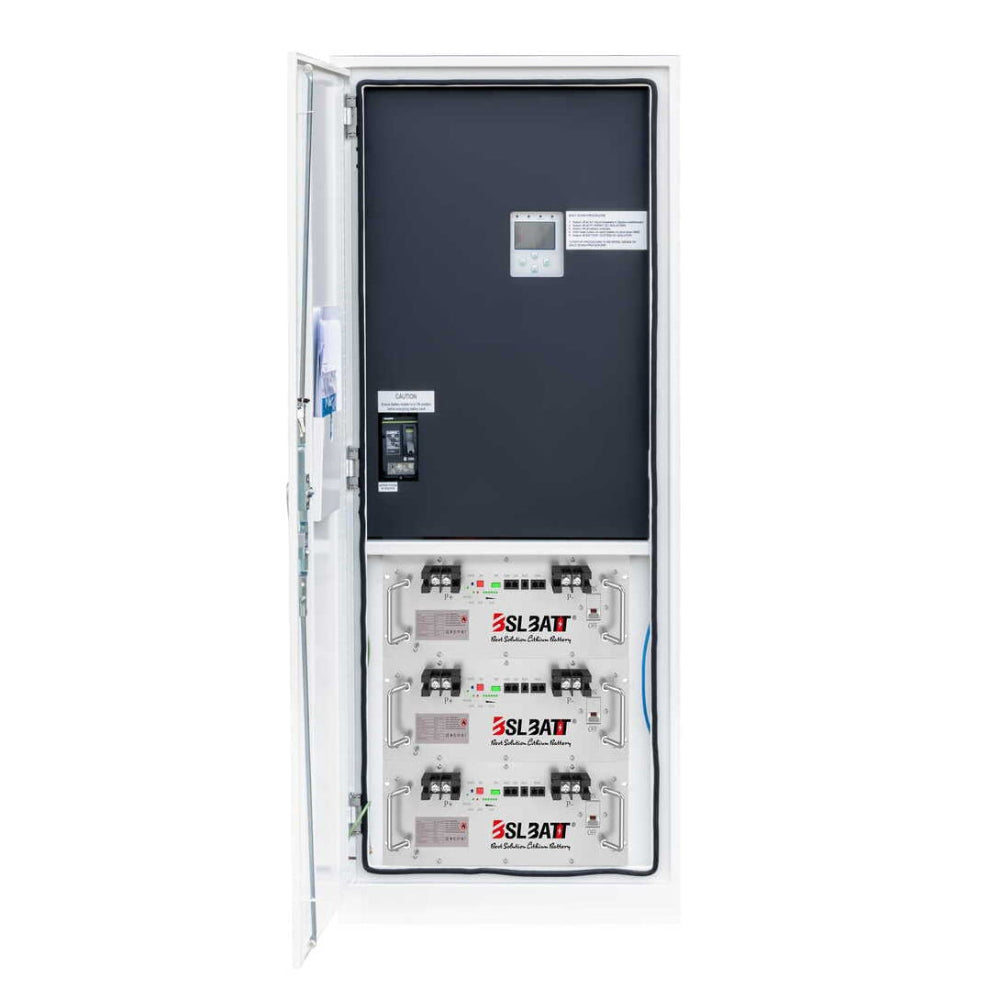

Expandable Battery Storage – Supports up to three BSLBATT battery modules, providing up to 15.36kWh of usable storage.
High Solar Efficiency – Dual MPPT technology with up to 99.9% MPPT efficiency helps maximise solar energy harvest.
Built for Australian Conditions – IP54-rated enclosure with a compact 600 × 600 mm footprint, making it suitable for indoor or sheltered outdoor installations.
Long Service Life – Lithium batteries offer 6,000+ cycles, a 15+ year design life, and a 10-year warranty (70% capacity retention).
Quick Specs
Inverter
-
Models:
5kW,SBX5S-M
8kW SBX8S-M - Output Voltage: 230V AC, 50Hz Single Phase
- Max Efficiency: 97.6%
- Solar Input: Up to 15kW (model dependent)
- MPPT Efficiency: 99.9%
- Hybrid & Off-Grid Operation
Battery
- Battery Type: BSLBATT Lithium (48V)
- Maximum Capacity: 15.36kWh (3 modules)
- Cycle Life: 6,000+ cycles
- Design Life: 15+ years
- Operating Temperature: 0°C to +60°C
- Warranty: 10 Years (70% capacity retention)
- Enclosure Rating: IP54
