Selectronic Select.live 2: remote monitoring for your SP PRO system
Works with Selectronic SP PRO Series 2 and 2i inverters. One Select.live unit monitors one system, however many SP PRO inverters that system contains.
Select.live 2 is the box that puts your energy system on your phone. It plugs into the SP PRO, connects to your home network by Wi-Fi or cable, and sends live data to a secure web dashboard you can open from anywhere. It is also what unlocks the extra five years of SP PRO warranty when you register it.
Selectronic Select.live 2 Main Features:

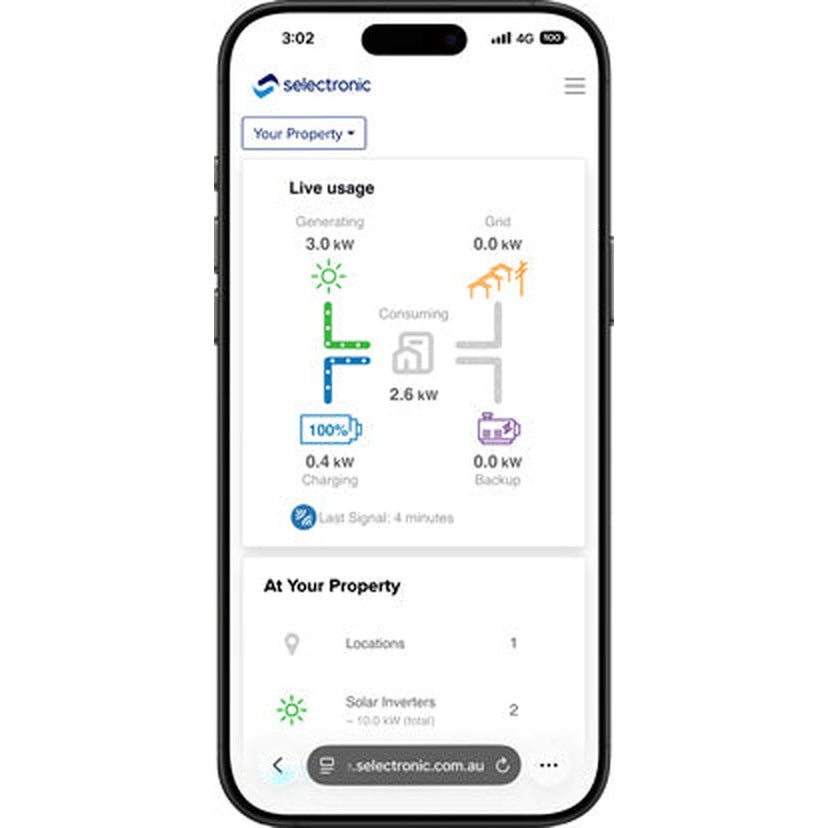

See the whole system at a glance. A live dashboard shows solar generation, what the house is using, what is going in and out of the battery, and what the grid or generator is doing.
Alerts by SMS and email. If something is wrong you hear about it, rather than finding out when the lights go off.
Meets the emergency backstop rules. Compliant with CSIP-Aus and carrying an AS/NZS 4755 demand response interface, which several Australian networks now require for new connections.
Proper analytics, not just a pretty graph. Energy generation, solar self consumption, generator run time, generation trends and battery performance, filtered how you want them.
Your installer can help without driving out. Give your installer access and they can diagnose the system remotely, which usually costs a lot less than a site visit.
Several sites, one login. Installers, retailers and network operators can manage a whole fleet from a single account.
Carbon meter. Tracks the emissions your system has avoided, if you like seeing that number go up.
Built to be left alone. IP43 rated, UV resistant housing on a powder coated aluminium bracket, with encrypted data and role based access on the portal side.
Selectronic Select.live 2 Quick Specs:
- Selectronic order code: 005469
- Compatibility: Selectronic SP PRO Series 2 and 2i
- Units required: One per system
- Dimensions (w x h x d): 237 x 241 x 63mm including antenna
- Weight: 650g
- Housing: UV resistant ASA UL94HB, powder coated aluminium bracket
- Ingress protection: IP43
- Operating temperature: 0°C to 60°C
- Operating humidity: 5% to 95%, non condensing
- Power: 12V DC plug pack, 1.5A max
- Wi-Fi: 2.4GHz and 5.0GHz, IEEE 802.11 b/g/n/ac
- Ethernet: 10/100Mbps IEEE 802.3
- Serial: 1 x RS232 to 115200bps, 1 x RS485 to 9600bps
- Demand response: 1 x AS/NZS 4755 compatible DRED interface
- Regulatory compliance: CSIP-Aus, emergency backstop
- Standards: AS/NZS 62368.1:2022, AS/NZS CISPR 32:2020
- Security: Role based access, data encrypted at rest and in transit, periodic penetration testing
About Selectronic
Selectronic is an Australian owned company, based in Victoria, that has designed, manufactured and supported its energy systems here since 1964. The SP PRO is built in Australia, and so is the engineering support behind it.
