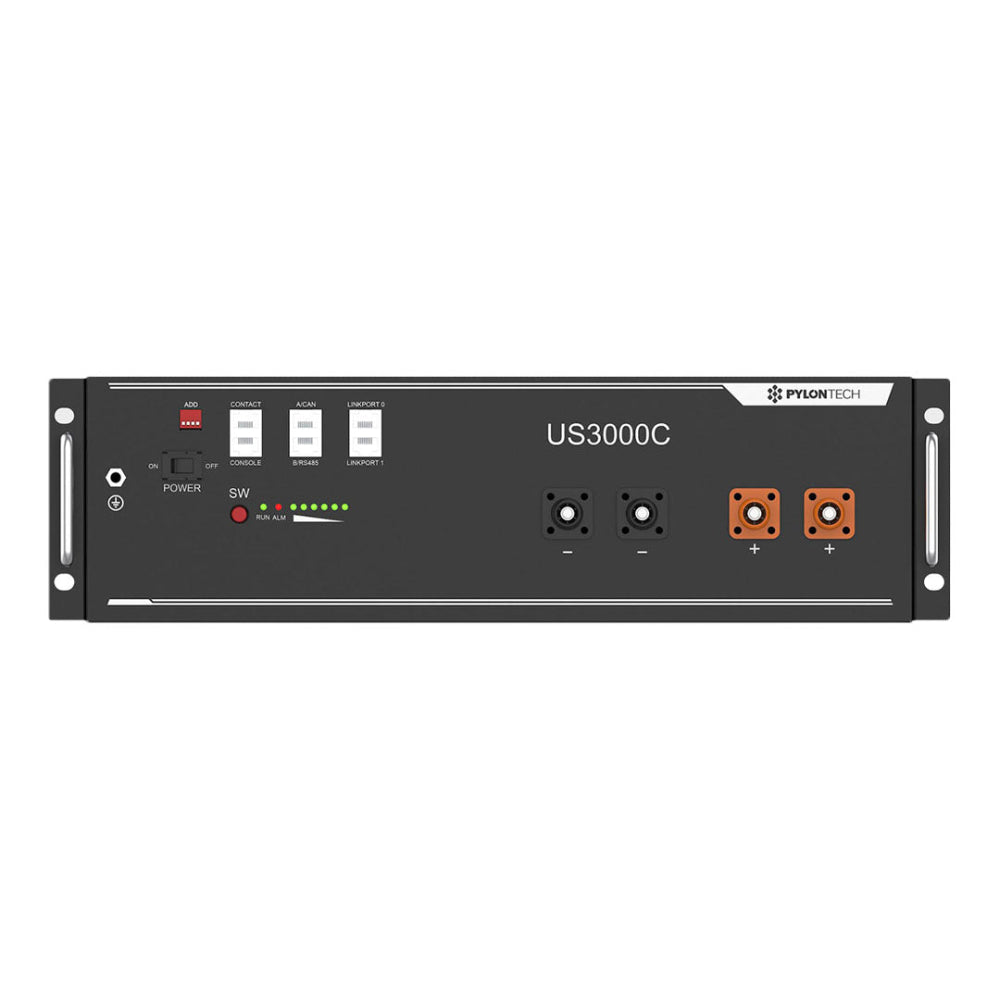

Pylontech US3000C 48V 3.55kWh LiFePO4 Battery - 63000-004C
- Description
- Specifications
- Manual
- Find my kit
- Why Buy from Buzz?
- Disclaimer
- FAQ's and Guides
The Pylontech US3000C battery module offers a dependable 48V storage solution designed to support modern home energy systems.
Their modular format allows flexible setup for new or expanding installations, helping homeowners manage daily energy use more efficiently. Built with a long cycle life of over 6,000 cycles and natural cooling, US3000C batteries deliver stable, low-maintenance operation. Each unit provides high usable capacity - 3374Wh, for supporting consistent backup and day-to-day energy shifting without unnecessary complexity.
Designed to integrate smoothly with leading inverter brands, the system supports easy scaling with up to 16 modules per string. Its compact design and rack-mount layout make installation straightforward, while multi-level protection from the built-in BMS enhances overall safety.
Click Here to View Pylontech US5000 48V 4.8kWh LiFePO4 Battery
Main Features
Long Cycle Life – With over 6,000 cycles at 25°C, the modules support many years of daily use, making them suitable for continuous energy shifting and backup.
Scalable 48V Design – Up to 16 modules can be connected in a single string, allowing system growth as energy needs increase.
High Usable Capacity – Each model offers a high depth of usable energy, helping reduce grid reliance during peak times.
Built-in Safety Protections – A self-developed BMS provides multi-layer safeguards against overheating, overcharging, and other electrical risks.
Broad Compatibility – Works smoothly with major inverter brands to support a wide range of residential ESS setups.
Quick Specs
-
Nominal Voltage: 48V
-
Usable Capacity: 3374Wh (US3000C)
-
Max Continuous Current: 37A (US3000C)
-
Dimensions: 442×420×132 mm
-
Weight: 32 kg
-
Operating Temp: Charge 0–50°C / Discharge -10–50°C
-
Cycle Life: >6,000 cycles at 25°C
- Certifications: UL1973, UL9540A, IEC62619, UN38.3 and more
Important Note For Victron-Based Systems:
Pylontech US2000, US3000 and US5000 batteries use 15 cells in series, while most other LiFePO₄ batteries use 16 cells. When a Victron system charges to 53.2V, a 16-cell battery spreads that voltage across 16 cells (about 3.32V per cell). A 15-cell battery has to spread the same total voltage across only 15 cells, which means each cell sits higher voltage (about 3.55V per cell). Because the cells are operating closer to their upper limit, some systems may show a high voltage warning during the final stage of charging. Lowering the maximum charge voltage slightly (for example, to 52.4V) reduces the voltage on each cell and can help prevent these warnings, with little change to usable capacity
