Noark DIN Rail Mount Fuse Carriers

by noark
$18.00

Customers please Note:

Shipping is free on most orders within Australia; however, some heavy or bulky items may require specialised freight at additional cost. While we aim to keep shipping free wherever possible, regional and remote areas may attract additional charges depending on location and freight requirements.

For tailored quotes or to confirm shipping costs, please get in touch.
For more details on shipping and delivery, please click here.

Notify me when back in stock

Noark DIN Rail Mount Fuse Carriers (also known as a fuse holder) is a protective housing or mounting device designed to safely hold and connect a fuse in an electrical circuit.

It provides the mechanical and electrical interface between the fuse and the circuit, and allows for easy installation, replacement, and isolation of the fuse.

Note: Minimum order value of $50 applies to qualify for free postage on this item.

NOARK N85515‑EXFP‑2P‑20A/1000VDC (Double‑pole, 20 A)

  • A 2‑pole DC fuse carrier designed for photovoltaic (PV) string protection, rated at 1000 V DC, and for fuse-links sized 10 × 38 mm. It includes a built-in LED fuse integrity indicator to show when a fuse has blown
  • Rated up to 30 A, but the specific model you asked for is 20 A, matching part number N85515‑EXFP‑2P‑20A/1000VDC
  • Compact form factor (~18 mm width × 89 mm height, ~80 mm depth), DIN‑rail mountable, similar in profile to a miniature circuit breaker
  • Suited for solar PV, telecom, automation, and industry DC systems; ideal for fault‑finding across multiple strings due to the visual LED indicator

Quick Specs

  • Rated Voltage: 1000 V DC
  • Rated Current: 20 A (using compatible gPV fuses)
  • Poles: 2‑pole (double pole) configuration
  • Supported Fuse Size: 10 × 38 mm gPV fuse links (e.g. Noark
  • 30F20PV‑10×38‑20A/1000VDC)
  • Dimensions: ~18 mm (W) × 89 mm (H) × 80 mm (D)
  • Weight: ~0.26 kg

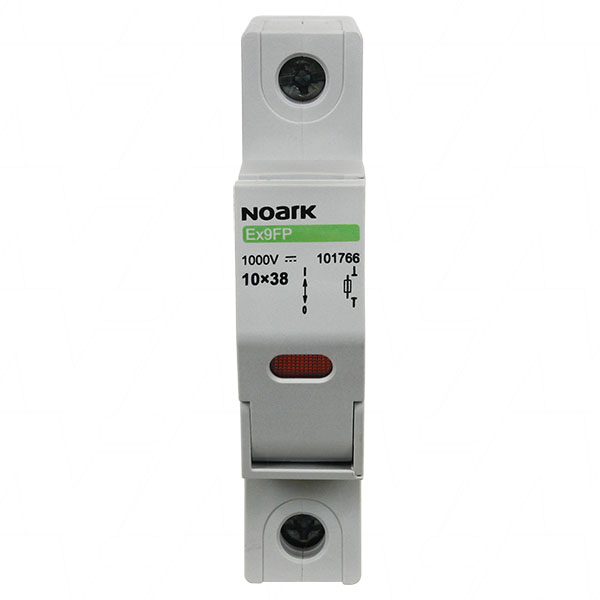

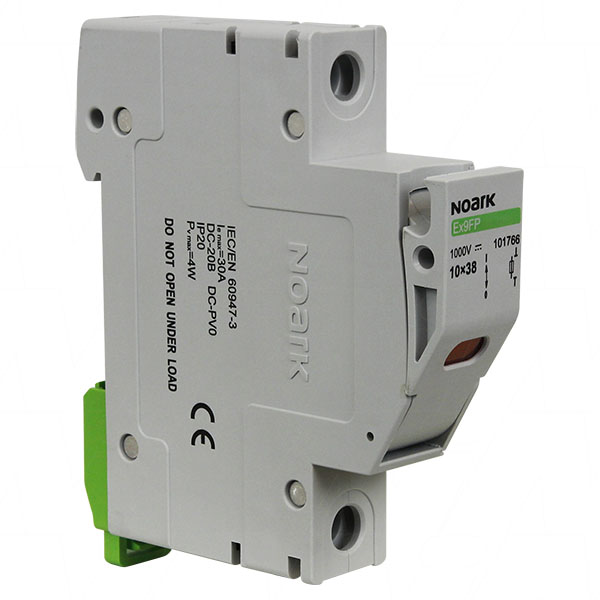

NOARK N85500‑EX9FP‑1P‑30A/1000VDC (Single‑pole, 30 A)

  • A 1‑pole DC fuse carrier, also for PV string protection, rated 1000 V DC, compatible with 10 × 38 mm fuse-links, part number N85500‑EX9FP‑1P‑30A/1000VDC
  • 30 A current rating, includes LED fault indicator, rated interrupting capacity up to ~33 kA (depending on fuse used)
    noark.au
  • Similar compact dimensions (18 mm width, 89 mm height, ~80 mm length), DIN‑rail mountable, MCB‑style profile
    batteriesdirect.com.au
  • Optimised for single‑string PV protection or control circuits in DC environments.

Quick Specs

  • Poles: 1 (single-pole, i.e. isolating one conductor)
  • Rated Current: up to 30 A
  • Rated Voltage: 1000 V DC
  • Fuse Compatibility: 10 × 38 mm gPV fuse links
  • Short-Circuit Breaking Capacity: up to 33 kA with appropriate fuse link
  • Optical Fault Indicator: LED on front panel that lights when the fuse blows
  • Form Factor: approx. 18 mm wide × 83 mm high (89 mm including rail clip) ×
  • about 80 mm deep; weight ~0.20 kg
  • Mounting: DIN‑rail compatible (e.g. TH35) — feels and fits similar to miniature circuit breakers (MCBs)
  • Utilisation Category: DC‑20B (suitable for PV and DC applications)
Feature N85515‑EXFP‑2P‑20A N85500‑EX9FP‑1P‑30A
Poles 2‑pole 1‑pole
Current rating 20 A 30 A
Voltage rating 1000 V DC 1000 V DC
Fuse-link size 10 × 38 mm 10 × 38 mm
Form factor ~18 mm × 89 mm ~18 mm × 89 mm
Mounting style DIN‑rail DIN‑rail
Fault indicator Yes (LED) Yes (LED)
Typical application Dual‑string PV systems Single‑string PV or DC

When To Use Which?

  • Choose N85515 if you need dual-pole protection, e.g. two parallel PV strings or feed lines, with a 20 A current limit.

  • Choose N85500 if you only need single-pole protection at up to 30 A, typical for single string or control circuits.

Noark 30F20PV-10x38-20A/1000VDC gPV Fuse

A gPV fuse (general photovoltaic fuse) is a special type of DC-rated fuse designed specifically for protecting photovoltaic (solar) systems. Here's a quick guide to what they are and how to choose the right one for your system.

Quick Specs

  • Rated for 20 A at 1000 V DC, designed specifically for photovoltaic string protection
  • Physical dimensions: 10 × 38 mm fuse link
  • Curved characteristic: gPV curve, engineered to blow reliably even under low-level overcurrent conditions typical in PV systems (reverse current or multi-array fault)
  • Rated breaking capacity: typically 30 kA DC, matching PV fault conditions (IEC 60269‑6 compliance)
