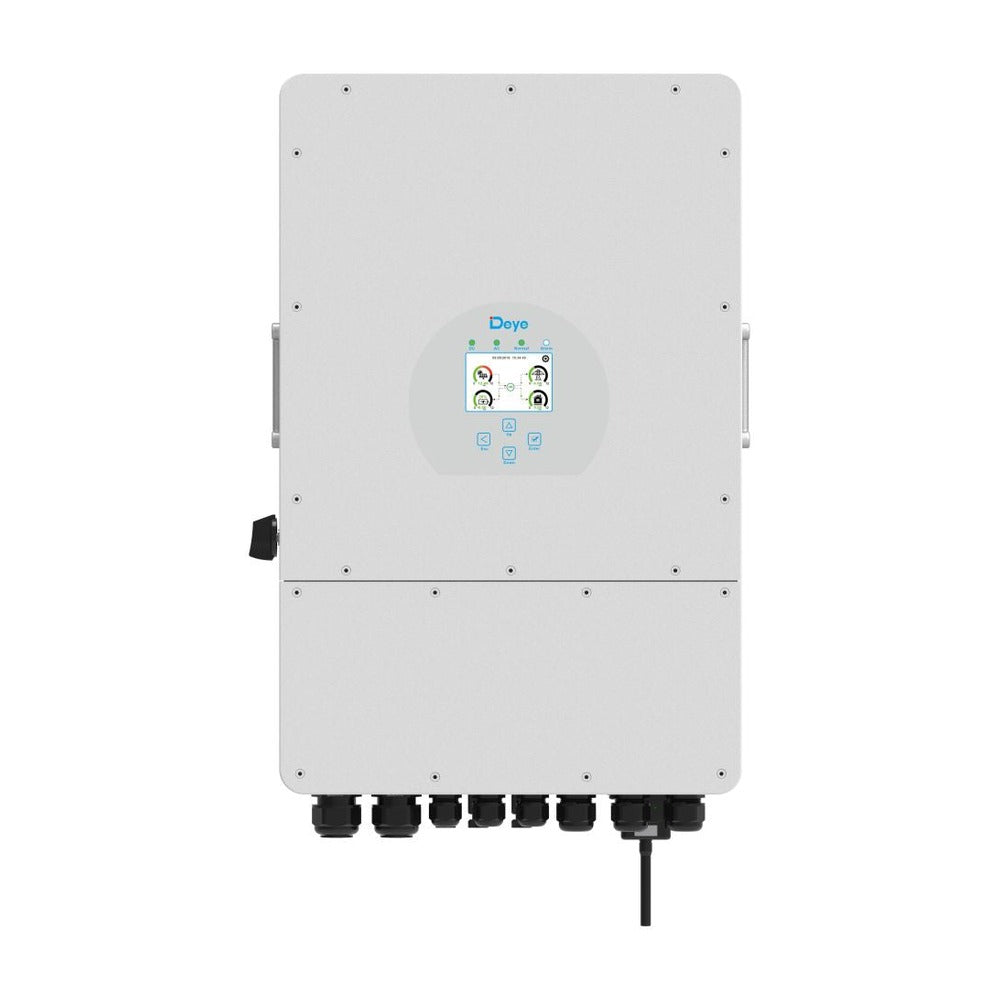

The Deye SUN-6K-SG04LP3-AU 6kW 48v 3 Phase Hybrid Inverter is a reliable three-phase hybrid inverter that supports a range of energy sources, including solar panels, batteries, and diesel generators. It offers flexible energy management making it suitable for different energy needs. This inverter is ideal for those looking to integrate or upgrade their energy system.
Main Features:
Hybrid Functionality: Supports solar, battery, and diesel generator integration for versatile energy management.
High Efficiency: Up to 97.6% conversion efficiency ensures optimal energy use.
Battery Compatibility: Works with both lead-acid and lithium-ion batteries, featuring a 48V low-voltage system for enhanced safety.
Flexible Output: 100% unbalanced output, allowing power distribution across phases based on demand.
Parallel Operation: Supports up to 16 units in parallel for scalable energy systems, both on-grid and off-grid.
Safety Protections: Equipped with overcurrent, overvoltage, thermal, and short-circuit protection.
Durability: IP65-rated for protection against dust and water, and intelligent air cooling for efficient temperature management.
Energy Storage: Capable of storing energy from diesel generators and managing multiple battery systems.
Monitoring Options: Integrated communication interfaces (RS485/CAN) with optional GPRS, WiFi, Bluetooth, or 4G for remote monitoring.
The Deye Hybrid Inverter design provides multiple functions in a single unit, reducing the need for multiple separate components.
This integration simplifies the installation process and minimises space requirements, offering a practical solution for harnessing solar energy efficiently.
During daylight hours, like regular Solar Inverters, Deye Hybrid Inverters facilitate the use of electricity generated by your PV system directly for powering household appliances. This direct usage helps in reducing reliance on grid power and can lead to significant energy savings.
Excess solar energy that isn't immediately used is smartly managed by the Deye Hybrid Inverter and surplus power is utilised to charge your battery storage system. Once the battery is fully charged, the inverter then automatically exports the remaining excess energy to the grid.
Versatile 100% Unbalanced 3 Phase Output
Featuring an unbalanced three-phase output extending the application scenarios, along with a compact design and high-power density, this inverter also supports a 1.3 : 1 DC/AC ratio, saving device investment.Seamless Backup Power
This inverter includes an Automatic Transfer Switch (ATS), which ensures a smooth transition to battery power during grid outages, maintaining an uninterrupted power supply. This inbuilt ATS will keep your appliances running without disruption, whilst the battery can also be charged by a connected generator to ensure uninterrupted supply in the event of grid blackout.
In many regions, there are regulations regarding how much solar energy a household can export to the grid.

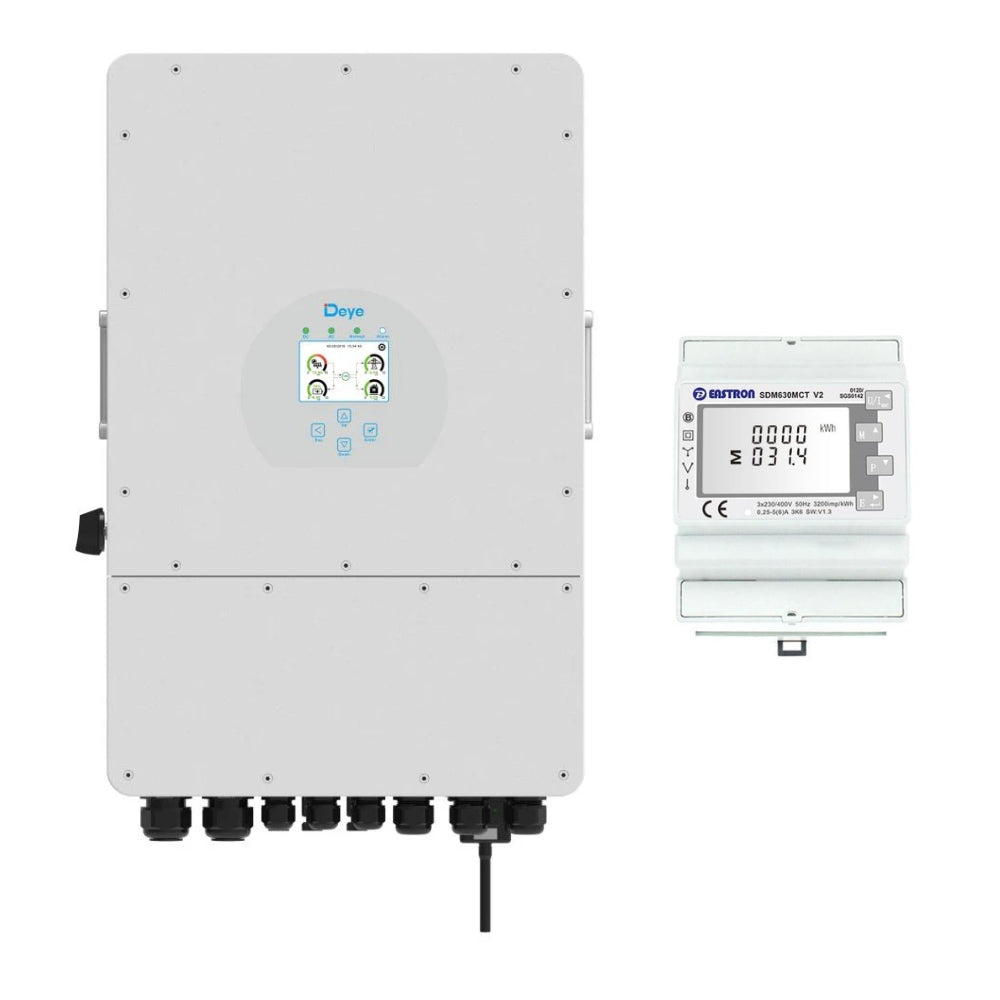

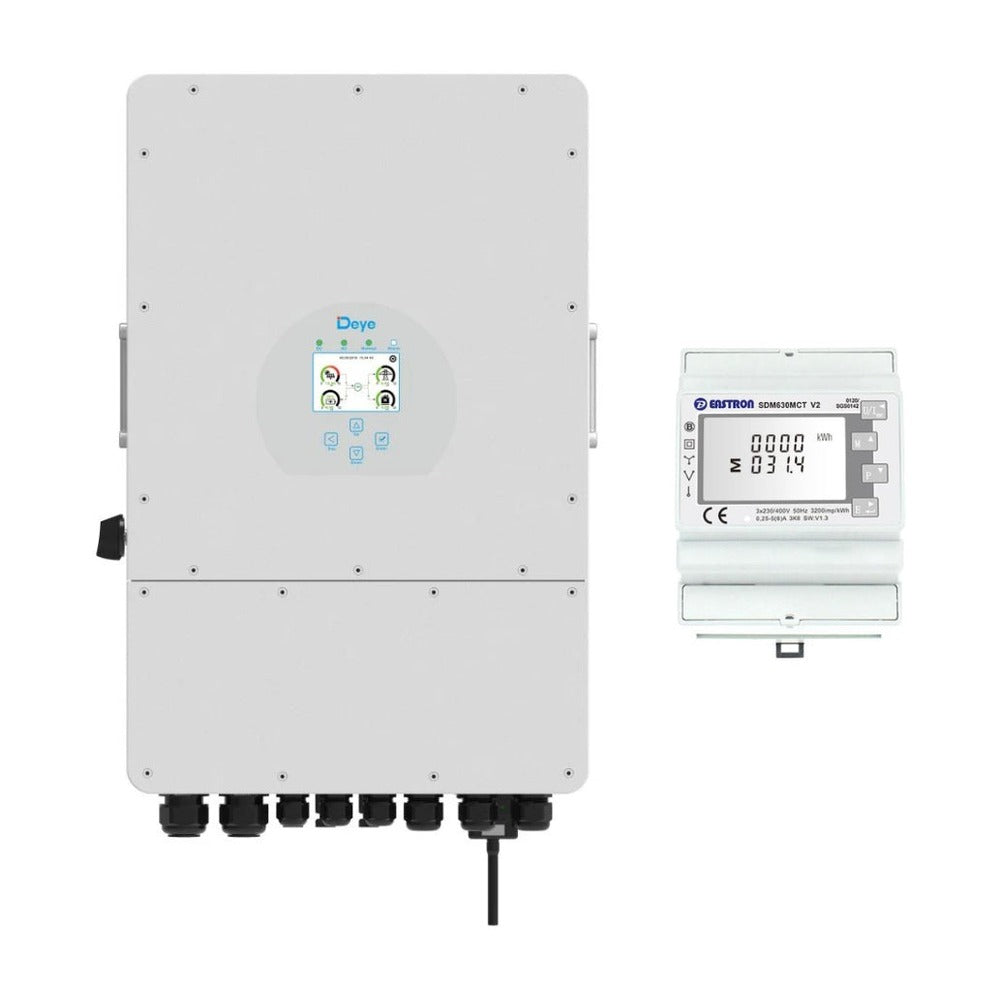

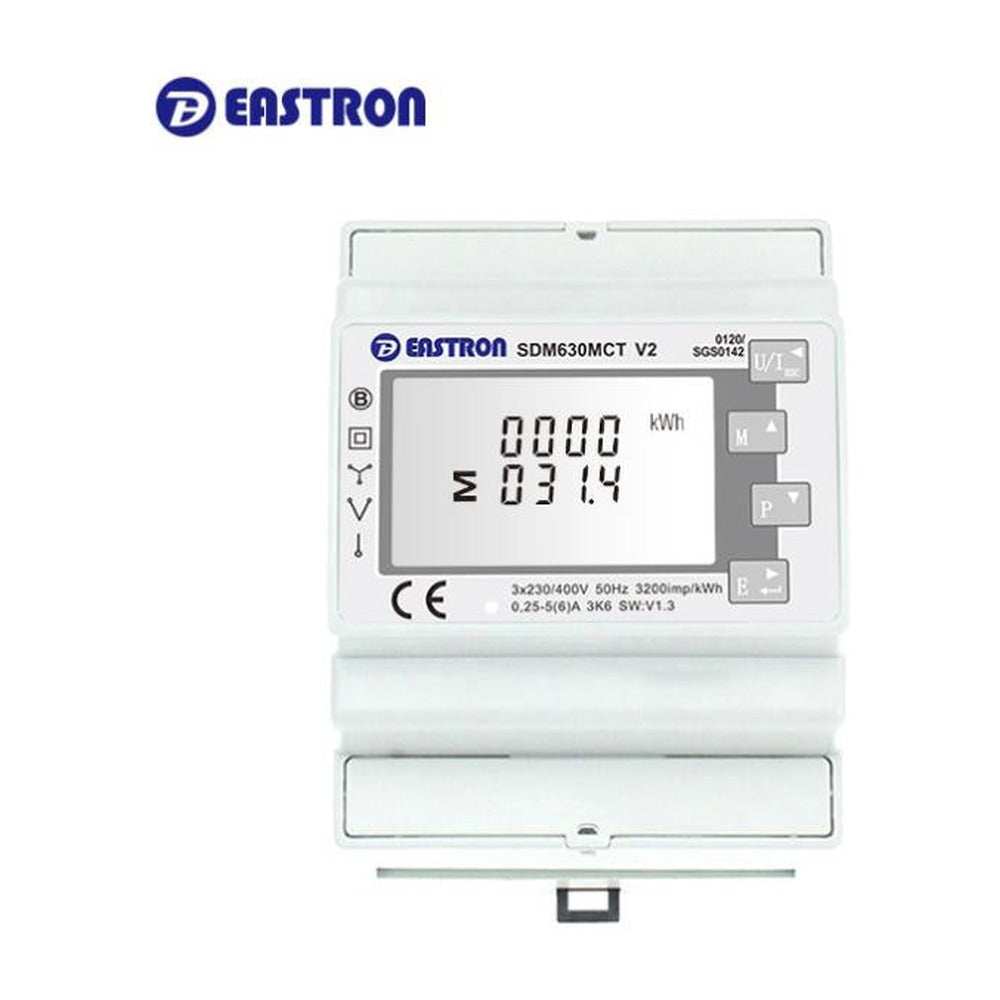

The optional Smart Meter combined with the included Current Transformer (CT) clamp helps the inverter adhere to these regulations by providing real-time data on power flow, which the inverter uses to regulate the amount of energy exported.
By monitoring this energy flow to and from the Grid, your Deye Hybrid Inverter can automatically limit grid export energy. It further enables the inverter to adjust the charging and discharging of the battery system based on the household's energy consumption and production. Combined with user-adjustable parameters, the Smart Meter and CT clamp turn the inverter into a dynamic Energy Storage System (ESS), maximising self-consumption of solar energy, whilst also taking advantage of variable feed-in tariffs.
DEYE Hybrid Inverters are fully compliant with the stringent standards set by the Australian Clean Energy Council (CEC).
This compliance not only assures you of the product’s safety and efficiency but also makes it eligible for various government incentives. Their suitability to Australian conditions and the assurance of meeting national standards make DEYE Hybrid Inverters a smart, cost-effective choice for your energy needs.DEYE Sun hybrid inverters are designed with a versatile second AC input that allows for innovative energy management solutions.
The 'Micro Inv Input' feature enables the Generator input port to be used as an additional input for AC coupled PV with micro-inverters; this feature is also compatible with "Grid-Tied" inverters.
The operation of this feature is linked to the battery's State of Charge (SOC). When the battery SOC is lower than a set value, the microinverter or grid-tied inverter will start to work. Conversely, these inverters will shut down when the battery SOC exceeds the set value. The design allows a flexible and efficient way to add a second PV array, especially in locations distant from the primary DEYE inverter setup. This enhances the overall energy management by AC coupling the second array to shorten the DC cabling.
Quick Specs:
-
Rated Power: 6,000W
-
Max. PV Input Power: 9,000W
-
Battery Voltage Range: 48V
-
Max. Charging/Discharging Current: 240A
-
Rated AC Output Voltage: 230/240V
-
Max. AC Output Power: 6,000W
-
Max. Efficiency: 97.6%
-
MPPT Efficiency: 99.9%
-
Operating Temperature Range: -40°C to +60°C
-
Protection Degree: IP65 (dust and water resistant)
-

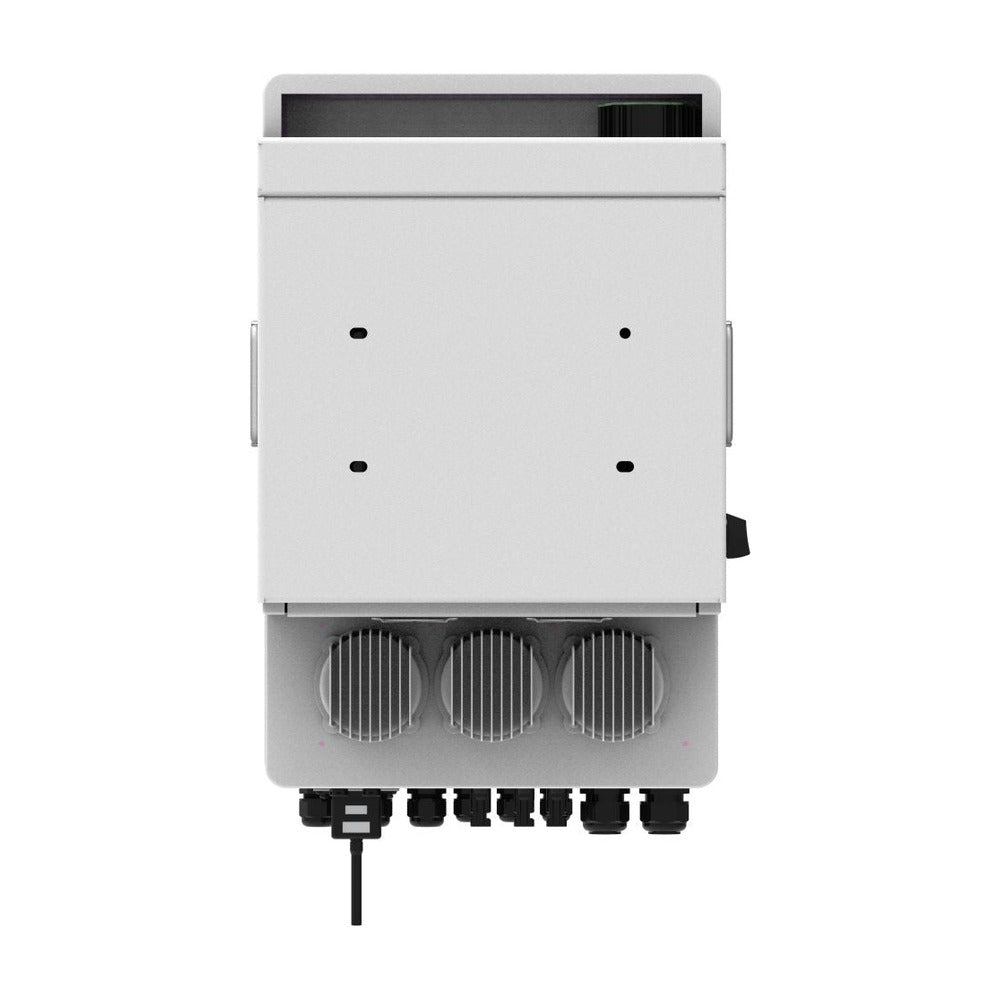

Cooling: Intelligent air cooling
-
Weight: 38 kg
-
Dimensions: 422mm (W) x 658mm (H) x 254mm (D)
-

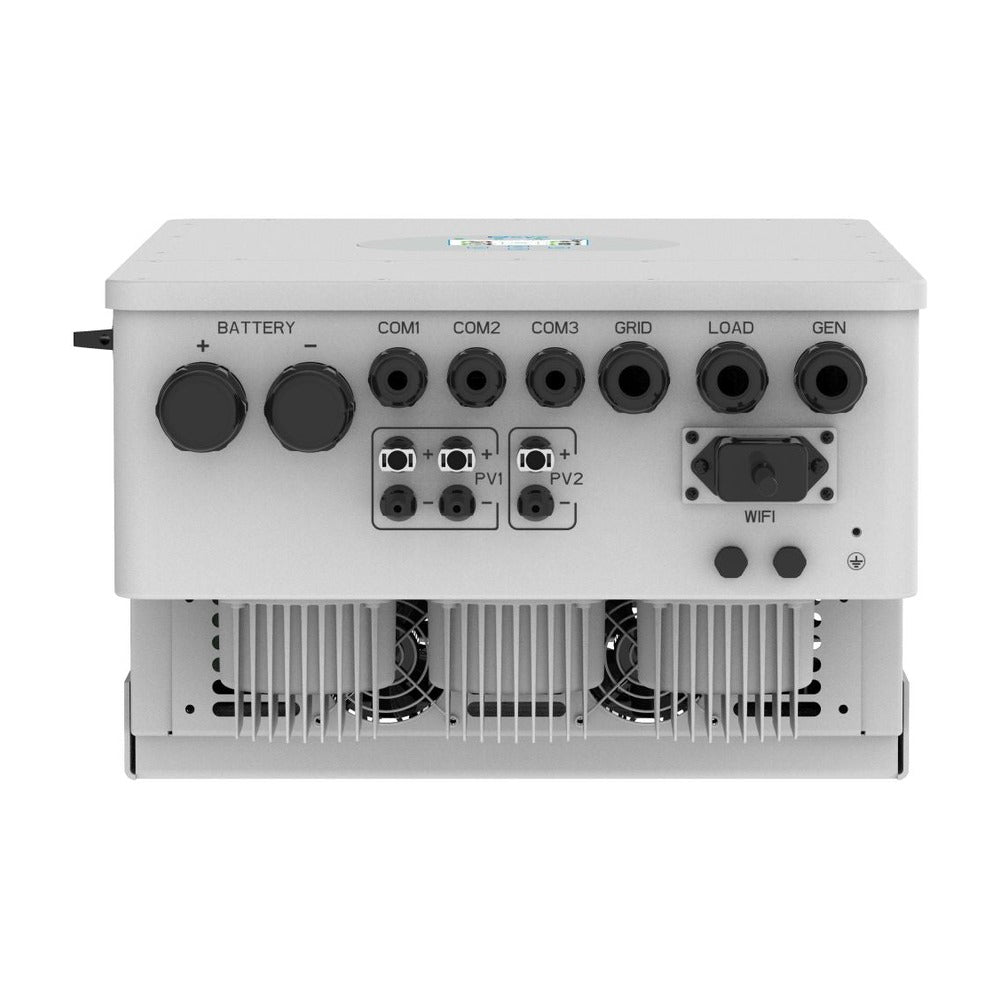

Communication Interface: RS485/CAN (GPRS/WiFi/Bluetooth/4G optional)
