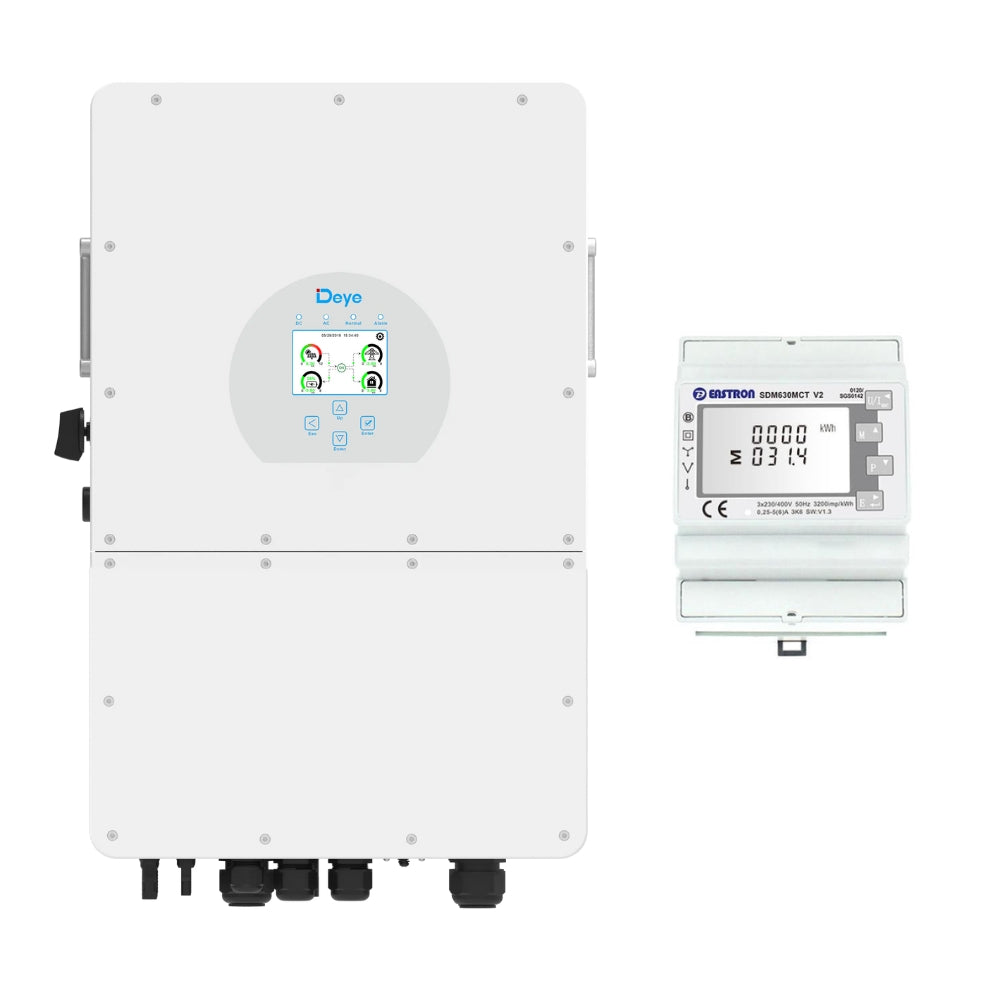

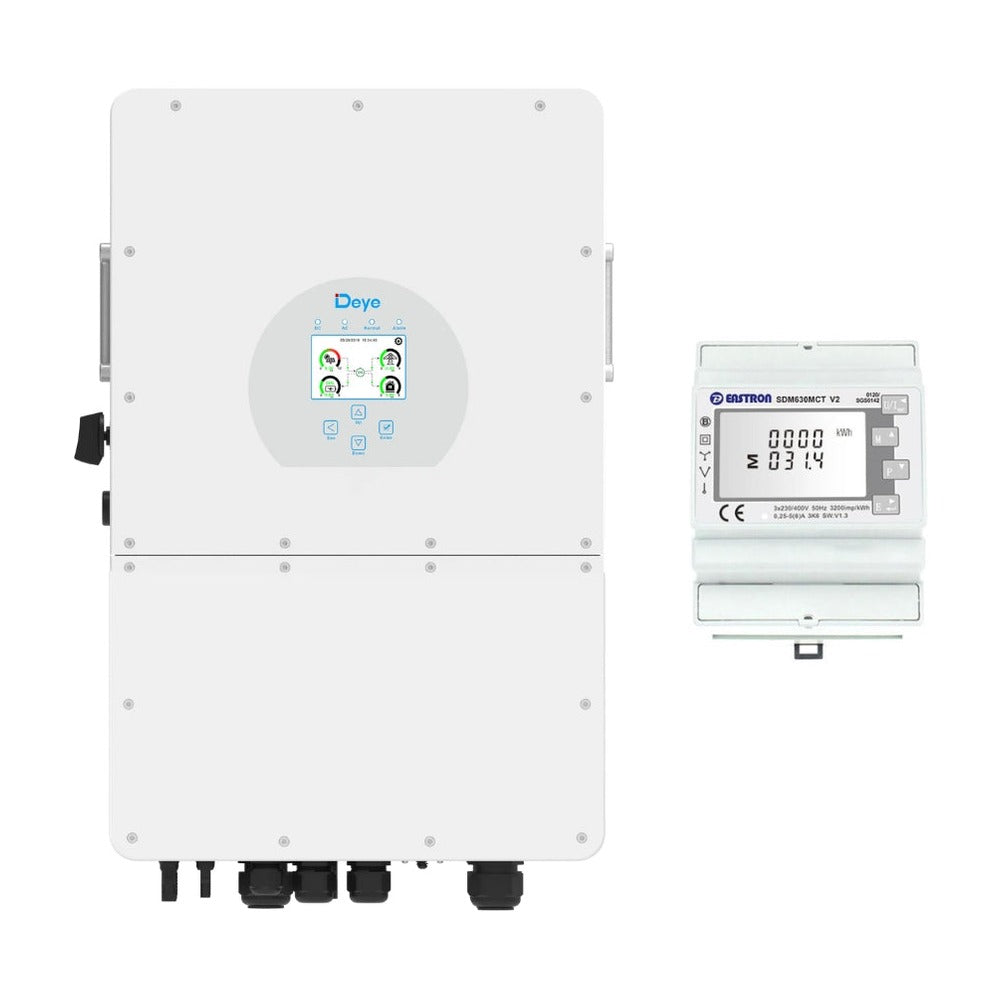

Deye SUN 20K-SG01HP3-AU-AM2 20kW HV 3 Phase Hybrid Inverter - CEC Approved
- Description
- Specifications
- Manual
- Certification
- Warranty
- Find my kit
- Why Buy from Buzz?
- Shipping
- Disclaimer

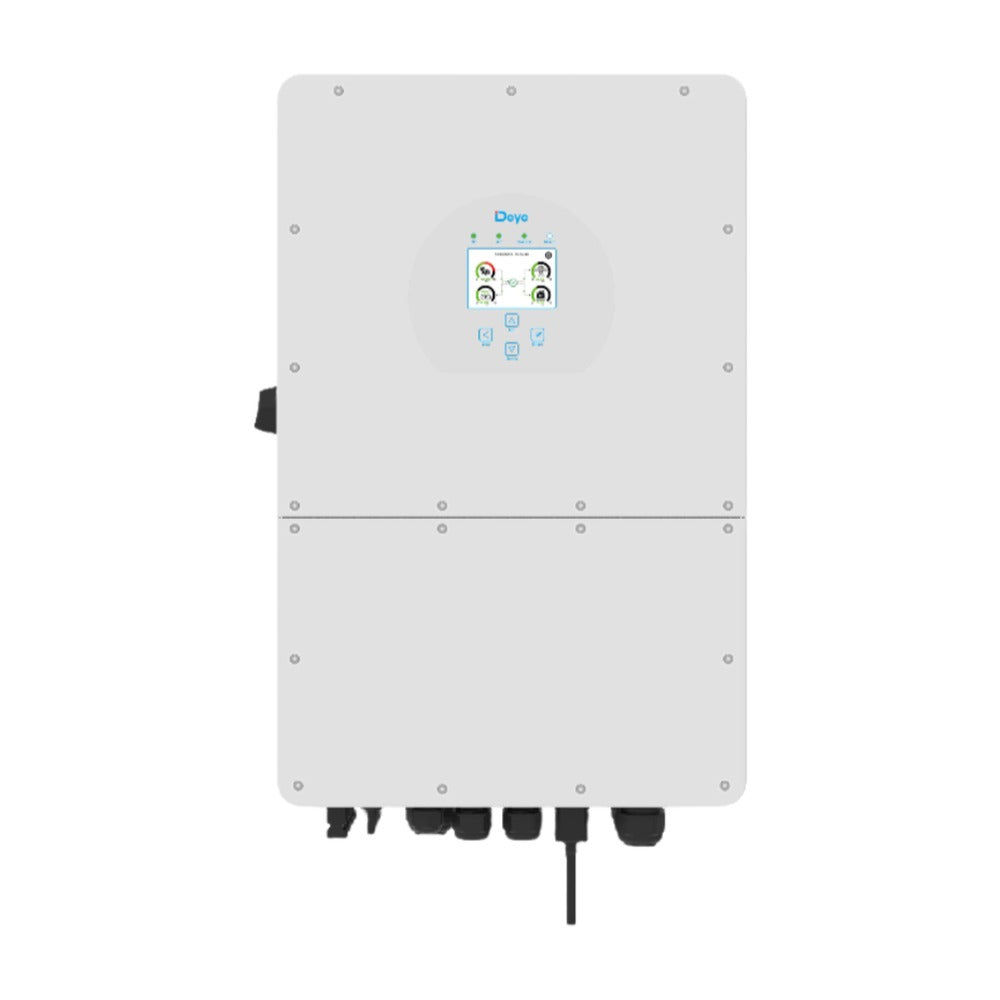

This Deye 20kW High Voltage 3 Phase Hybrid Inverter is a powerful and versatile solution for both residential and commercial solar systems. This hybrid inverter is an ideal choice for anyone looking to upgrade or install a solar system and is designed to maximise energy efficiency and reliability.
Main Features:
High Efficiency: With a maximum efficiency of 97.6% and MPPT efficiency of 99.9%, you can harness more solar power for your needs.
Energy Flexibility: Supports diesel generator input, multiple battery configurations, and up to 16 units in parallel for on-grid or off-grid applications.
Advanced Battery Management: High-voltage battery compatibility ensures efficient storage and usage, with up to 6 customisable charging/discharging periods.
Smart and Safe: Integrated with key protections including anti-islanding, surge and short-circuit protection, ensuring your system runs smoothly and safely. The Deye hybrid inverter series products support remote shutdown immediately when an accident occurs. Setting parameters and firmware updates remotely makes operations and maintenance easier.

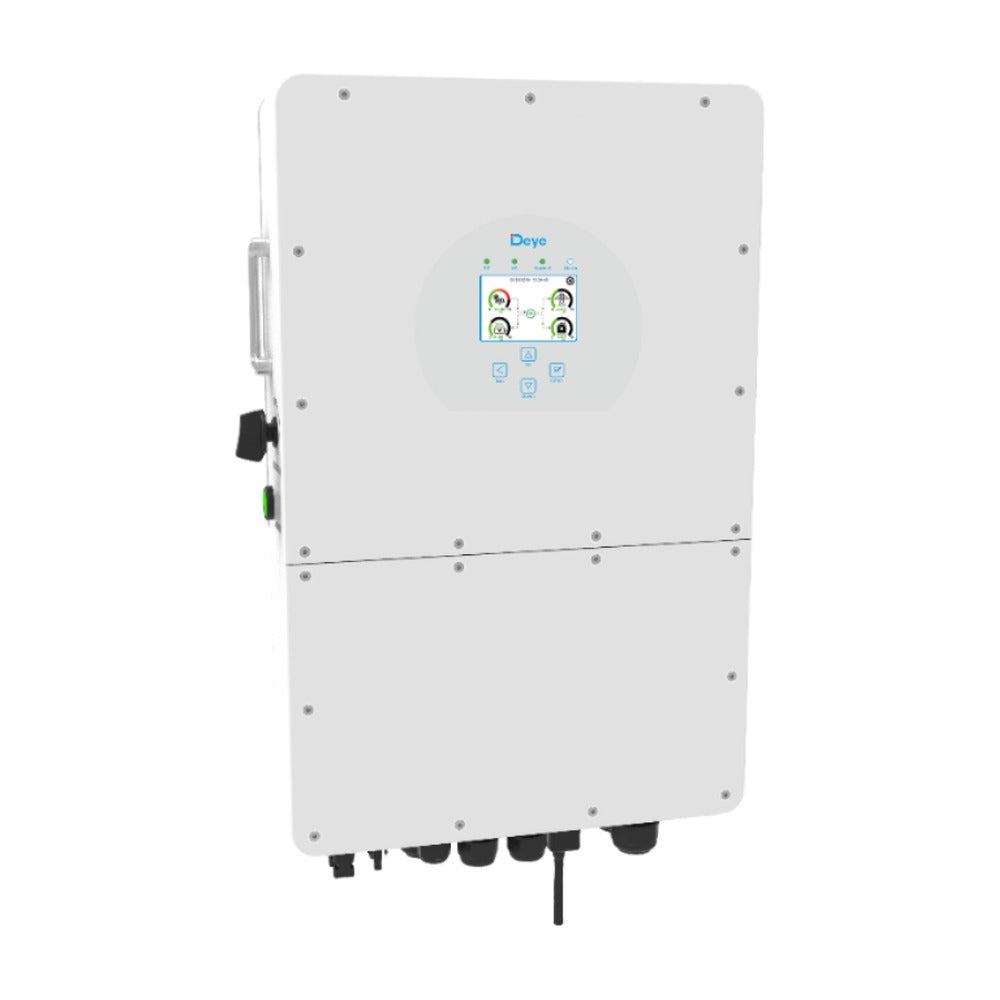

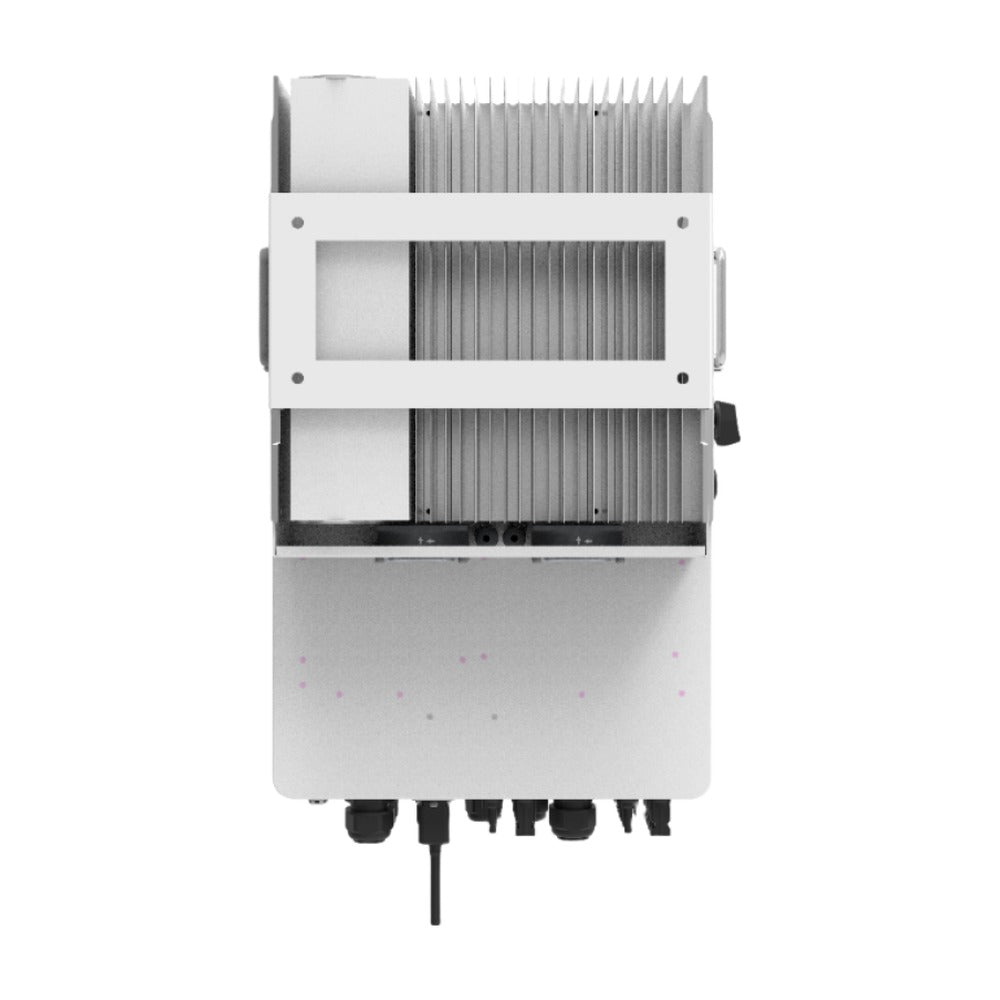

Durable Design: Rated IP65, this wall-mounted unit withstands tough environments whilst remaining quiet, with noise levels below 55 dB.
DEYE Hybrid Inverters are fully compliant with the stringent standards set by the Australian Clean Energy Council (CEC).
This compliance not only assures you of the product’s safety and efficiency but also makes it eligible for various government incentives. Their suitability to Australian conditions, coupled with the assurance of meeting national standards, makes DEYE Hybrid Inverters a smart, cost-effective choice for your energy needs.

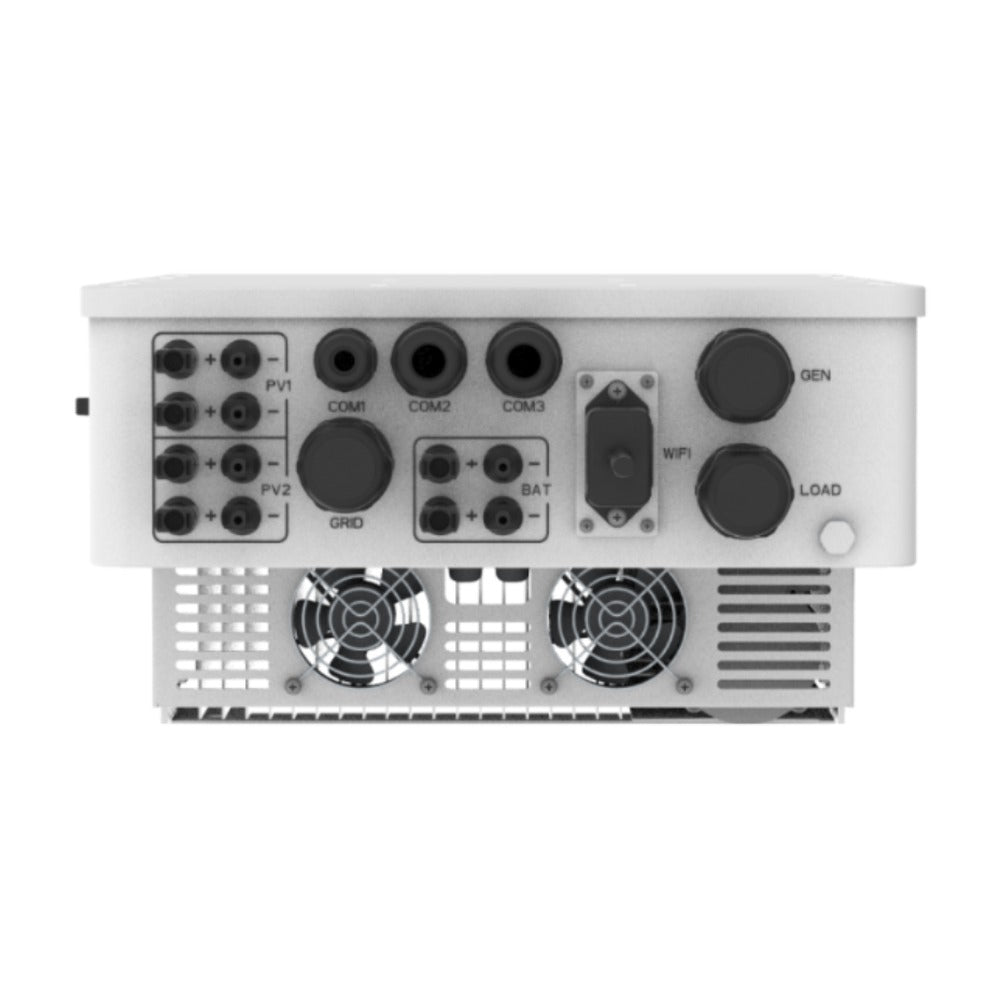

DEYE Sun hybrid inverters are designed with a versatile second AC input that allows for innovative energy management solutions.
The 'Micro Inv Input' feature enables the Generator input port to be used as an additional input for AC coupled PV with micro-inverters; this feature is also compatible with "Grid-Tied" inverters.
The operation of this feature is linked to the battery's State of Charge (SOC). When the battery SOC is lower than a set value, the microinverter or grid-tied inverter will start to work. Conversely, when the battery SOC exceeds the set value, these inverters will shut down. The design allows for a flexible and efficient way to add a second PV array, especially in locations distant from the primary DEYE inverter setup. This enhances the overall energy management by AC coupling the second array to shorten the DC cabling.
Versatile 100% unbalanced 3 Phase Output
Quick Specs:
- 100% unbalanced output, each phase
- AC coupled to retrofit existing solar system
-
Max. PV Input Power: 30,000 W
-
Rated AC Output Power: 20,000 W
-
Max. AC Output Current: 29 A
-
PV Input Voltage Range: 500-850 V
-
Max. Charging/Discharging Current: 50 A
-
Efficiency: 97.6%
-
MPPT Efficiency: 99.9%
-
Cooling: Smart cooling
-
Noise Level: ≤55 dB
-
Dimensions: 408W x 638H x 237D mm
-
Protection Rating: IP65 (dustproof and waterproof)
-
Weight: 30.5 kg
- Operating Temperature: -40 to +60°C
