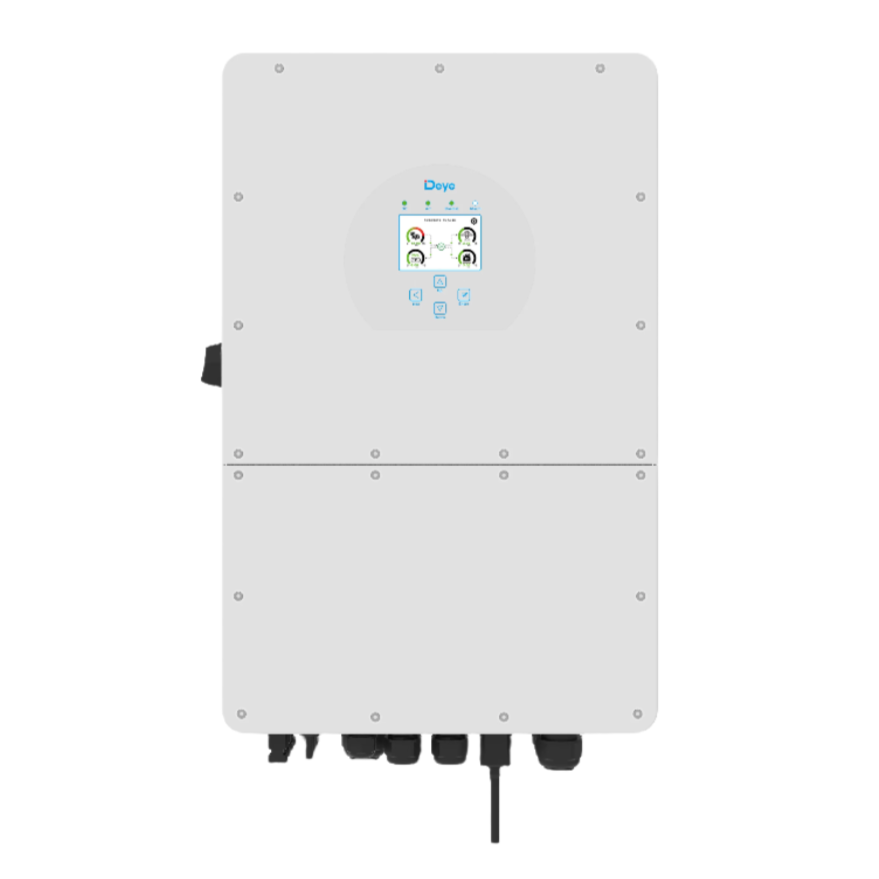

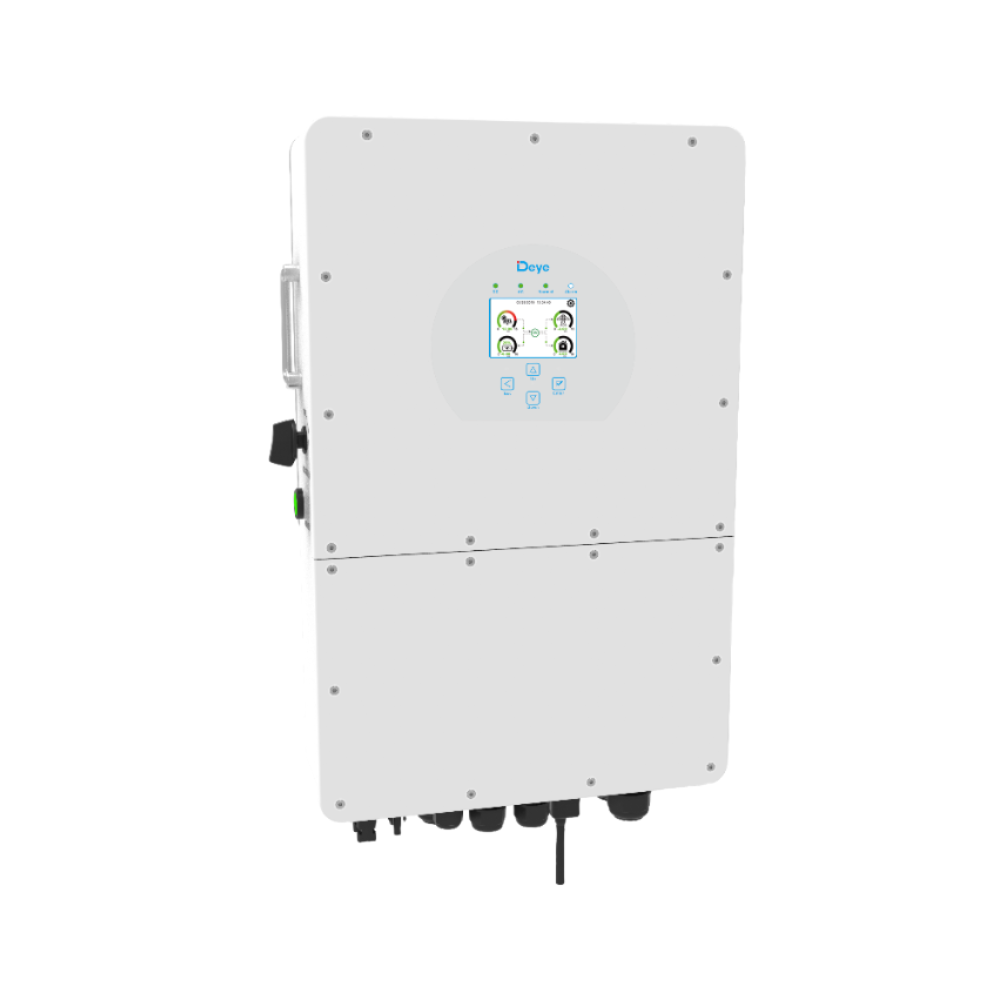

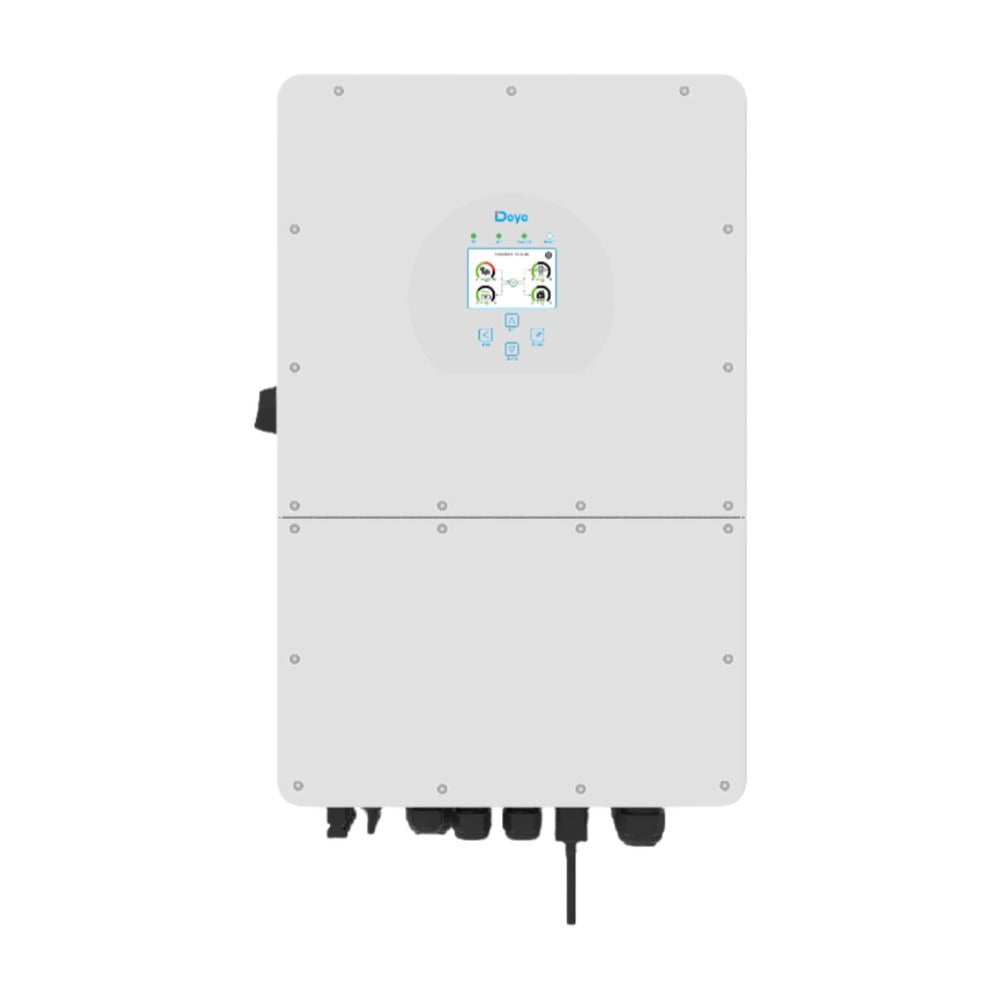

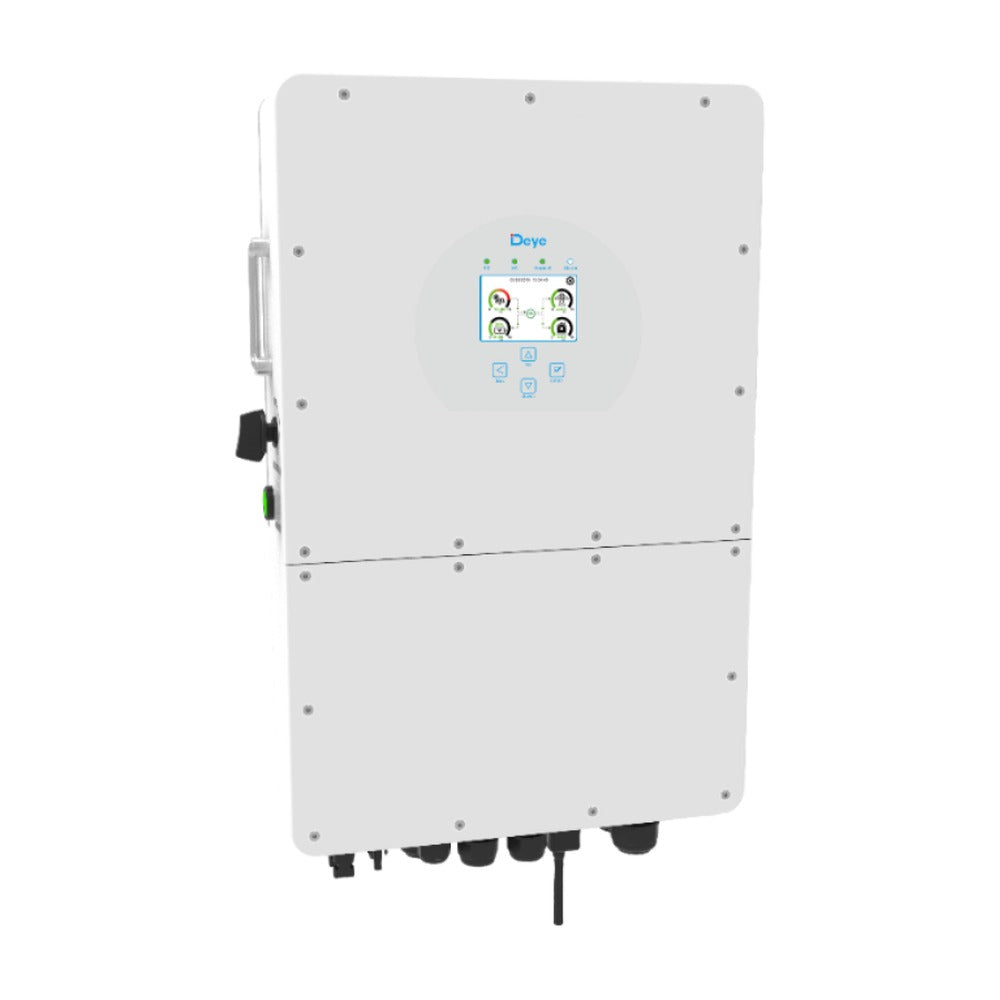

This Deye 12kW High Voltage 3 Phase Hybrid Inverter is a powerful and versatile solution for both residential and commercial solar systems.
This Deye SUN 12K-SG01HP3-AU-AM2 hybrid inverter is an ideal choice for anyone looking to upgrade or install a solar system with battery storage on their 3-phase property and is designed to maximise energy efficiency and reliability.
Main Features:
High Efficiency: With a maximum efficiency of 97.6% and MPPT efficiency of 99.9%, you can harness more solar power for your needs.
Energy Flexibility: Supports diesel generator input, multiple battery configurations, and up to 16 units in parallel for on-grid or off-grid applications.
Advanced Battery Management: High-voltage battery compatibility ensures efficient storage and usage, with up to 6 customisable charging/discharging periods.
Smart and Safe: Integrated with key protections including anti-islanding, surge and short-circuit protection, ensuring your system runs smoothly and safely. The Deye hybrid inverter series products support remote shutdown immediately when an accident occurs. Setting parameters and firmware updates remotely makes operations and maintenance easier.

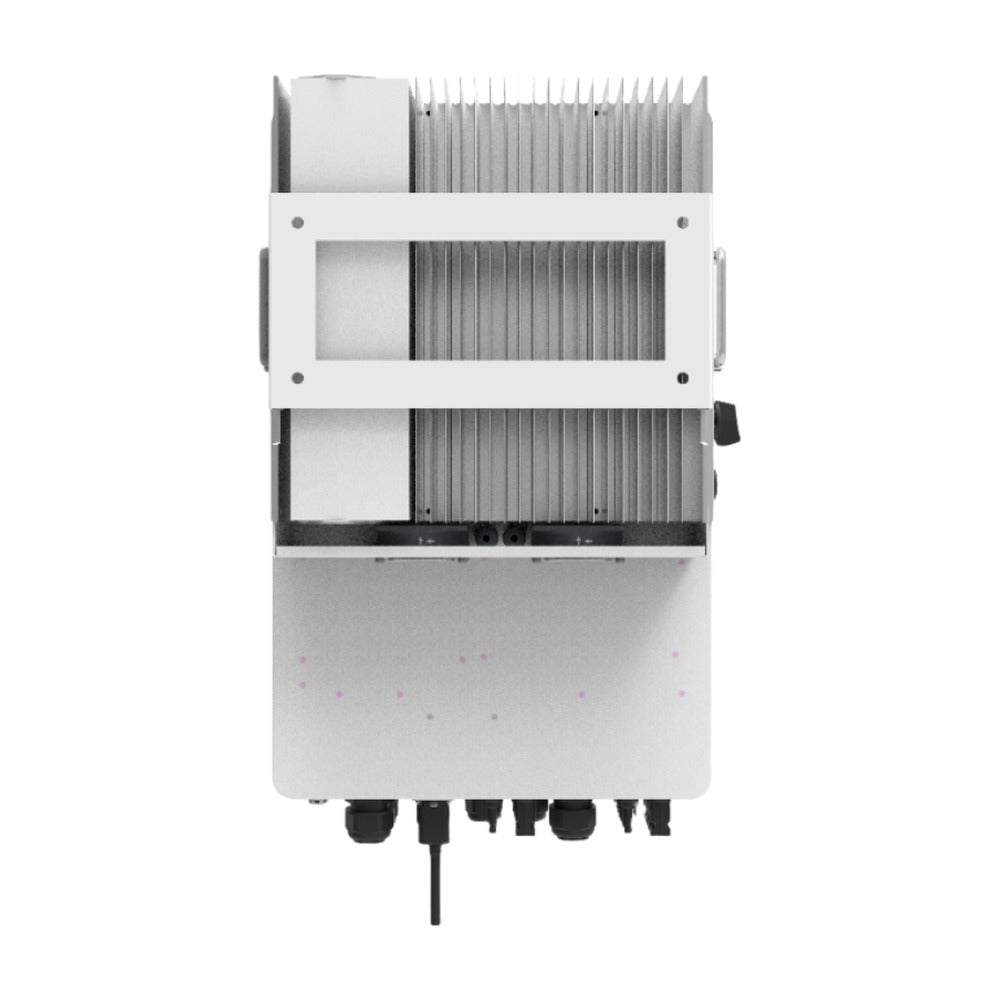

Durable Design: Rated IP65, this wall-mounted unit withstands tough environments whilst remaining quiet, with noise levels below 55 dB.
DEYE Hybrid Inverters are fully compliant with the stringent standards set by the Australian Clean Energy Council (CEC).
This compliance not only assures you of the product’s safety and efficiency but also makes it eligible for various government incentives. Their suitability to Australian conditions, coupled with the assurance of meeting national standards, makes DEYE Hybrid Inverters a smart, cost-effective choice for your energy needs.
DEYE Sun hybrid inverters are designed with a versatile second AC input that allows for innovative energy management solutions.
The 'Micro Inv Input' feature enables the Generator input port to be used as an additional input for AC coupled PV with micro-inverters; this feature is also compatible with "Grid-Tied" inverters.
The operation of this feature is linked to the battery's State of Charge (SOC). When the battery SOC is lower than a set value, the microinverter or grid-tied inverter will start to work. Conversely, when the battery SOC exceeds the set value, these inverters will shut down. The design allows for a flexible and efficient way to add a second PV array, especially in locations distant from the primary DEYE inverter setup. This enhances the overall energy management by AC coupling the second array to shorten the DC cabling.
Versatile 100% Unbalanced 3 Phase Output
Quick Specs:
- 100% unbalanced output, each phase
- AC coupled to retrofit existing solar system
-
Max. PV Input Power: 18,000W
-
Rated AC Output Power: 12,000W
-
Max. AC Output Current: 17.4A
-
PV Input Voltage: 1000 V
-
Max. Charging/Discharging Current: 37A
-
Efficiency: 97.6%
-
MPPT Efficiency: 99.9%
-
Cooling: Smart cooling
-
Noise Level: ≤55 dB
-
Dimensions: 408W x 638H x 237D mm
-
Protection Rating: IP65 (dustproof and waterproof)
-
Weight: 30.5 kg
- Operating Temperature: -40 to +60°C
Interested in starting your solar journey, but need some help in deciding what is the best system for your needs, free and without obligation?
Start by CLICKING HERE
We'll be glad to assist you, in achieving Energy Independence... Your Way.
Yep, we know... there are lots of options when buying products online.
We also believe in providing you with only the highest quality products, combined with exceptional customer service.
How You Win:
- Free shipping Australia wide on most orders
- Most competitive prices available
- Pre and after sales Technical Support
- 30 Day Easy Returns Policy
Installation of Hardwired Electrical Products
in Australia
When it comes to the installation of hardwired electrical products in Australia, it is important to be aware of the regulations and guidelines in place to ensure safety and compliance. As per the Electrical Safety Act, installations operating at ELV (Extra Low Voltage) levels of 120 VDC (Ripple Free) and below may be installed by individuals with the necessary knowledge and skills.
However, it is crucial to note that installations operating above ELV levels require the expertise of licensed electricians and experienced installers. Products falling under this category are not suitable for DIY (Do-It-Yourself) installation and must be handled by professionals. This includes, but is not limited to, DC solar arrays operating above 120 VDC and hardwired outputs of inverters and similar products converting ELV levels to AC voltage levels over 50V (such as 230V AC).
Attempting to install such products without the proper qualifications can not only compromise performance and pose a significant safety risk, but also may invalidate any manufacturer’s warranties.
At Buzz Energy Systems, we recognise the importance of reliable and efficient installations that prioritise safety, performance, and warranty compliance.
For installations that operate above ELV levels, we strongly advise against DIY installation. Instead, we recommend seeking professional assistance from licensed electricians and experienced installers to ensure the proper installation and optimal performance of such products.
Buzz Energy Systems can facilitate access to qualified tradespeople and accredited design professionals. Our network of trusted contractors ensures compliance with regulations, preservation of manufacturers’ warranties, and most importantly, your safety.
