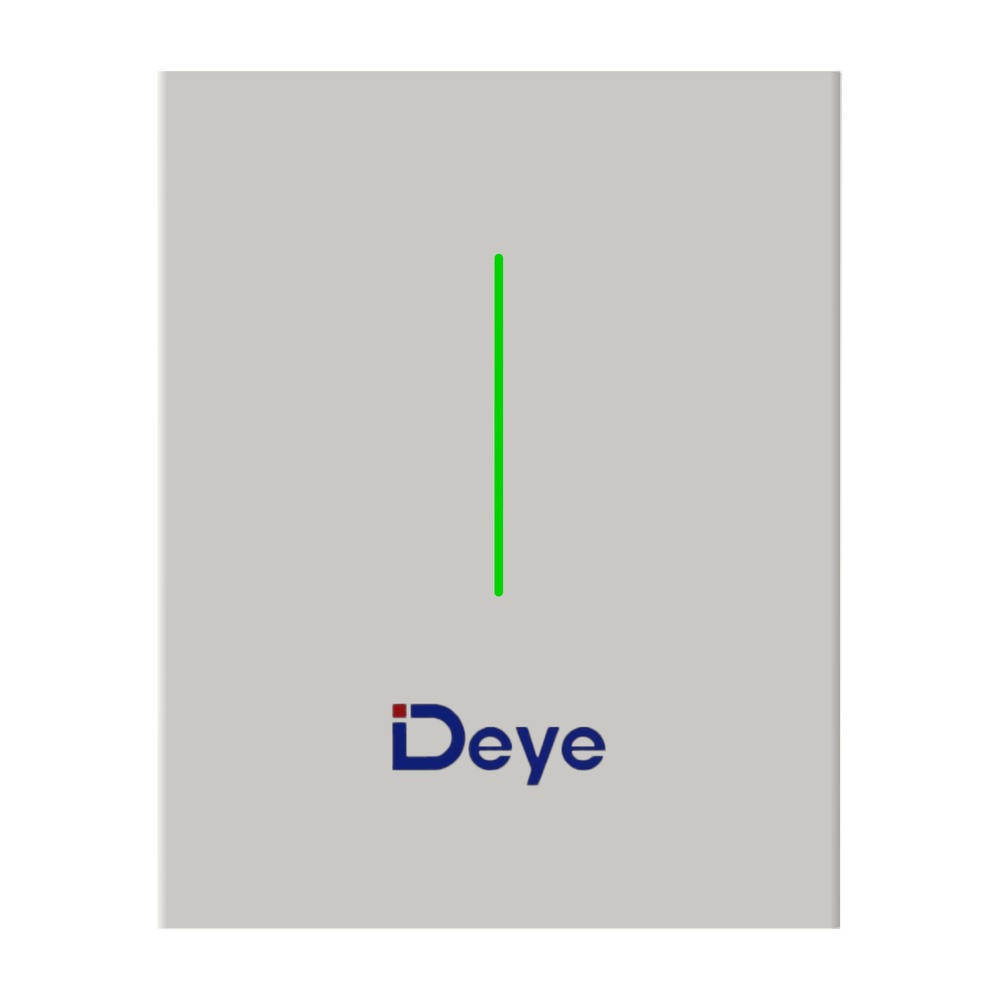

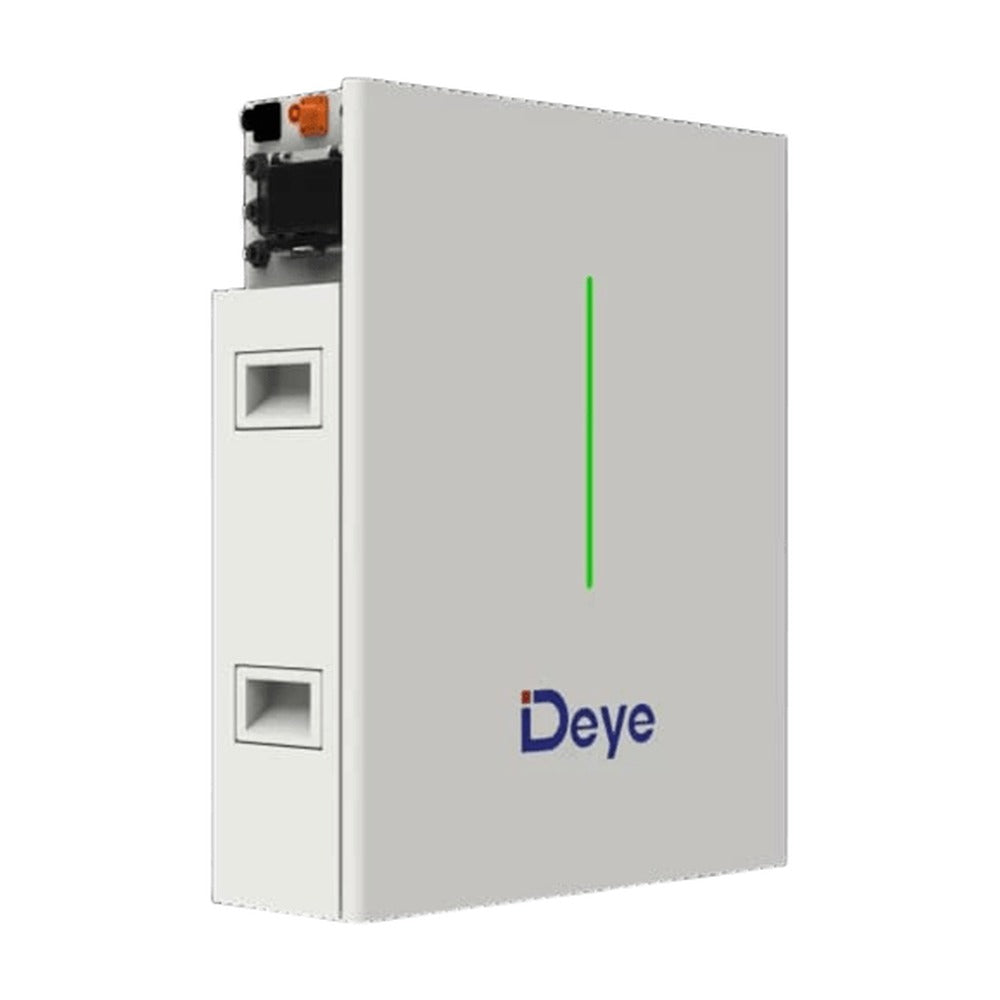

The Deye RW-F10.2 10.2kWh Lithium Iron Phosphate Battery is a reliable energy storage solution for residential and commercial use. CEC approved and featuring advanced LiFePO4 technology, it offers up to 6000 cycles at 90% Depth of Discharge (DoD) with a 10-year warranty.
The modular design allows scalability up to 32 units in parallel for a total capacity of 326kWh. With intelligent battery management, IP65 protection and seamless integration with Deye hybrid inverters, it ensures efficient and dependable energy storage in any environment.
Main Features:
Enhanced Safety: Our cobalt-free LFP chemistry offers a safer, longer-lasting battery with high energy density. The low-voltage safety connection further enhances the system's overall safety.
Exceptional Performance: The battery supports up to 1C charge and 1.2C discharge rates to deliver peak performance. It achieves an impressive 6000 cycles at 90% depth of discharge (DOD) and includes a standard 10-year warranty.
Built-in Protection: The intelligent Battery Management System (BMS) ensures comprehensive protection, while the natural cooling design, IP65 rating, and wide operating temperature range (-20°C to 55°C) guarantee reliable performance in diverse conditions.
Modular and Expandable: The modular design supports easy scalability, accommodating up to 32 units in parallel for a total capacity of 326 kWh. This adaptability suits both residential and commercial applications, helping optimise self-consumption ratios.
Environmentally Friendly: Built with eco-friendly materials, the battery is non-toxic and pollution-free, contributing to a greener future.
Versatile Installation: The flat design supports both wall-mounted (with a wall bracket) and floor-standing (with a removable base) installations, offering flexible and space-saving options.
User-Friendly: Auto-networking technology eliminates the need for DIP switch coding, simplifying installation.
Maintenance, remote monitoring, and upgrades are made easy via the Deye platform, seamlessly integrated into Deye inverters for a complete stacked system.
Technical Specifications:
-
Battery Chemistry: LiFePO4
-
Capacity: 200 A
-
Energy: 10.2 kWh (Usable: 9.2 kWh @ 90% DoD
-
Rated DC Power: 12 kW (Peak: 300A for 2 mins at 25°C)
-
Dimension (W/H/D): 600 mm x 760 mm x 200 mm (without base
-
Weight: Approx. 104 kg
-
Operating Temperature: Charge: 1～55℃ / Discharge: -20～55℃
-
Protection Level: IP65-rated enclosure
-
Storage Temperature: 0～35℃
-
Humidity: 5%～95%
-
Altitude: ≤ 3000m
-
Warranty Period: 10 years
-
Energy Throughput: 32 MWh @ 70% EOL
-
Certifications: CEC, UN38.3, IEC62619, CE, CEI 0-21, VDE2510-50
