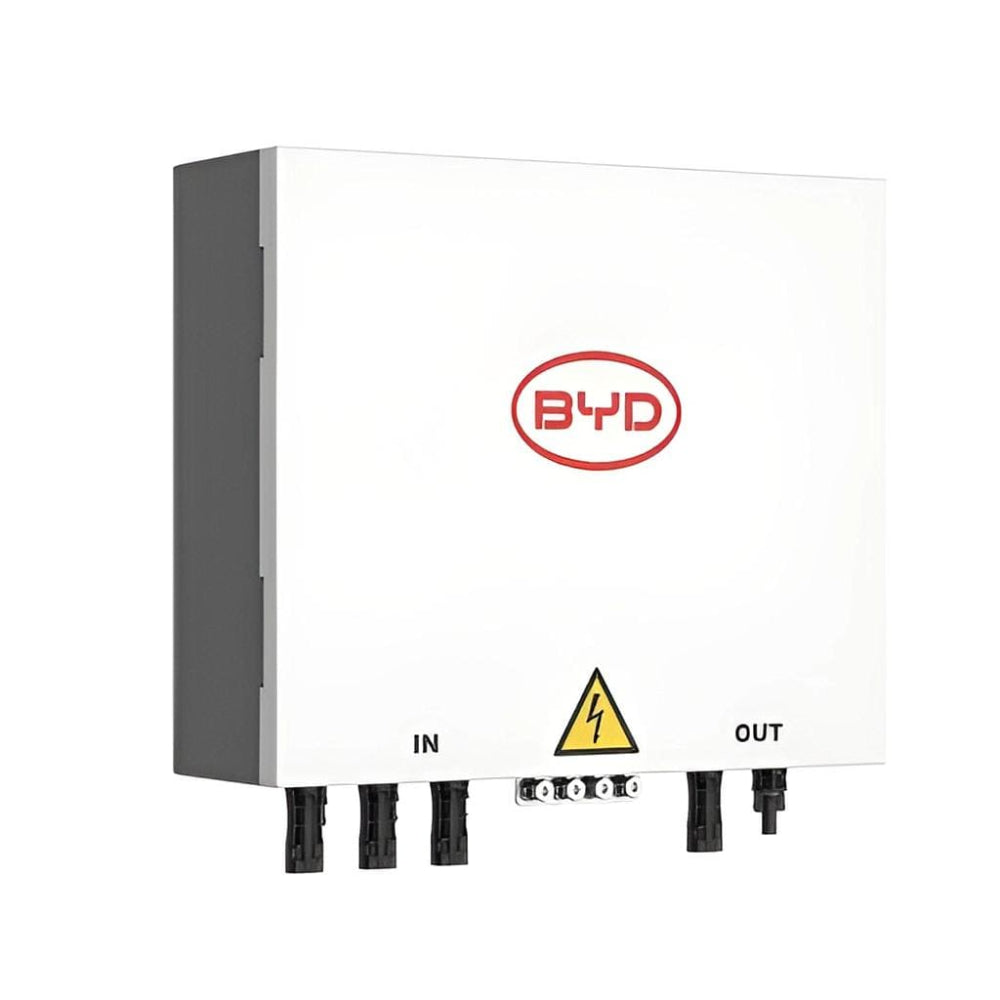

The BYD Battery-Box Combiner Box Plus is designed to simplify the parallel connection of two or three High Voltage BYD Battery-Box towers into a single connection, to a hybrid inverter.
It provides a tidy, safe and reliable solution for managing DC Battery cabling while reducing installation complexity, handling up to 70A current.
Compatible with BYD Battery-Box HVS, HVM, HVB, HVM+, HVS+, and HVE battery systems, the Combiner Box Plus supports wall-mounted installation and is built for both indoor and outdoor environments with an IP65-rated enclosure.
Main Features
Connects 2 or 3 Battery Towers – Combines multiple compatible BYD battery towers of similar capacity into a single DC output for the inverter, simplifying system wiring.
Simple & Safe Cable Management – Reduces multiple DC cable runs into one output, helping create a cleaner and more organised installation.
Broad BYD Compatibility – Supports BYD Battery-Box High Voltage battery systems when used with compatible inverters.
Built for Harsh Conditions – IP65-rated enclosure with natural cooling allows reliable operation across a wide range of temperatures.
Quick Specs
- Model: CBH-70 A
- Supports: 2–3 BYD Battery-Box towers
- Compatible Batteries: HVS, HVM, HVB, HVM+, HVS+, HVE
- Max Input Current (per tower): 50 A
- Max Output Current: 70 A
- Max Operating Voltage: 1000 V
- Installation: Wall mount
- Protection Rating: IP65
- Operating Temperature: -20°C to +50°C
- Dimensions: 350 × 300 × 114.2 mm
- Weight: 8 kg
Compatible Battery Systems
- BYD Battery-Box HVS
- BYD Battery-Box HVM
- BYD Battery-Box HVB
- BYD Battery-Box HVM+
- BYD Battery-Box HVS+
- BYD Battery-Box HVE
