5kW Deye equipped Hybrid SkyBox is now available at Buzz Energy.
Perfect for powering a Tiny Home, Commercial site
or for Clean, Silent Home Power Backup applications.

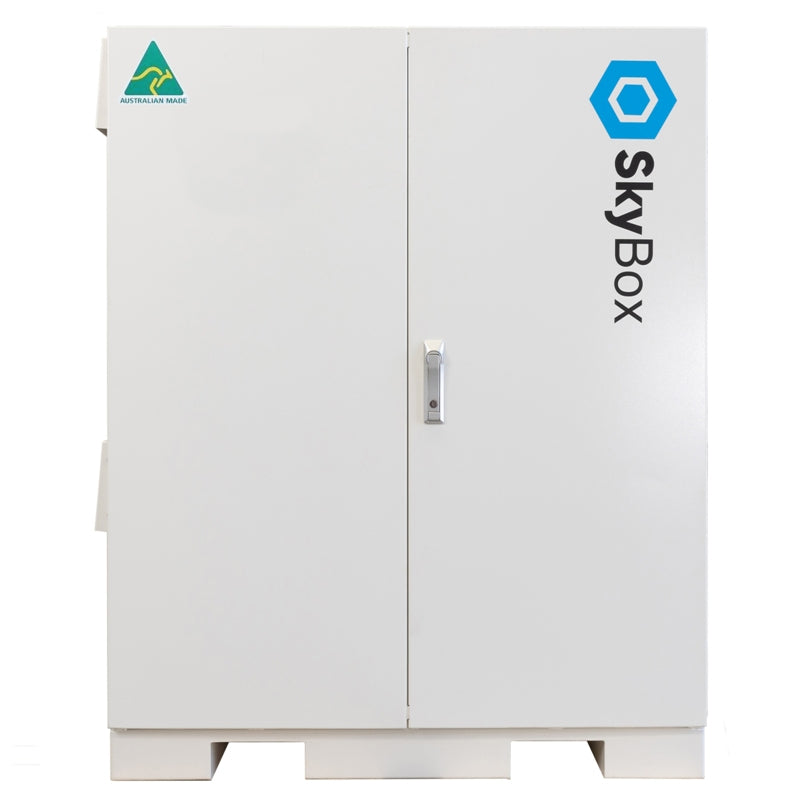

The Sky Energy Hybrid Skybox 5kW Hybrid is a self-contained Deye-equipped, Energy Storage System (ESS) designed for On or Off Grid applications. It is housed in a custom weatherproof enclosure and has a 10-year warranty It was designed and manufactured right here in Australia.
Built using CEC-approved components, eligible for Small-scale Technology Certificate (STC) rebates, to save you even more!
YES, we can install it for you!
Please Contact Us to discuss your particular project.
Don't let a Blackout leave you in the dark.

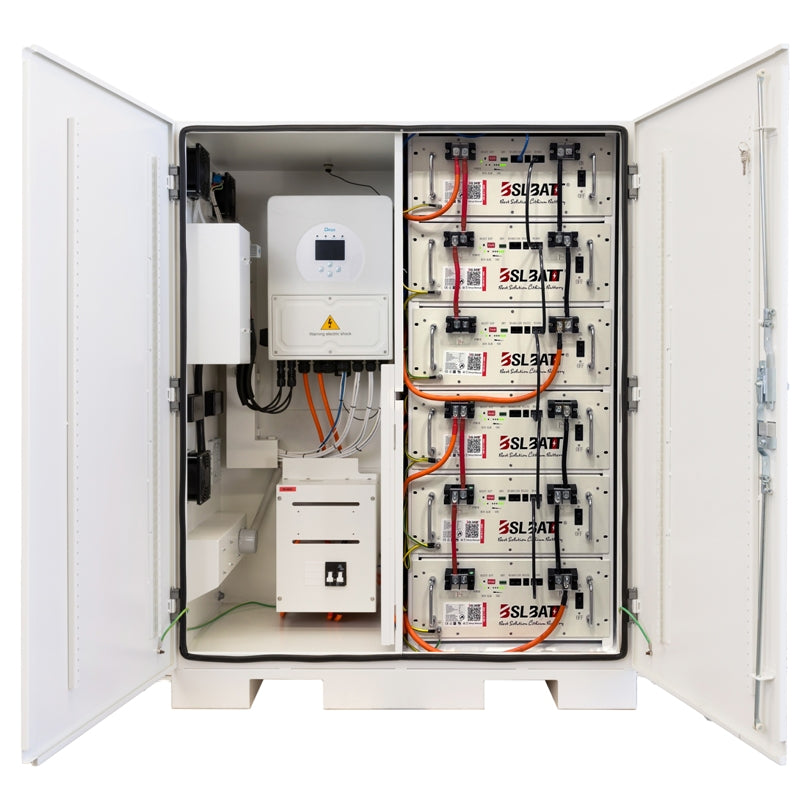

Equipped with the powerful and feature-packed Deye SUN-5K-SG04LP1-AU Hybrid Inverter, the Skybox 5kW Hybrid Power System Cabinet can power you from Solar, Charge Batteries and take over the supply to the connected loads in a grid failure or when generator power is disconnected. This happens so fast (less than 10 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

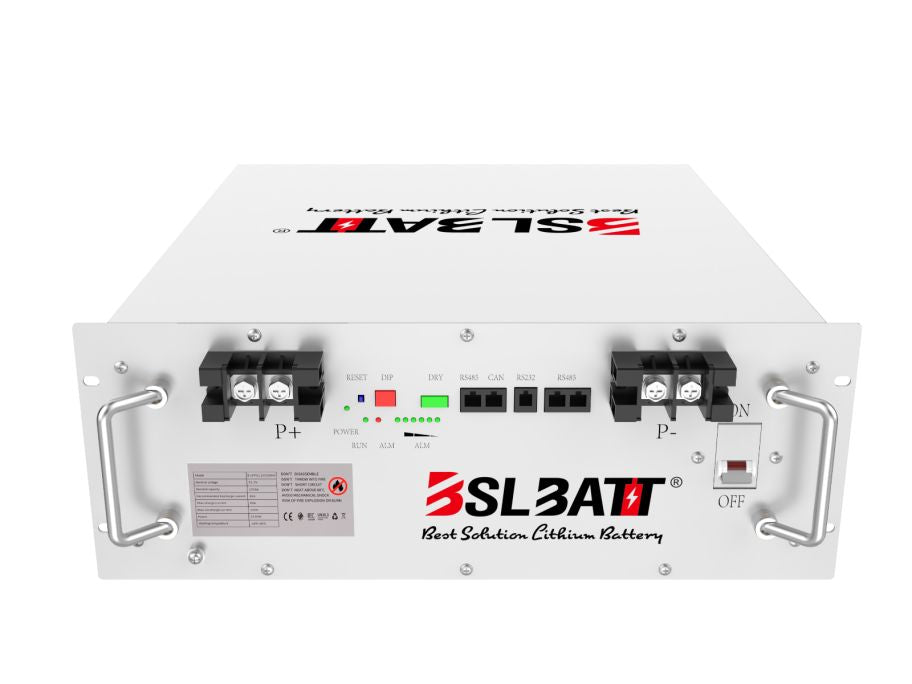

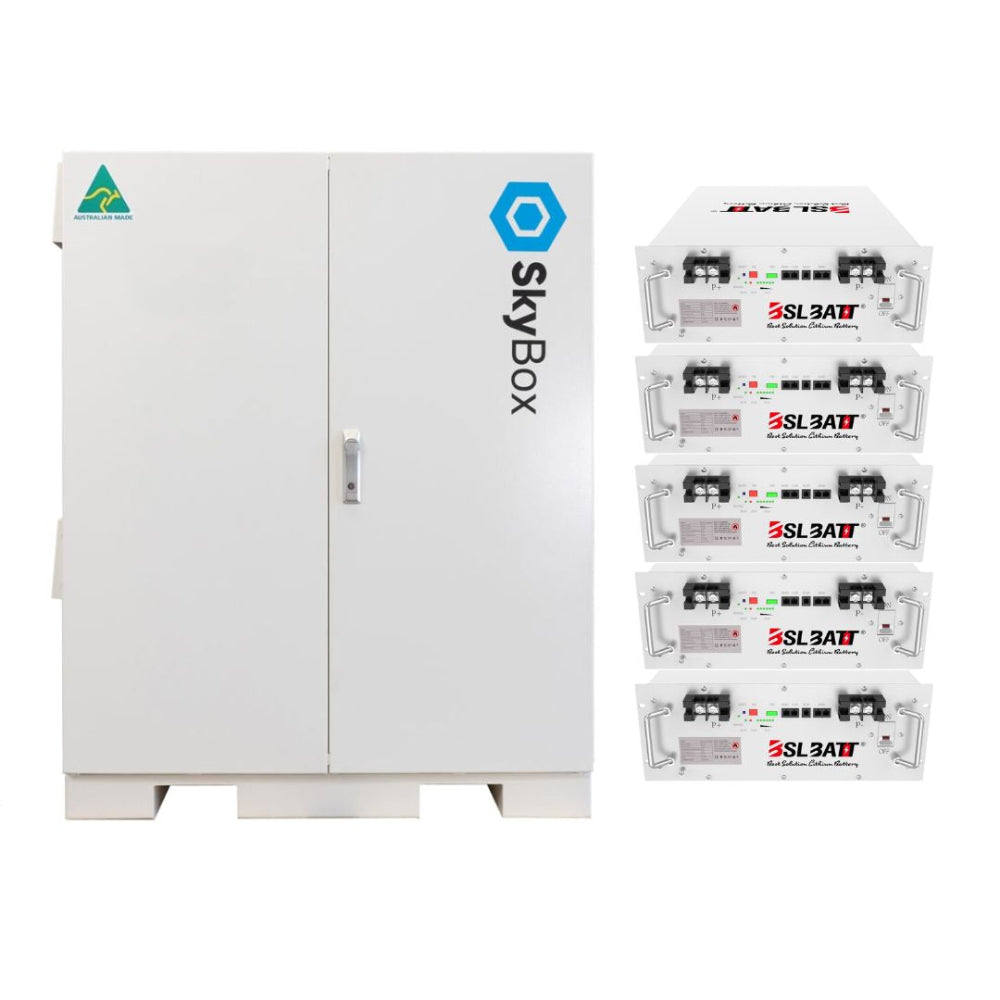

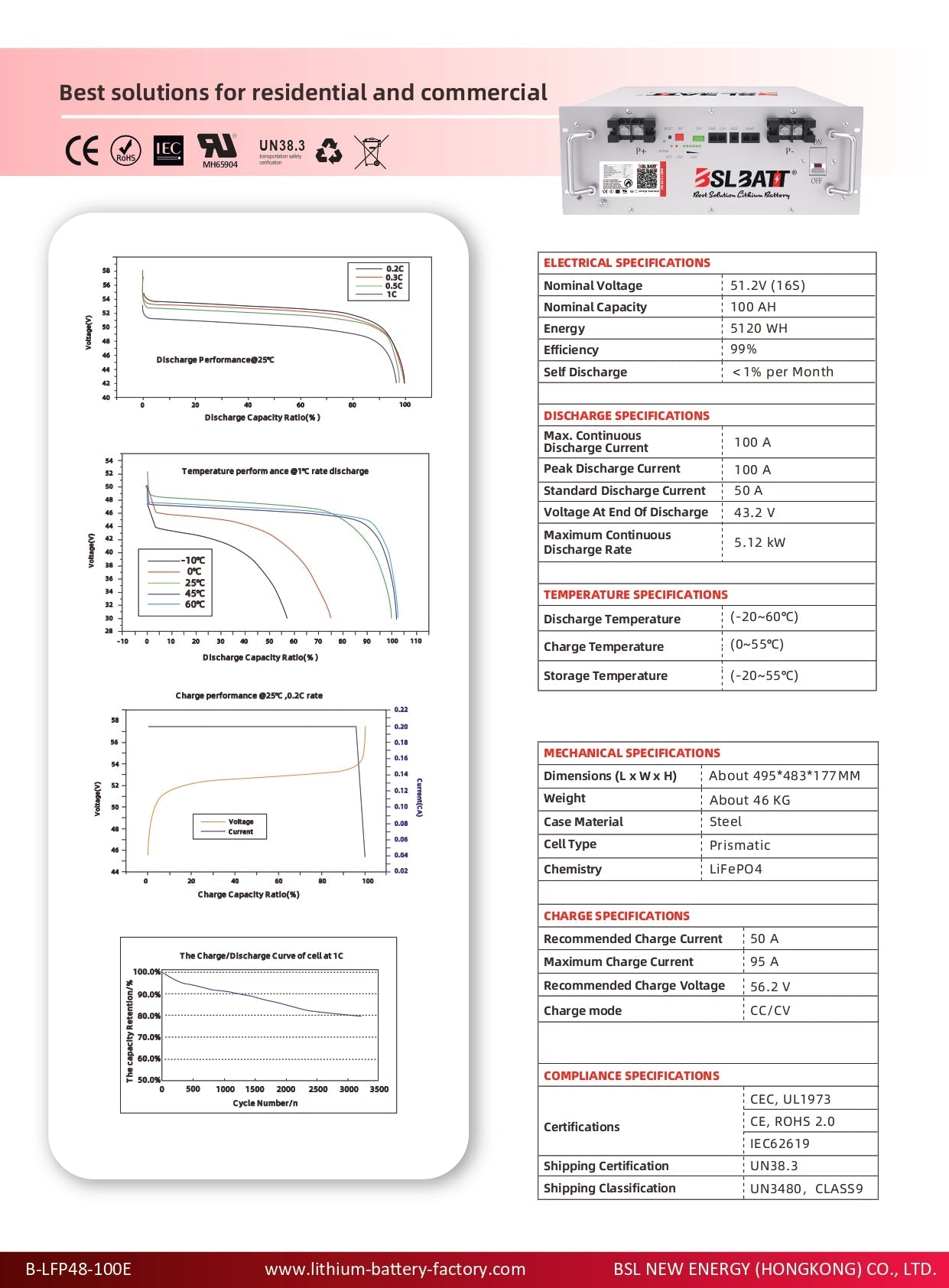

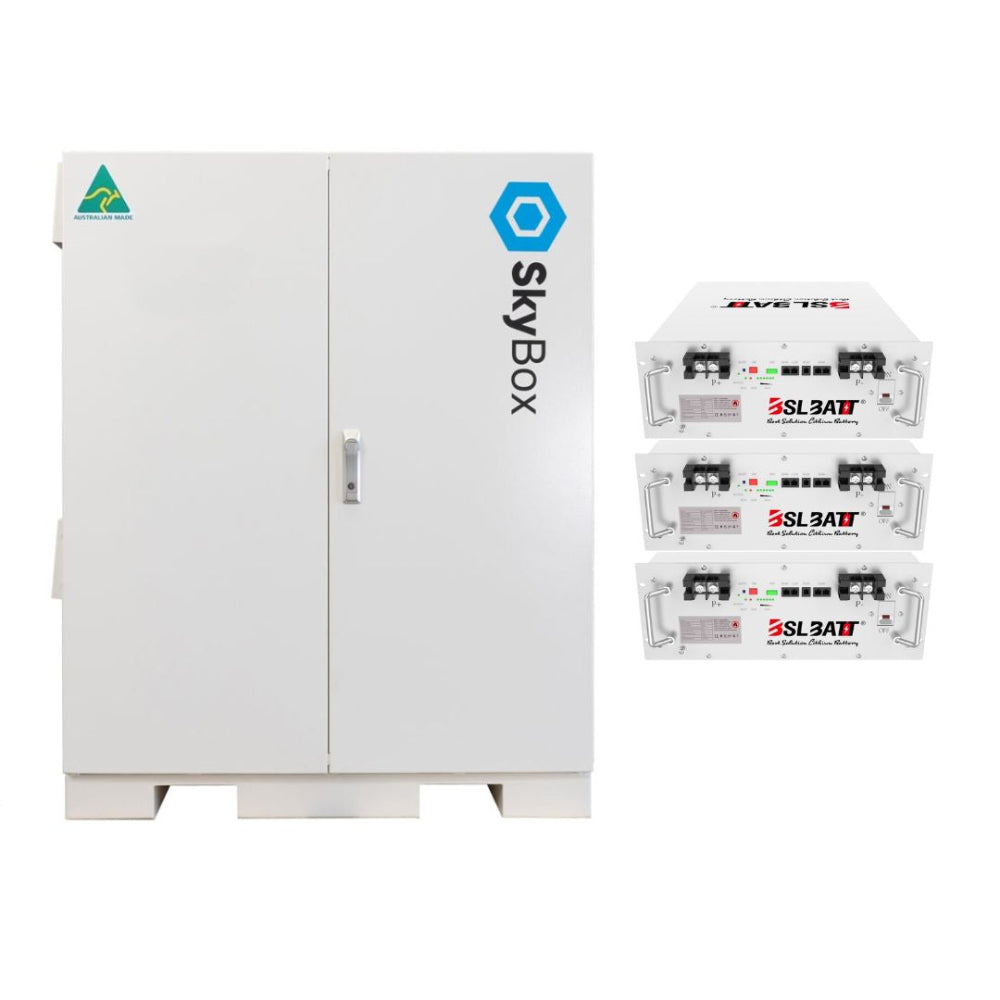

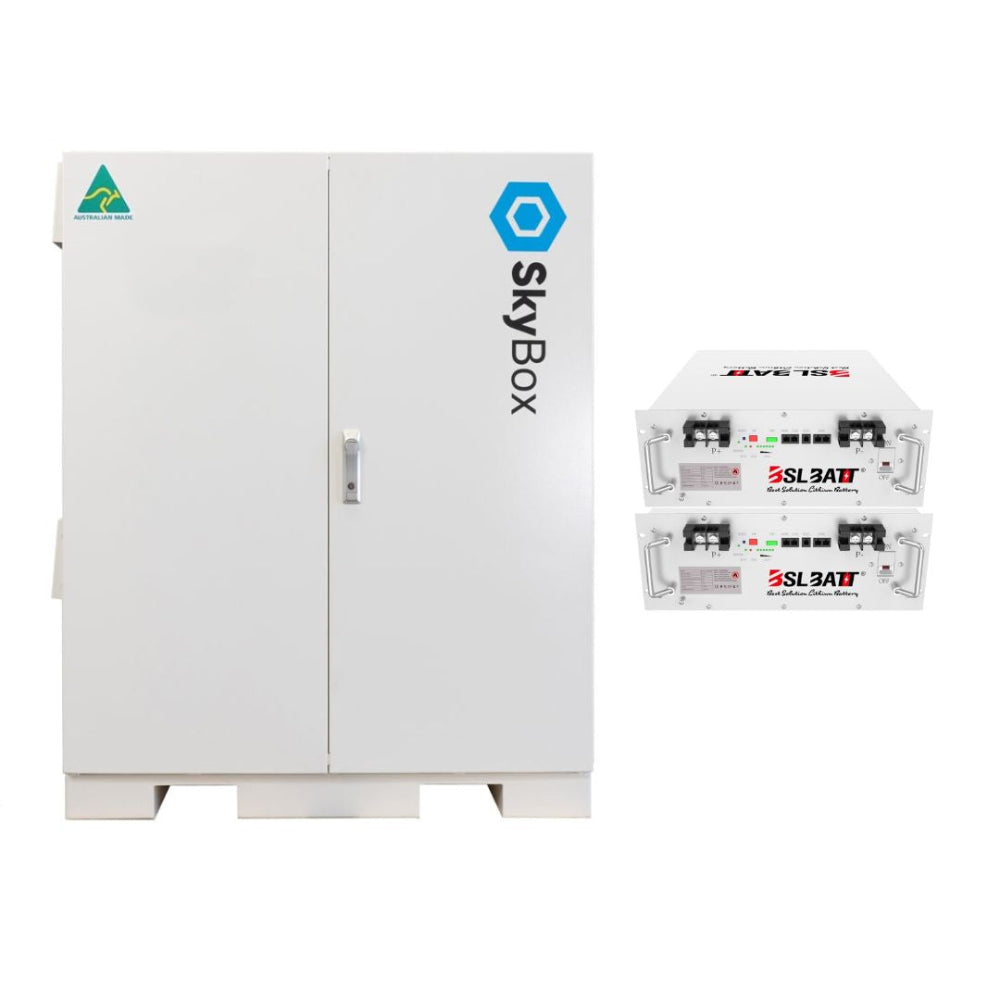

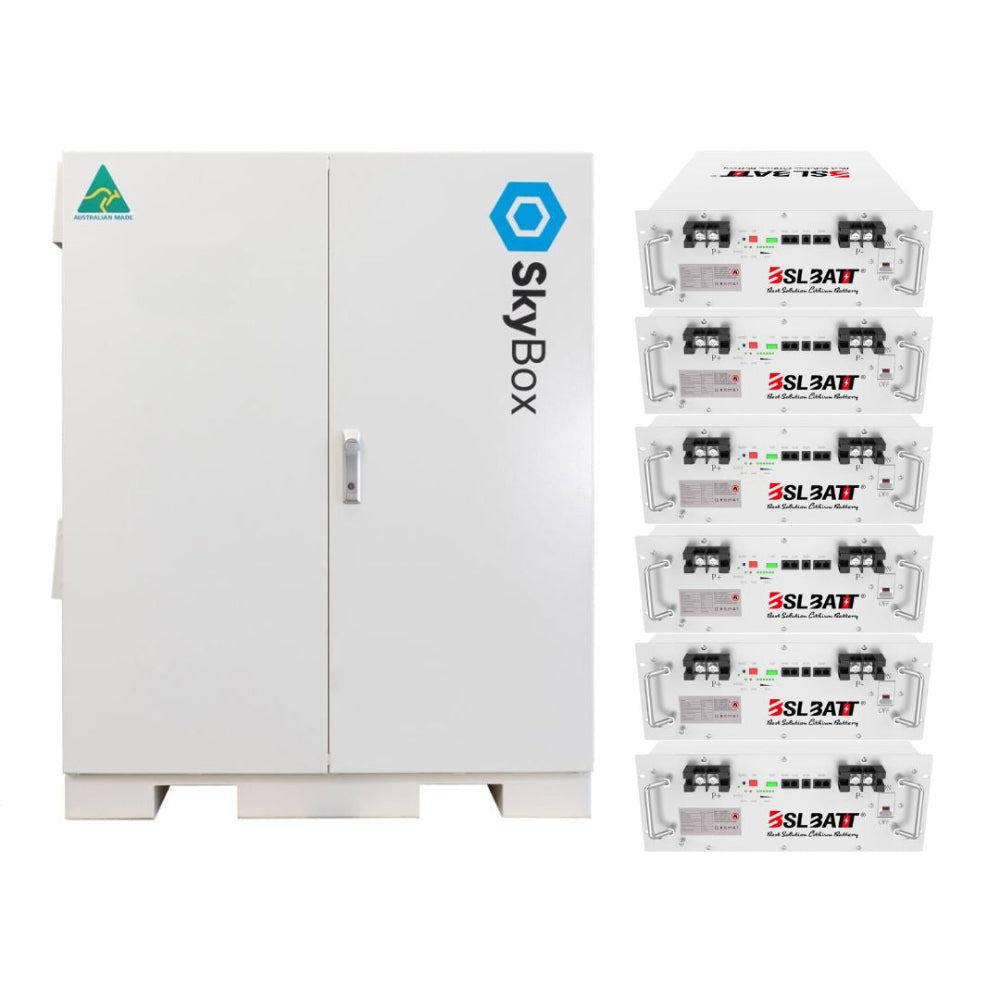

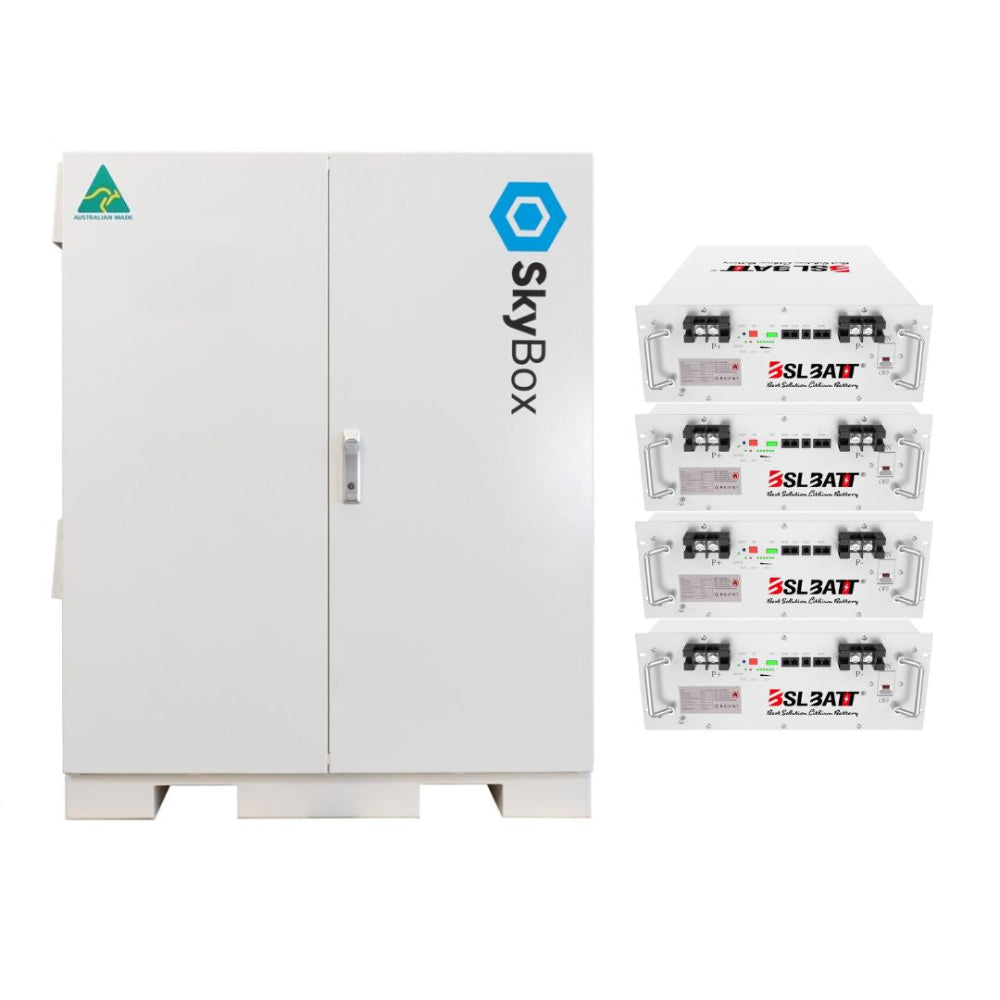

Select storage capacity from the Drop-down menu, up to 6 x BSL B-LFP48-100E 48v 5.12 kWh Server Rack Battery modules per Skybox.
Check out more by viewing the Skybox Hybrid brochure Here
Please Note:
Batteries are optional and will be supplied with inverter and charger settings,
pre-programmed at our factory, for a quick and easy installation process on-site by your Qualified Electrician or CEC-endorsed Solar Installer. This product is NOT designed for DIY.
Skybox is built to order with a Lead time of approx 1-2 weeks.
Free shipping to Capital City Business addresses with unloading facilities.
Please contact us for information regarding freight options.
SkyBox manages the incoming power from your solar, wind or hydro generators, balancing these power sources and storing excess energy in the internal batteries.
Since any electrician can install it, you can save thousands compared to installing a custom off-grid solar system through an off-grid installer or provider.
The SkyBox is designed for both indoor and outdoor use and provides enormous battery capacity in one cabinet. Because of this, you can enjoy all the luxury of being on the grid whilst being off the grid! When you want to expand, simply add more batteries to suit your storage requirements.
With each Skybox, a consultation will be provided to determine the requirements for battery storage and Solar PV capacity to suit this system. We recommend completing a load sheet for connected circuits and appliances to determine the required capacities.
Buzz Energy Systems is here to help you make an informed choice;
Get in touch with us here to discuss the right SkyBox solution.
Features:
- CEC-approved components for On or Off Grid Use, eligible for STC rebates.
- Up to 16 Hybrid SkyBoxes can operate in parallel to achieve a higher power output.
16 units, for example, will provide 128 kW output power with 3040 Amps battery charging/discharging capacity (Based on an 8kW model).

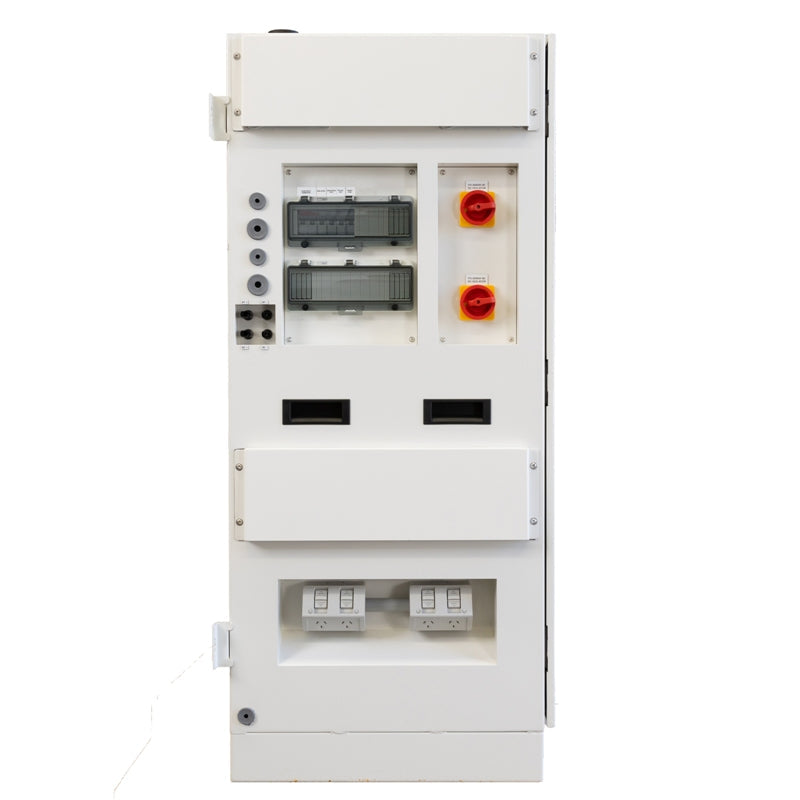

- External switchboard. This makes it easier to wire AC connections, including AC out and AC in (generator input). There is no longer a need for connections through the cabinet.
- Manual changeover switch. If the inverter fails, it can be bypassed to operate off the generator until a technician arrives to fix it.
- External DC isolators pre-installed.
- Generator Auto start contacts on the external switchboard. This allows for easier access and wiring.
- Remote monitoring Via Wifi included
- Fans have been upgraded on all models for better cooling of the components.
- All SkyBox cabinets have a Factory Acceptance Test before being shipped to the site.
Interested in starting your solar journey, but need some help in deciding what is the best system for your needs, free and without obligation?
Start by CLICKING HERE
We'll be glad to assist you, in achieving Energy Independence... Your Way.
Yep, we know... there are lots of options when buying products online.
We also believe in providing you with only the highest quality products, combined with exceptional customer service.
How You Win:
- Free shipping Australia wide on most orders
- Most competitive prices available
- Pre and after sales Technical Support
- 30 Day Easy Returns Policy
Installation of Hardwired Electrical Products
in Australia
When it comes to the installation of hardwired electrical products in Australia, it is important to be aware of the regulations and guidelines in place to ensure safety and compliance. As per the Electrical Safety Act, installations operating at ELV (Extra Low Voltage) levels of 120 VDC (Ripple Free) and below may be installed by individuals with the necessary knowledge and skills.
However, it is crucial to note that installations operating above ELV levels require the expertise of licensed electricians and experienced installers. Products falling under this category are not suitable for DIY (Do-It-Yourself) installation and must be handled by professionals. This includes, but is not limited to, DC solar arrays operating above 120 VDC and hardwired outputs of inverters and similar products converting ELV levels to AC voltage levels over 50V (such as 230V AC).
Attempting to install such products without the proper qualifications can not only compromise performance and pose a significant safety risk, but also may invalidate any manufacturer’s warranties.
At Buzz Energy Systems, we recognise the importance of reliable and efficient installations that prioritise safety, performance, and warranty compliance.
For installations that operate above ELV levels, we strongly advise against DIY installation. Instead, we recommend seeking professional assistance from licensed electricians and experienced installers to ensure the proper installation and optimal performance of such products.
Buzz Energy Systems can facilitate access to qualified tradespeople and accredited design professionals. Our network of trusted contractors ensures compliance with regulations, preservation of manufacturers’ warranties, and most importantly, your safety.
