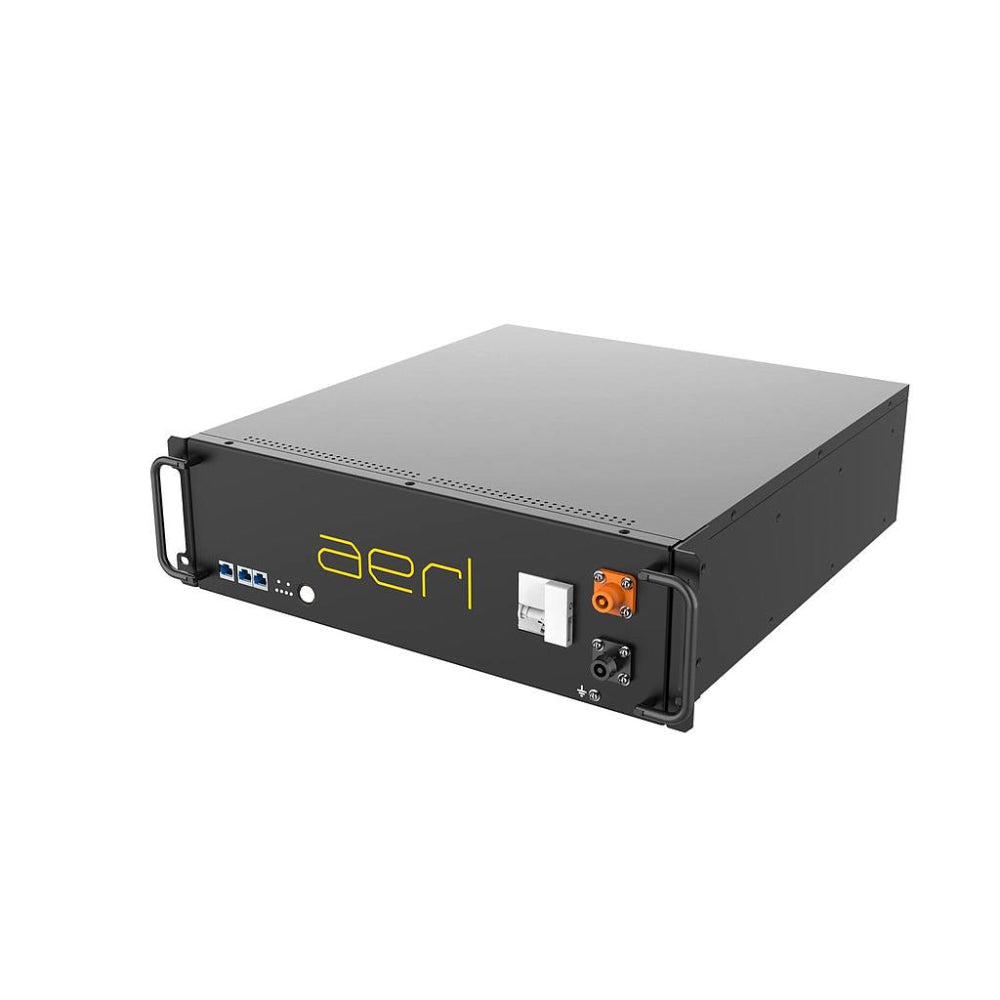

The AERL LiFe2-5120S uses advanced LiFePO4 prismatic cells ensuring long-lasting performance, safety and is designed to deliver reliable power, even in the harshest and toughest Australian conditions
The AERL LiFe2 system offers a flexible, installer-friendly solution with hot-swappable modules that can be replaced without downtime, operating seamlessly in either Managed or Self-Managed modes. It's advanced battery management includes an industry-first automatic fallback to Self-Management if communication with the inverter is lost. For added convenience, pre-wired cabinet options (6 or 10 module capacity) feature quick plug-and-play connections, significantly reducing installation time.
Select the quantity of modules, along with your choice of cabinet from the drop down menu.
Please Note: These are heavy items with shipping on a pallet to nearest freight depot or unloading facilities required, otherwise tailgate fees may apply. Freight is calculated by location and components required; please Contact us to discuss the most cost effective, reliable shipping option to your address.
Main Features:
Unmatched Reliability: Experience uninterrupted power with the industry-first Automatic Fallback to Self-Management, which keeps your system running smoothly, even if communication is lost with inverters.

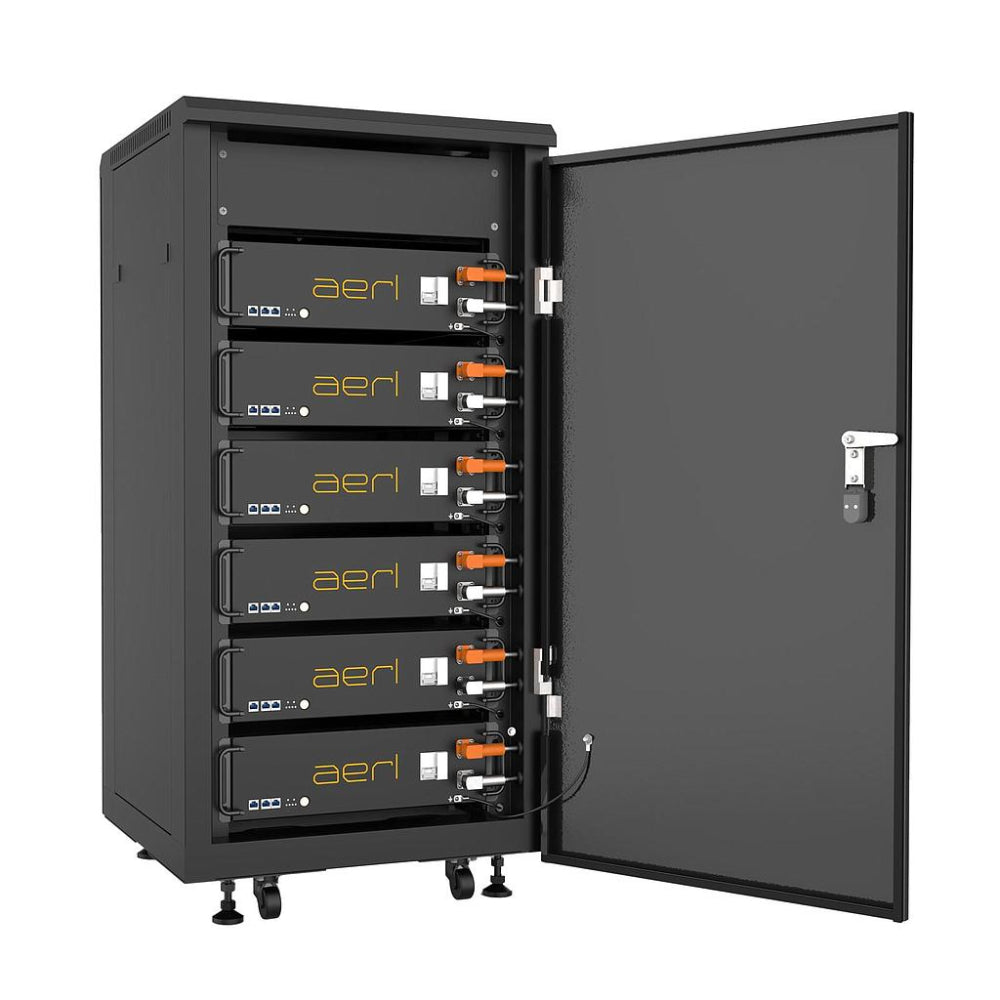

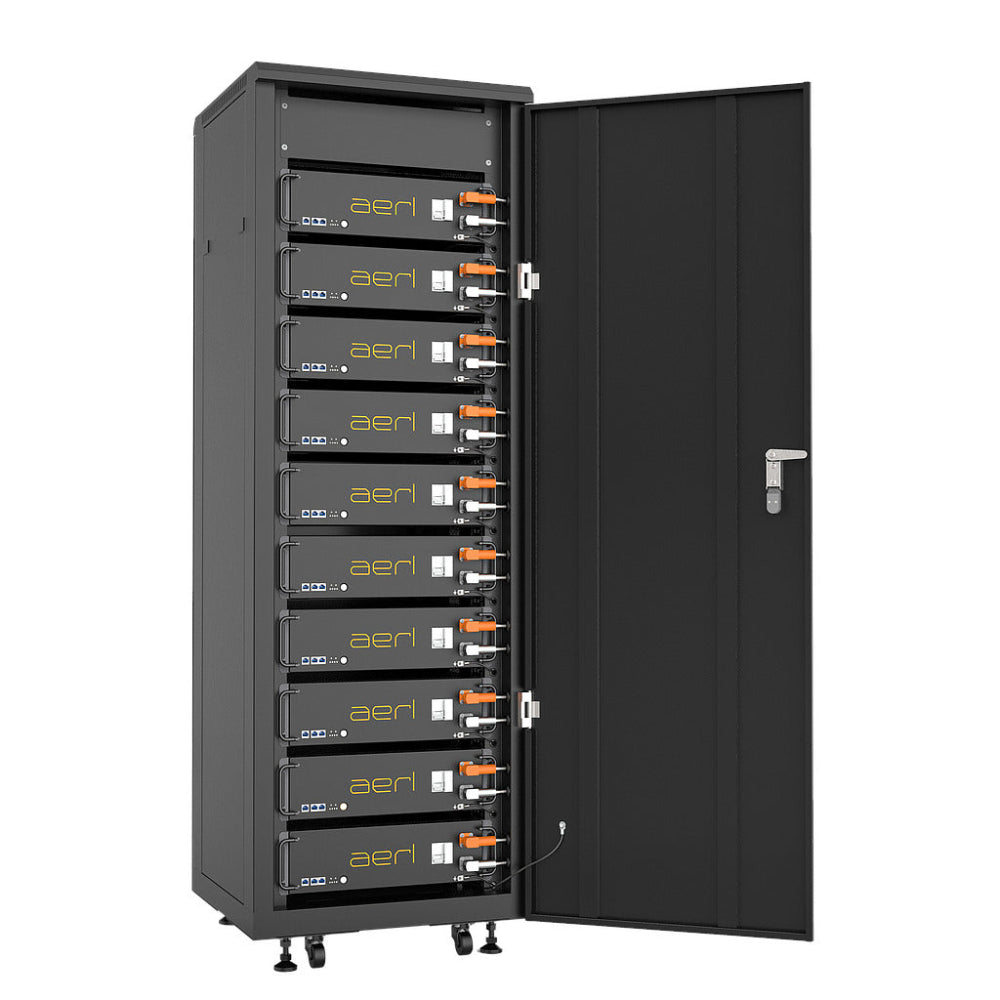

Modern, Sleek Storage: Expandable and securely housed in the specially designed 6 or 10 module cabinets.
Effortless Scalability: Whether you need a small or large setup, the LiFe2- 5120 offers easy expansion with up to 64 batteries connected in parallel, thanks to its plug-and-play design
Hassle-Free Installation: Save time with quick, plug-and-play connections, and enjoy the convenience of hot-swappable modules that can be replaced without any system downtime and interruptions.
Compatibility: Operates with both managed and self managed inverter systems.
Remote Monitoring: Stay in control from anywhere with XESS LINK, which allows you to monitor performance and manage your system remotely.
Built for Tough Environments: Designed for durability, the XESS ION 5120 performs reliably in a wide range of temperatures, making it ideal for challenging climates here in Australia.
Quick Specs:
• Model: LiFe2-5120S
• Nominal Voltage: 51.2 V DC
• Energy Capacity: 5.12 kWh / 100 Ah
• Voltage Range: 40.8 V – 58.4 V DC
• Max Continuous Discharge Power: 5.12 kW (1C)
• Peak Discharge Power: 10.24 kW (200 A for 5s)
• Max Continuous Charge/Discharge Current: 100 A
• Peak Charge Current: 200 A
• Depth of Discharge: Up to 100%
• Cell Chemistry: LiFePO4 (Prismatic)
• Cooling: Natural convection
• Operating Temperature (Managed): Charge: -10°C to 50°C / Discharge: -20°C to 50°C
• Operating Temperature (Self-Managed): Charge: 0°C to 50°C / Discharge: -5°C to 50°C
• Efficiency: >96%
• Communications: CAN 2.0A / RS485
• Scalability: Up to 64 units in parallel
• IP Rating: IP40
• Weight: 44 kg
• Dimensions (W x D x H): 440 x 134 x 480 mm
• Integrated Protection: 1-pole 125A 80V DC breaker, BMS with over/under-voltage and over-temp cut-offs
• Certifications:
• Cell: UL1973, UL9540A, IEC62619:2022, UN38.3
• Pack: IEC62619:2022, IEC62040, UN38.3, CE
• Warranty: 5 + 5 years (conditions apply)
